Đồng hồ vạn năng Fluke, Fluke F287C/F289C/F287FVF/F289FVF Multimeter FLUKE287C/FLUKE289C

  • Đăng ngày 08-11-2018 11:47:28 PM - 1061 Lượt xem
  • Mã sản phẩm: F287C/F289C/F287FVF/F289FVF

  • Tình trạng sản phẩm:


    Fluke 287C True RMS Electronic Recording Multimeter

    The Fluke 287C True RMS Electronic Recording Multimeter with trend capture quickly records design performance and graphically displays what is happening. With its unique recording and graphics capabilities, users no longer have to download recorded readings to a PC to analyze trends. The Fluke 287C combines unprecedented precision and ease of use for handheld multimeters, greatly improving the user's ability to solve problems. It is the ultimate handheld measurement tool for demanding applications where high precision is required .
    The Fluke 287/CN True RMS Electronic Recording Multimeter with trend capture quickly records design performance and graphically displays what is happening. With its unique recording and graphics capabilities, users no longer have to download recorded readings to a PC to analyze trends. The Fluke 287/CN combines unprecedented precision and ease of use for handheld multimeters, greatly improving the user's ability to solve problems. It is the ultimate handheld measurement tool for demanding applications where high precision is required.

    Fluke 289C True RMS Industrial Recording Multimeter

    Observing the autumn, anti-micro-duration. Industrial instrumentation for demanding users. New diagnostics that maximize plant productivity. The new 289C is a new generation of high-performance industrial recording multimeters that easily solve complex problems in electronics, factory automation, power distribution, and electrical engineering equipment. Because data can be recorded and viewed graphically on the screen, it is easy for users to quickly resolve problems and help minimize downtime. Buy the new 289C as soon as possible and use it as a monitoring device for your system or process when you are busy solving other problems.
    Observing the autumn, anti-micro-duration.
    New diagnostics that maximize plant productivity. The new 289/CN is a new generation of high-performance industrial recording multimeters that easily solve complex problems in electronics, factory automation, power distribution, and electrical engineering equipment. Because data can be recorded and viewed graphically on the screen, it is easy for users to quickly resolve problems and help minimize downtime. Buy the new 289/CN as soon as possible and use it as a monitoring device for your system or process when you are busy solving other problems.

    Industrial instrumentation for demanding users.
    F287C product features

    • Easy to view - large 1/4 VGA bright backlit display
    • Easy to use - With the navigation buttons provided by the 287C, you can easily select a menu item or browse through a variety of information. With the help button , you can instantly display help information about the current function on the display.
    • 4.5-bit high resolution, 50,000 counts, basic DC voltage accuracy of 0.025 %
    • AC bandwidth up to 100Khz
    • With 29 measurement capabilities - for any test, research and development or maintenance application, including: frequency (Hz, kHz) resistance, diode testing, continuity testing, capacitance, current, relative value measurement (REL), peak, Peak factor and temperature

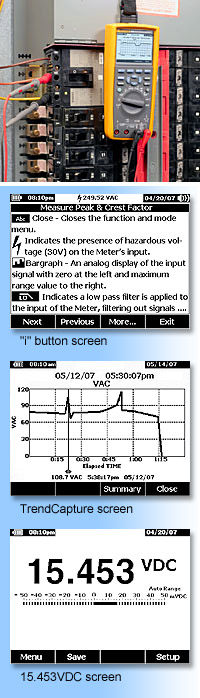

    • The TrendCapture feature allows users to record measured data in graphical trends and display time intervals and event data so users can quickly learn about signal dynamics such as drift and glitches.
    • The storage logging feature is used for unattended monitoring of signals over time. Store up to 10,000 readings over time and save the results of multiple stored records before you need to download to a PC.
    • With the centered analog scale in DC measurements, fluctuations in measured values ​​can be identified more quickly than digital displays.
    • Capable of measuring distorted waveforms – Measurement techniques used in the 287C for independent RMS measurements (TRMS AC and AC+DC, AC DC, DC AC voltage and current)
    • The minimum/maximum/average record with time stamp tells the user how much interference






    F289C product features

    • New – Oversized 50,000 count, 1⁄4 VGA display with white backlight.Multiple sets of measurement information can be displayed at the same time.
    • New - Recording multimeters with trend capture are an indispensable tool for not only recording the user's design, process or system performance, but also unattended monitoring while the user is busy with other work items. It can store up to 10,000 readings and draw measurement data into a single line to help detect anomalies in the signal over time. With onboard trend capture, users can graphically view recorded readings without using a PC. (Optional software and interface tables).
    • New – continuously records multiple processes or data for more than 200 hours. This is useful for determining the characteristics of design performance or performing unattended monitoring.

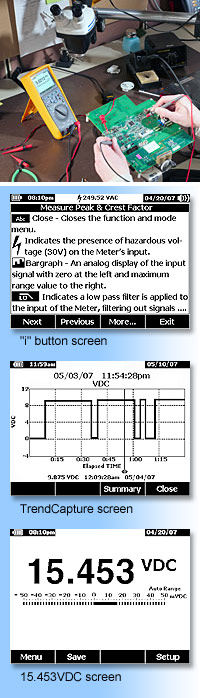

    • New - "i information button onboard help screen helps users understand the measurement function. Not sure about a function? Just go to the function and press the "i button."
    • New – LoZ Volt. The low impedance voltage feature prevents false readings caused by phantom voltages. In addition, it is also the recommended mode for testing whether it is powered.
    • New – Low-pass filters accurately measure voltage and frequency on variable speed motor drives or other electronic signal-to-noise devices.
    • 50 ohm range – suitable for measuring and comparing motor winding resistance, low resistance measurements or other contact resistance differences. The two terminals have a 50 ohm range with a resolution of 1 milliohm and a source current of 10 mA.
    • New – saved measurements allow you to name and recall data measured in the field
    • Real Time Clock – automatically time stamps for saved readings
    • New - on-site upgradeable and scalable instrumentation allows users to get new features at any time, keeping the meter up-to-date
    • Events and trending records - help eliminate intermittent problems or monitor load.
    • New - multilingual interface
    • Soft keys, scroll buttons, and convenient navigation controls make it easy to access secondary features. In addition, you can create a custom display.
    • 0.025% basic DC accuracy
    • 100 kHz AC bandwidth
    • True RMS AC voltage and current ensure accurate measurement of complex signals or non-linear loads.
    • Can measure currents up to 10A (20 A for 30 seconds; 10A, continuous measurement)
    • 100 mF capacity range
    • Temperature function
    • Relative mode eliminates test line impedance present during low resistance or capacitance measurements
    • Peak capture capability, recording transient signals up to 250 μs
    • High performance test leads and alligator clips included
    • The optical USB PC communication interface allows easy PC downloads using FVF software (not included) to archive recorded data.
    • The browse button allows the user to quickly select menu options and browse information screens
    • Memory can record up to 200 hours of data independently
    • Easily save your favorite measurement settings
    • Connectivity / Conductivity / Capacitance

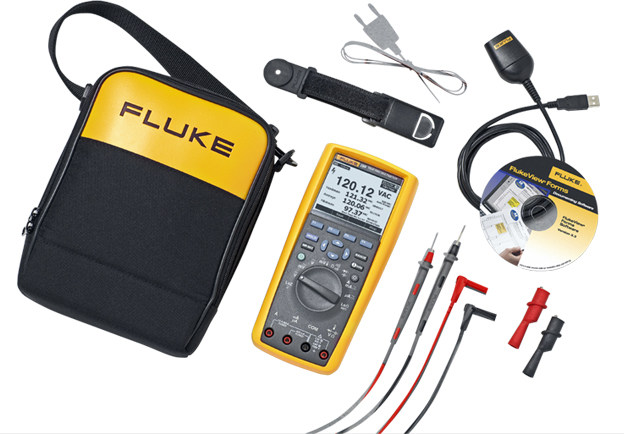

    F287FVF kit combination:
    • 287C digital multimeter
    • FlukeView Forms software and cables
    • 80BK-A thermocouple probe
    • TL71 test line pair
    • AC72 alligator clip
    • C280 soft case

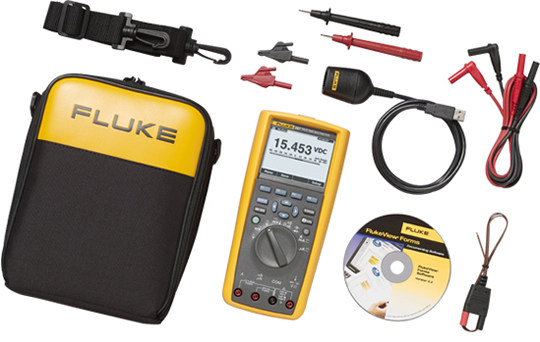

    F289FVF kit combination:
    • 289C digital multimeter
    • FlukeView Forms software and cables
    • 80BK-A thermocouple probe
    • TL71 test line pair
    • AC72 alligator clip
    • TPAK magnetic instrument hook
    • C280 soft case


    Technical parameters (FLUKE 287C)
    Technical indicators
    DC voltage
    Accuracy  0.025 %
    Range and resolution  50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V
    AC voltage
    Accuracy  0.4% (true RMS)
    Range and resolution  50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V
    DC
    Accuracy  0,15%
    Range and resolution  500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
    Alternating current
    Accuracy  0.7 % (true RMS)
    Range and resolution  500.00 μA, 5000.0 μA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A
    Temperature (without probe)
    Accuracy  1.0 %
    Range and resolution  -200.0 °C to 1090.0 °C (-328.0 °F to 1994.0 °F)
    resistance
    Accuracy  0.05%
    Range and resolution  500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 500.00 kΩ, 5.0000 MΩ, 50.00 MΩ, 500.0 MΩ
    capacitance
    Accuracy  1.0 %
    Range and resolution  1.000 nF, 10.00 nF 100.0 nF, 1.000 μF, 10.00 μF, 100.0 μF, 1000 μF, 10.00 mF, 100.00 mF Ω
    frequency
    Accuracy  0.005% + 1
    Range and resolution  999.99 kHz
    Additional features/features
    Multiple screen displays  Yes
    True rms ac bandwidth  100 kHz
    DBV/dBm  Yes
    Conductivity  50.00nS
    On-off buzzer  Yes
    Temperature (°C & °F)  -200°C to 1090°C
    Battery/fuse disassembly  Battery/fuse
