Máy hiệu chuẩn áp suất Fluke, Fluke F717/F718/F719/F719Pro, pressure calibrator FLUKE718/719 pressure calibrator
  • Máy hiệu chuẩn áp suất Fluke, Fluke F717/F718/F719/F719Pro, pressure calibrator FLUKE718/719 pressure calibrator

Máy hiệu chuẩn áp suất Fluke, Fluke F717/F718/F719/F719Pro, pressure calibrator FLUKE718/719 pressure calibrator

  • Đăng ngày 09-11-2018 12:56:59 AM - 1058 Lượt xem
  • Mã sản phẩm: Fluke F717/F718/F719/F719Pro

    • Tình trạng sản phẩm:


    Fluke 717 Series Pressure Calibrator | Pressure Calibrator

    The Fluke 717 Pressure Calibrator delivers exceptional performance, exceptional durability and exceptional reliability. These calibrators are lightweight, easy to carry. Because the button interface is similar to the versatile Fluke 740 Series Process Certified Calibrator, the 717 Series is very easy to use.The 717 Series is immune to electromagnetic interference, dust and dirt, and comes with a detachable battery cover for quick and easy battery replacement.
    The calibrator includes 9 models, capable of measuring pressures up to 5000 psi / 345 bar and, gauge and absolute pressure module compatible with Fluke 700Pxx differential pressure, and thus the function has been significantly increased intensity.

     Features
    • Pressure measurement: Accuracy of 0.05% full scale, built-in sensor for measuring pressures up to 5000 PSI/345 bar (5000G model)
    • Milliamp measurement: Accuracy is 0.015%, resolution is 0.001 mA, and 24V loop power is supplied
    • Can be used with 29 Fluke 700Pxx pressure modules to measure pressures up to 10,000 psi/700 bar
    • 1/8 NPT socket type pressure connector
    • Suitable for measuring various non-corrosive gases and liquids
    • Allows 11 different engineering units to be selected
    • Zero, minimum, maximum, and hold functions
    • Calibrate the P/I instrument and simultaneously display pressure and current measurements

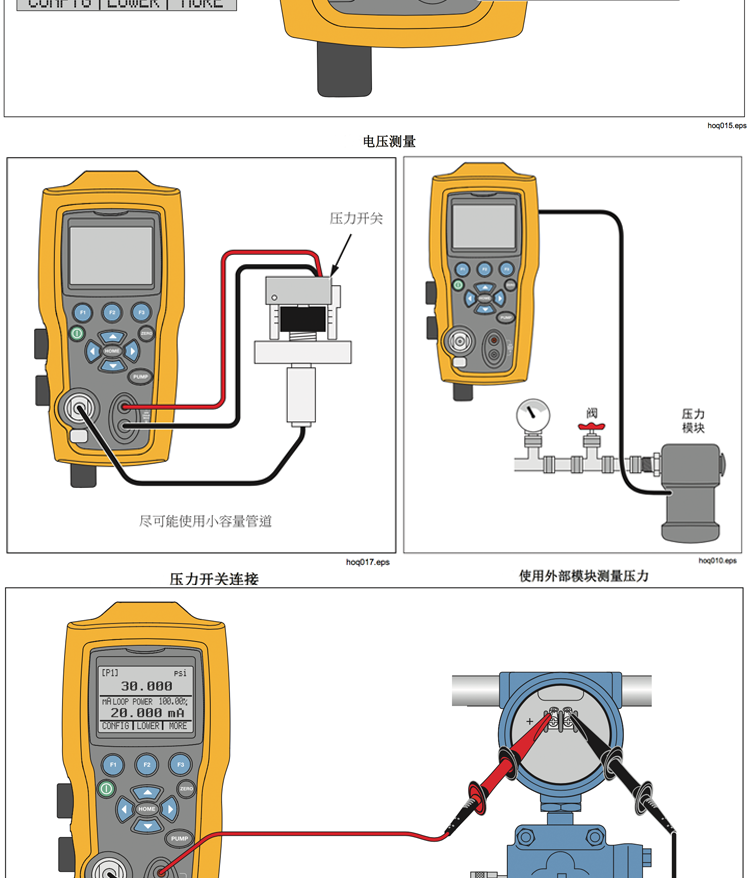

    • Pressure switch test function accurately captures pressure switch settings, resets, and dead zone values
    • mA measurement error rate calculation allows for fast pass/fail results
    • Long lasting battery life
    • The jacket can store the test line
    • Can be used with the Toolpack magnetic suspension system
    • New switch test function

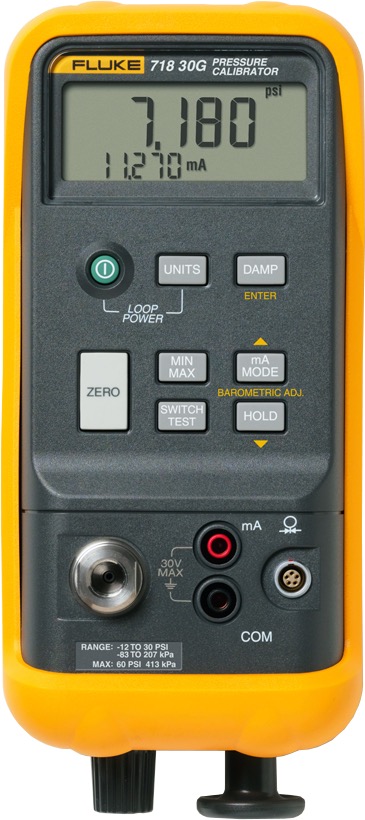

    Fluke 718 Series Pressure Calibrator | Pressure Calibrator

    Comprehensive solution for pressure calibration
    The Fluke 718 Pressure Calibrator / Pressure Calibrator Series(included in four models) is a comprehensive pressure calibration solution for transmitters, meters and switches. This pressure calibration solution is compact and sized to one-third the size of a comparable instrument and weighs only 1 kg (2 lb). The pressure calibrator's unique easy-to-clean pump not only helps protect the pump from damage, it also has a disassembly-free service feature, even at the job site.
     Features
    • Pressure calibrator with pressure source and milliamp measurement for almost all calibration and maintenance of pressure equipment
    • The built-in pump is extremely easy to clean when exposed to liquids, reducing total cost of ownership and maintenance, while also allowing the pump to be serviced at the job site.
    • Pressure calibrator error rate calculation allows staff to quickly make pass/fail decisions at the job site
    • Excellent mA accuracy (0.015%) for reassuring measurements and a wider range of workloads
    • Min/Max/Hold function easily captures changing measurements
    • Switch test function allows for faster and more accurate pressure switch testing
    • The new 7KPa and 2.1MPa pressure ranges mean pressure calibration maintenance in the field and requires fewer additional tools
    • Pressure calibrator is now available in 7KPa, 200KPa, 700KPa and 2100KPa built-in pressure module ranges


    Technical Parameters
    Technical indicators
    Pressure calibratorstandard
    718 series
    Measuring pressure  (built-in sensor)
    Accuracy  0.025% fullness
    Features  Zero, minimum/maximum, hold, damped
    Note:   Dry, non-corrosive air only

    718 1G
    Range :   -1 PSI to +1 PSI, -68.9 mbar to 68.9 mbar (-6.89 kPa to 6.89 kPa)
    Resolution :   0.0001 PSI, 0.001 mbar, 0.0001 kPa
    Overpressure :   5 X full scale
    Function :   Zero, minimum, maximum, hold, damping

    718 30G
    Range :   -12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
    Resolution :   0.001 PSI, 0.1 mbar, 0.01 kPa
    Overpressure :   5 X full scale
    Function :   Zero, minimum, maximum, hold, damping

    718 100G
    Range :   -12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
    Resolution :   0.01 PSI, 0.1 mbar, 0.01 kPa
    Overpressure :   2 X full scale
    Function :   Zero, minimum, maximum, hold, damping

    718 300G
    Range :   -12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa)
    Resolution :   0.01 PSI, 1 mbar, 0.1 kPa
    Overpressure :   375 PSI 25 bar
    Function :   Zero, minimum, maximum, hold, damping
    Fluke 718 Pressure Calibrator Series with 700 Series Pressure Modules
    Range :   29 pressure modules, 0 – 1 in H20 to 10,000 PSI, 2.5 mbar to 700 bar. Overvoltage protection meets pressure module specifications
    Resolution:   Meet the pressure module specifications
    Accuracy:   Up to 0.025 % full scale, in line with pressure module specifications
    Function:   Zero, minimum, maximum, hold, damping
       Note: Media compatibility meets pressure module specifications
    Fluke 718 pressure calibrator series with built-in pump
    Range :   -12 PSI or -850 mbar to full scale support pressure units : psi, in H20 (4 °C), in H20 (20 °C), cm H20 (4 °C), cm H20 (20 °C), bar, Hbar, kPa, inHg, mmHg, kg/cm
    Loop power supply :   Range :  24 V dc
       Accuracy :  +/- 10 %
       Note :  Drive; 20 mA, 1000 Ω for battery >6.8V; 700 Ω for 5.8 to 6.8 V battery
    mA measurement:   Range :  0 mA to 24 mA
       Resolution :  0.001 mA
       Accuracy :  0.015 % + 1 digit
    General technical parameters
    Maximum voltage
       30 volts :  non-operational
    Pressure calibratortemperature
       -40 °C to 60 °C
    Operating temperature
       -10 °C to 55 ° C
    Relative humidity
       95 % (10 °C to 30 °C); 75% (30 °C to 40 °C); 45% (40 °C to 50 °C); 35 % (50 °C to 55 °C)
    Running altitude
       Up to 3,000 m
    Impact resistance
       1 meter drop test
    Vibration resistance
       Random, 2 g, 5 Hz – 500 Hz
    Safety
       CSA C22.2 No. 1010.1: 1992
    EMC
       EN50082-1: 1992 and EN55022: 1994 Class B
    Pressure calibrator size
       216 mm x 94 mm x 66 mm
    Pressure calibrator weight
       992 g (35 oz)
    Electrical energy, battery life
       9V ANSI/NEDA 1604A or IEC 6LR619V alkaline battery; 718 series with two batteries
    Pressure calibrator battery life
       4 to 20 hours (typical), depending on the function used
    warranty period
       Three years (one year warranty on the pressure pump in Fluke 718)
    display
       LCD display, 5-digit, pressure and current synchronous display
    Note
       Suitable for measuring non-corrosive gases
    Model Name description
    Fluke 718 1G Pressure calibrator -1 to 1 PSI, (-68.9 mbar to 68.9 mbar, -6.99 to 6.89 kPa)All models include:
    • Yellow jacket with test line storage
    • Manual (14 languages)
    • Test line and alligator clip
    • Two 9V alkaline batteries
    Fluke 718 30G Pressure calibrator -12 PSI to 30 PSI, (-850 mbar to 2 bar, -85 to 206.84 kPa)
    Fluke 718 100G Pressure calibrator  -12 PSI to 100 PSI, (-850 mbar to 7 bar, -85 to 689.48 kPa)
    Fluke 718 300G Pressure calibrator  -12 PSI to 300 PSI, (-850 mbar to 20 bar, -85 to 2068.42 kPa)

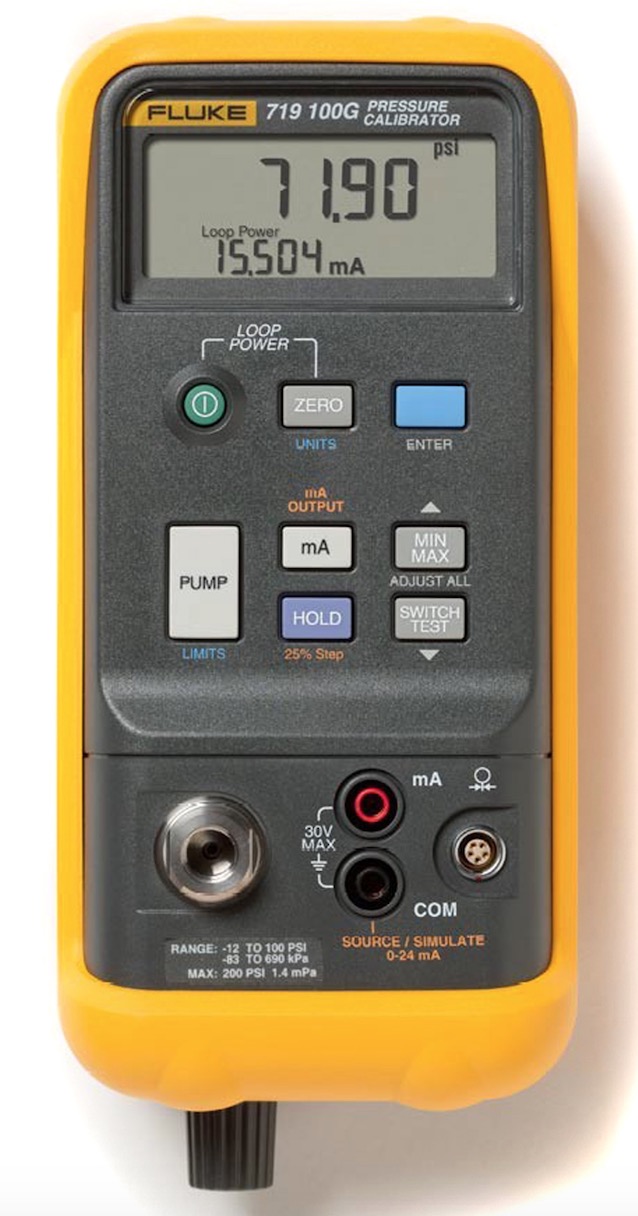

    Fluke 719 Portable Automatic Pressure Calibrator | Pressure Calibrator

    The Fluke 719 Portable Automatic Pressure Calibrator/Verifier is the ideal pressure calibration tool for a compact, lightweight, one-handed, process measurement technician.
    Fluke 719 Portable Automatic Pressure Calibrator / Calibrator – Lets you forget the hassle of using a hand pump
    The Fluke 719 portable automatic pressure calibrator/calibrator features a new built-in electric air pump that makes pressure calibration easy! You can now easily and quickly complete calibration and testing of your pressure equipment with one-handed operation, saving valuable time.
    The programmable pump limit setting is used to avoid over pressurization, and the “pressure value” can be set. The unique cleaning port design reduces the chance of gas pump failure, is easier to clean, and requires no maintenance.
    Pressure calibration is easy, and you can meet all your process calibration needs with the Fluke brand you know and trust.
     Features
    • Portable pressure calibrator/calibrator with electric air pump for pressure calibration with one hand
    • Pressure measurement uncertainty is the best among similar products, only 0.025%
    • mA level signal measurement and signal source accuracy up to 0.015%
    • High precision pressure adjustment cursor
    • Exhaust valve with adjustable bleed speed for pressure regulation
    • Pressure Calibrator with Ideal Performance for High-Precision Transmitter Calibration
    • 207KPa (30 PSI) and 689KPa (100 PSI) pressure ranges
    • Programmable air pump limit settings:
      • Prevent excessive pressure
      • User can program the target pressure of the pump
    • Pressure Calibrator Extends Pressure Range with Any of 29 700Pxx Pressure Modules
    • Source mA while pressure measurement to test valves and I/P transmitters
    • Analog mA signal to troubleshoot 4-20 mA loop
    • Test the pressure switch with built-in switch test function
    • 24V loop power supply is used to power the transmitter during measurement
    • Equipped with a clean port to reduce the chance of gas pump failure


    Technical Parameters
    General technical parameters
    Pressure calibrator storage temperature
       -30 °C to 60 °C
    Operating temperature
       -10 °C to 55 °C
    Relative humidity
       95 % (-10 °C to 30 °C)
       75 % (30 °C to 40 °C)
       45 % (40 °C to 50 °C)
       35 % (50 °C to 55 °C)
    Shock
       1 meter drop test
    safety
       CSA C22.2 No. 1010.1:1992
    EMC
       EN50082-1:1992 and EN55022:1994 Class B
    Pressure Calibrator Size (Height x Width x Length)
       60 mm x 87 mm x 210 mm
       (2.19 in x 3.41 in x 8.28 in)
    Pressure calibrator weight
       912 g (2 lb)
    battery
       Two 9 V alkaline batteries
    Battery Life
       12 hours (12 mA into 500 Ω load), range 689KPa (100 psi) for 200 air pump cycles, 207KPa (30 psi) for 500 air pump cycles
    warranty period
       Pressure calibrator for three years, air pump for one year
    Technical Parameters
    Fluke-719 30G Portable Automatic Pressure Calibrator
    Range  -83KPa (-12 psi) to 248KPa (36 psi), -850 mbar to 2.4 bar
    Resolution  0.007KPa (0.001 psi), 0.1 mbar
    Accuracy  0.025 % range, 6 months
       0.035 % range, 1 year
    Fluke-719 100G Portable Automatic Pressure Calibrator
    Range  -83KPa (-12psi) to 827KPa (120 psi), -850 mbar to 8 bar
    Resolution  0.07KPa (0.01 psi), 1 mbar
    Accuracy  0.025 % range, 6 months
       0.035 % range, 1 year
    mA
    Range  0 to 24 mA
    Resolution  0.001 mA
    Accuracy  0.015 % reading + 2 words
    Remarks  Maximum load 1000 Ω, 750 Ω in HART mode
    Loop power
    Range  24 V dc
    Resolution  no
    Accuracy  ± 10 %
    Pump technical parameters
    Maximum build pressure
       120 PSI (8 BAR) (100 PSI type)
    Pumping
       Less than 15 seconds at 207KPa (30psi)*
       Less than 45 seconds at 689KPa (100psi)*
       * (with 1 m 1/8 in test hose)
    Number of pump cycles between inspections
       5000
    Total pump life
       20,000 calibration cycles
    Model Name description
    Fluke 719 30G Portable automatic pressure calibrator/calibrator, 30 psi, 2 bar contains:
    • Yellow sheath
    • Manual (15 languages)
    • Test line and alligator clip
    • Two 9V alkaline batteries
    • Hose assembly
    • NIST – Traceable Calibration Reports and Data
    Fluke 719 100G Portable automatic pressure calibrator / calibrator, 100 psi, 7 bar

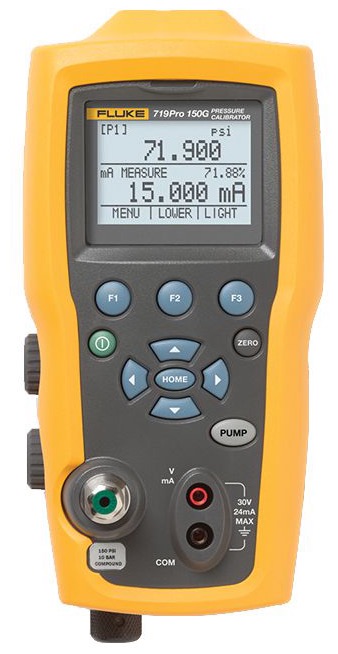

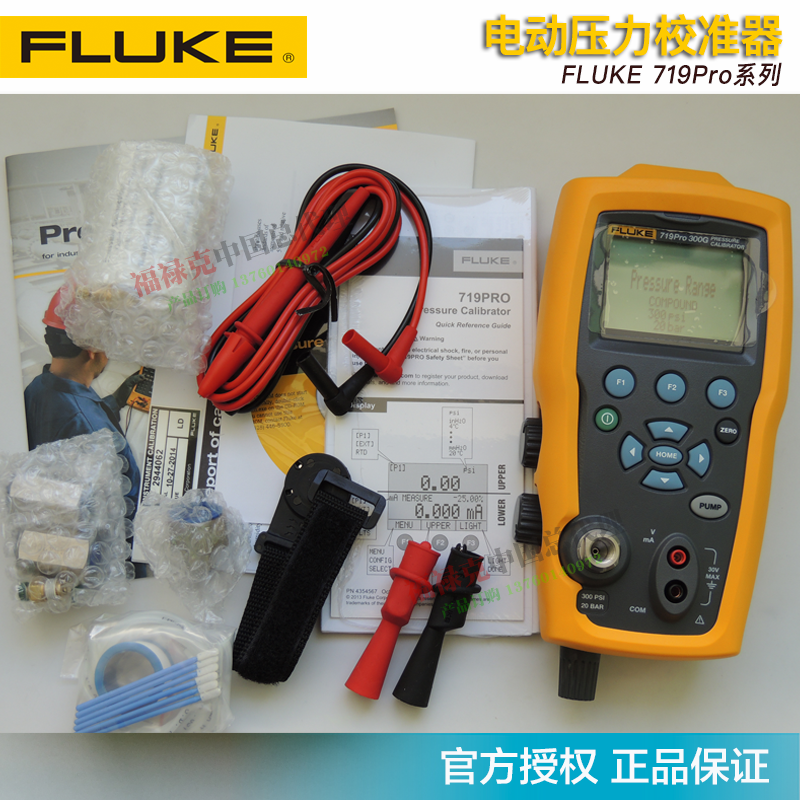

    Fluke 719Pro Electric Pressure Calibrator

    The Fluke 719Pro  includes a full-featured loop calibrator that can output, simulate and measure mA signals and perform more functions, making it an ideal tool for calibrating high-precision transmitters, pressure switches and pressure gauges.
    Maximize measurement flexibility with a large backlit screen that displays three parameters at a time on a large screen:
    • Pressure measurement with internal or external sensors
    • Output / analog / measured mA signal
    • Temperature measurement with optional RTD probe
    Features
    • Unique integrated electric pump for one-handed calibration pressure
    • Easy-to-use switch test function for easy testing of pressure switches
    • Precision pressure fine-tuning knob for accurate and simple calibration of pressure
    • High precision and performance (0.025%), ideal for calibrating transmitters
    • 30 PSI, 150 PSI and 300 PSI pressure ranges
    • Programmable Pressure Calibrator Pump Limits:
      • Eliminate overpressure
      • Allows the user to program the target pressure value of the electric pump output
    • Expands pressure measurement range by extending any of the 29 700Pxx pressure modules
    • Pump cleaning port reduces pump failure due to moisture and fluid damage
    • The accumulator supplied with the Calibrator reduces the possibility of liquid damage in high-risk applications
    • Optional RTD probe for precise temperature measurement

    Technical Parameters
    Technical indicators
    Pressure measurement
    Range -12 - 30 PSI/-0.8 - 2 bar
    Resolution 0.001 PSI, 0.0001 bar
    Accuracy (1 year) ± 0.025 % of full scale, ± 0.035 % of full scale over 6 months,
    only dry air and non-corrosive gases for 1 year
    Temperature effect (all ranges) When the temperature exceeds the range of 15 °C - 35 °C, adding ± 0.002% of full scale / °C
    15 °C - 35 °C has no effect on the accuracy of all functions
    Features Range Resolution Accuracy (1 year) Remarks
    DC mA (analog and measurement) DC 0-24 mA 0.001 mA ± 0.015 % of reading ± 2 words Maximum load in the mA output is 1000 Ω, maximum voltage DC in the mA analog is 26 V
    DC voltage (measurement only) 30 V DC 0.001 V ± 0.015 % of reading ± 2 words Cannot measure AC voltage, DC voltage can not exceed 30 V
    Temperature (measurement only, Pt100 RTD) -50 - 150 °C (-50 °F - 302 °F) 0.01 °C
    0.01 °F    		 Temperature ± 0.1 °C (0.2 °F) Uncertainty of ± 0.25 °C (± 0.45 °F) with 720 RTD probes (optional accessory).
    Loop power 24 V DC N/A 24 mA/24 V
    Temperature effect (all functions)     When the temperature exceeds the range of 15 °C - 35 °C, add ± 0.002% of full scale / °C No effect on the accuracy of all functions in the 15 °C - 35 °C range
    surroundings
    Operating temperature -10 °C to +50 °C
    Storage temperature (with battery) Follow the battery manufacturer's technical specifications (see below for storage specifications)
    Storage temperature (without battery) -20 °C to +60 °C
    Power requirement
    battery 8 standard 5 alkaline batteries
    Battery life At least 300 pump cycles in 150 PSI pressure; at least 1000 pump cycles in 30 PSI pressure; at least 100 pump cycles in 300 PSI pressure
    Body characteristics
    Size (height x width x depth) 24.13 cm x 11.18 cm x 7 cm (9.5 in x 4.4 in x 2.8 in)
    weight With leather case 1.2 kg (2.5 lb)
    connection
    pressure 1/8" female NPT connector
    electric Standard banana socket
    RTD 4 pin miniature round
    External module 6 pin miniature round
    Engineering unit (configurable)
    Psi, bar, mbar, kPa, kgcm  2  cmH  2 O@4 °C, cmH  2 O@20 °C, mH  2 O@4 °C, mH  2 O@20 °C, inH  2 O@4 °C, inH  2 O@20 °C, inH  2 O@60 °F, mmHg@0 °C, inHg@0 °C, ftH  2 O@4 °C, ftH  2 O@20 °C, ftH  2 O@60 ° F
    Model Name description
    Fluke-719Pro-30G include:
    • Electric Pressure Calibrator, 30 PSIG
    • Test lead with alligator clip
    • Printed version of the user manual and CD-ROM user manual for 14 languages
    • Liquid collector
    • Carrying case
    • 1/4" NPT to 1/4" ISO Adapter
    • Companion hose kit with (2) 1/8" quick connect adapter and 1 meter hose
    • Traceable calibration certificate
    Product interface introduction

    Simple operation




    Thiết bị hiệu chuẩn dòng điện, điện áp FLUKE , Fluke F705/F707/F715/F709/F709H, Calibrator FLUKE715 Voltage Current Calibrator
    Thiết bị hiệu chuẩn dòng điện, điện áp FLUKE , Fluke F705/F707/F715/F709/F709H, Calibrator FLUKE715 Voltage Current Calibrator Liên hệ
    ĐỒNG HỒ ĐO ĐIỆN CHỈ THỊ PHA, Fluke F9040 phase sequence indicator ,F9062 motor phase sequence indicator FLUKE2042 cable tester
    ĐỒNG HỒ ĐO ĐIỆN CHỈ THỊ PHA, Fluke F9040 phase sequence indicator ,F9062 motor phase sequence indicator FLUKE2042 cable tester Liên hệ
    Súng đo nhiệt độ bằng hồng ngoại ,FLUKE F572/F574, infrared thermometer ,FLUKE574 thermometer -30-900 °C
    Súng đo nhiệt độ bằng hồng ngoại ,FLUKE F572/F574, infrared thermometer ,FLUKE574 thermometer -30-900 °C Liên hệ
    Súng đo nhiệt độ bằng hồng ngoại ,Fluke F59/F59E/MT4MAX/MT4MAX+/F62MAX/F62MAX+/ST20MAX Thermometer Kit
    Súng đo nhiệt độ bằng hồng ngoại ,Fluke F59/F59E/MT4MAX/MT4MAX+/F62MAX/F62MAX+/ST20MAX Thermometer Kit Liên hệ
    Thiết bị đo nhiệt độ tiếp xúc, FLUKE F51-II/F52-II/F53-IIB/F54-IIB, thermometer F52-2/F53-2B/F54-2B
    Thiết bị đo nhiệt độ tiếp xúc, FLUKE F51-II/F52-II/F53-IIB/F54-IIB, thermometer F52-2/F53-2B/F54-2B Liên hệ
    Ampe kìm đo dòng nhỏ,Fluke F342/LH41A small current clamp meter FLUKE342 clamp meter F902FC clamp meter F360
    Ampe kìm đo dòng nhỏ,Fluke F342/LH41A small current clamp meter FLUKE342 clamp meter F902FC clamp meter F360 Liên hệ
    AMPE KÌM ĐO ĐIỆN, Fluke F353/F355 Clamp Meter FLUKE353/FLUKE355, Clamp Meter High Current 2000A
    AMPE KÌM ĐO ĐIỆN, Fluke F353/F355 Clamp Meter FLUKE353/FLUKE355, Clamp Meter High Current 2000A Liên hệ
    Ampe kìm đo dòng rò, Fluke F368 F368FC F369 F369FC, leakage current clamp table ,FLUKE368FC FLUKE369FC
    Ampe kìm đo dòng rò, Fluke F368 F368FC F369 F369FC, leakage current clamp table ,FLUKE368FC FLUKE369FC Liên hệ
    AMPE KÌM ĐO ĐIỆN, Fluke F323/F324/F325 Clamp Meter
    AMPE KÌM ĐO ĐIỆN, Fluke F323/F324/F325 Clamp Meter Liên hệ
    Thiết bị kiểm tra điện áp, Fluke FLUKE T6-600/T6-1000, non-contact voltage clamp meter, T5-600/T5-1000 voltage clamp
    Thiết bị kiểm tra điện áp, Fluke FLUKE T6-600/T6-1000, non-contact voltage clamp meter, T5-600/T5-1000 voltage clamp Liên hệ
    AMPE KÌM ĐO ĐIỆN, Fluke FLUKE373/F374FC/F375FC/F376FC, FLUKE381/FLUKE376
    AMPE KÌM ĐO ĐIỆN, Fluke FLUKE373/F374FC/F375FC/F376FC, FLUKE381/FLUKE376 Liên hệ
    Ampe kìm phân tích công suất, Fluke FLUKE345 power quality analyzer F345 tester FLUKE353/F355 clamp meter
    Ampe kìm phân tích công suất, Fluke FLUKE345 power quality analyzer F345 tester FLUKE353/F355 clamp meter Liên hệ


    Máy đo thử mô men xoắn, electric torque tester HIOS HP-10, HP-20, HP-50, HP-100, HP-250
    Máy đo thử mô men xoắn, electric torque tester HIOS HP-10, HP-20, HP-50, HP-100, HP-250 Liên hệ




    TÂN THÀNH CAM KẾT

    • Sản phẩm, hàng hóa chính hãng.
    • Giá cả cạnh tranh.
    • Dịch vụ chăm sóc khách hàng tận tâm.

    Thông Tin Công Ty

    Chính sách và quy định

    Đã thông báo



    Hỗ trợ khách hàng



    THÔNG TIN LIÊN HỆ:
    -------------------------------
    CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP TTH
    Trụ sở: số 124 ngõ 79 Yên Hoà-Cầu giấy-HN
    Kinh doanh 1 : 0816.861.515
    Kinh doanh 2 : 0836.861.515
    Email: tthkinhdoanh@gmail.com
    Email: tthkinhdoanh01@gmail.com

  • Kết nối với chúng tôi


    • © Bản quyền thuộc về CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP TTH.

    Thiết kế bởi CÔNG TY TNHH THIẾT BỊ CÔNG NGHIỆP TTH.
