Mã sản phẩm: Fluke F9040

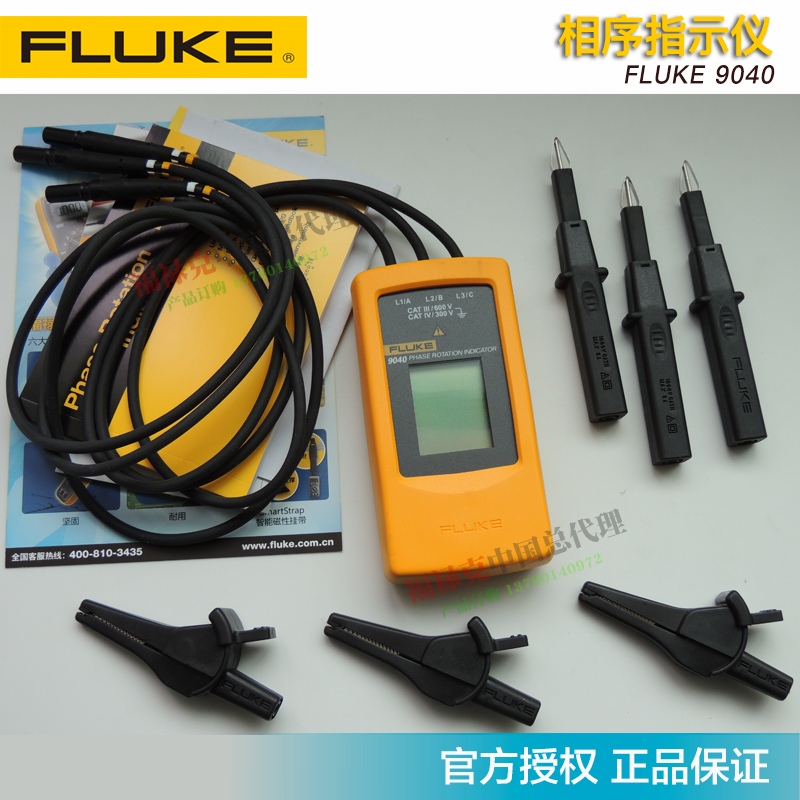

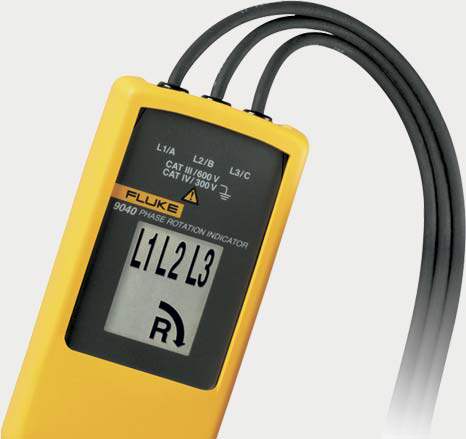

Fluke 9040 phase sequence rotation indicator
Phase sequence rotation indicator for high voltage capability in industrial applicationsThe Fluke 9040 effectively measures the direction of phase rotation in all areas where three-phase power is used to power the motor, drive and electrical systems. The Fluke 9040 is a rotating magnetic field indicator that clearly indicates the three phase lines and the phase sequence rotation through the LCD display to determine the correct connection. It can be used to quickly determine phase sequence, with voltages (up to 700 V) and frequency ranges ideal for commercial and industrial applications. The included test probe has a variable clamping range for secure connection and is an industrial jack. Features - Instruct all 3 phases
- Line sequence rotation indication
- Clear LCD display
- No battery required
|  |
Technical Parameters | Technical indicators |
| voltage range | |
| Frequency Range | |
| Work timer | |
| Environmental parameters: |
| Operating temperature | |
| Dustproof / waterproof | |
| Safety technical parameters |
| Electrical Safety | |
| Overvoltage level | | | CAT III, 600 V | | | CAT IV, 300 V | |
| Mechanical and general parameters |
| size | |
| weight | |
| power supply | | | Taken from the device under test | |
| Warranty | |

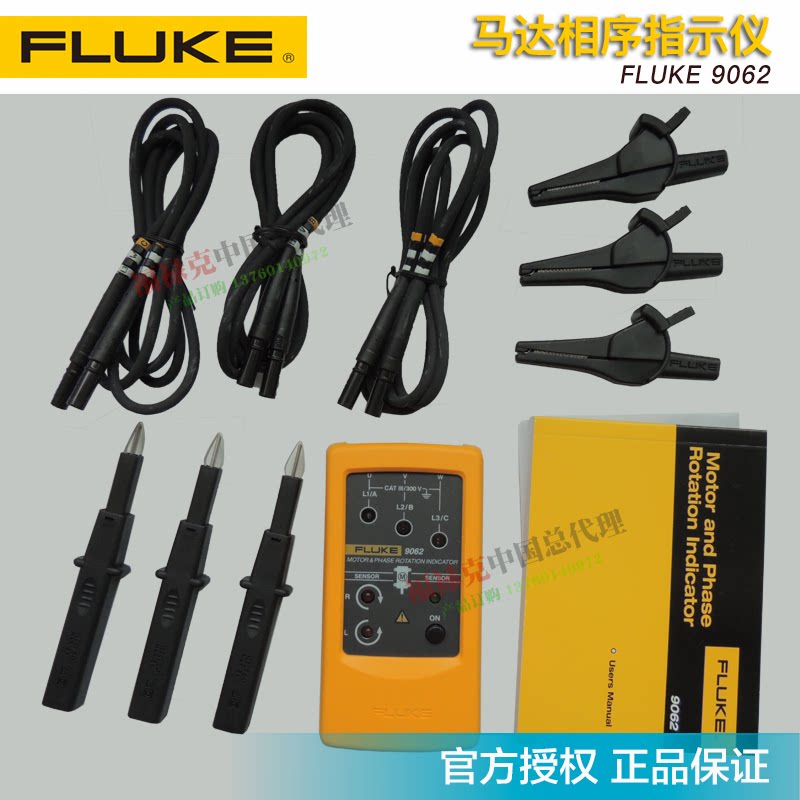

Fluke 9062 motor and phase sequence rotation indicatorThe Fluke 9062 Motor and Phase Sequence Rotary Indicator is a portable, hand-held instrument designed to determine the rotating magnetic field and motor rotation direction of a three-phase system.And no need to connect the test line, just place the meter above the motor and align with the motor shaft to determine the direction of rotation of the motor.
Technical indicators | product type | Motor and phase sequence rotation indicator | | Function brief | Determine the direction of the rotating magnetic field, the non-contact motor rotation direction indication, determine the motor connection line | | Product Features | Product characteristics 1 : Pollution degree: 2
Explosion protection type: IP 40
electrical safety: meets DIN VDE 0411 , IEC 61010 DIN , VDE 0413-7 , EN 61557-7 , IEC 61557-7
maximum operating voltage ( Ume ): 400V AC, all Range
Protection level: CAT III 300V
frequency range ( fn ): 2 to 400Hz
test current (in phase In ): less than 3.5mA
nominal test voltage ( Ume ): AC 1 to 400V
Product characteristics 2 : Random accessories: Test line x3
test probe X3
alligator clip x3
9V battery
User manual
Warranty: 2 years FLUKE 9062 motor and phase sequence rotary indicator power specifications | | power supply | Battery type: 9V alkaline battery, IEC 6LR61
current consumption: maximum 20mA
battery life: at least 1 year under average usage | | FLUKE9062 motor and phase sequence rotation indicator appearance parameters | | size | 124*61*27mm | | weight | 150g | | FLUKE9062 motor and phase sequence rotation indicator environmental parameters | | Operating temperature | 0 °C -40 °C | | Working humidity | 15%-80% | |

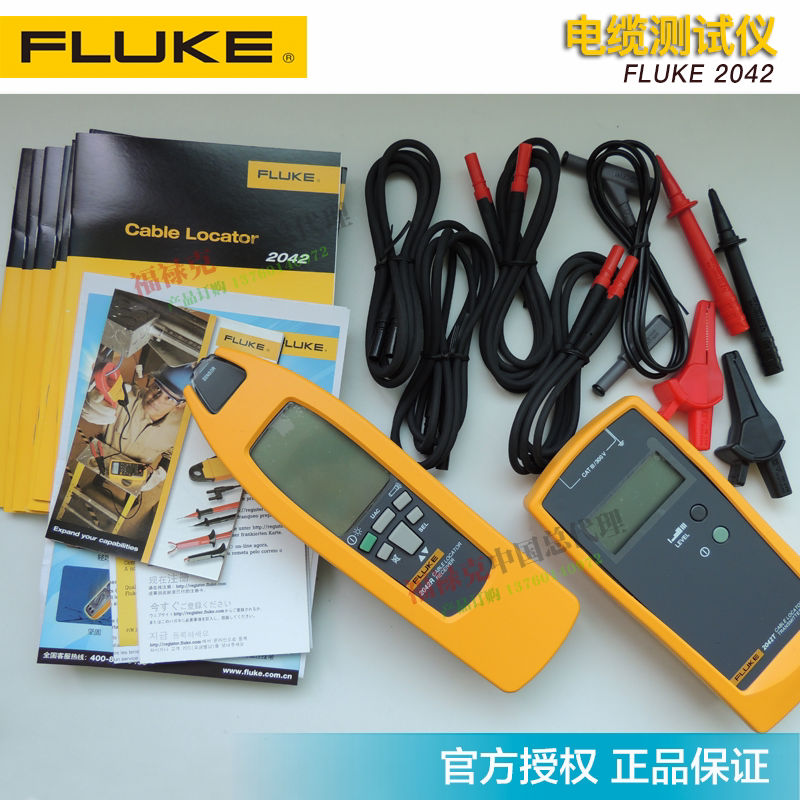

Fluke 2042 Cable Detector
Find the lines in the wall, short circuits and open circuits in the lineThe Fluke 2042 is a professional universal cable locator that is ideal for tracking short and open circuits in walls and underground cables, positioning corresponding fuses and circuit breakers, positioning circuits and floor heating systems. It can also be used to track metal pipes or heat. tube. The device consists of a transmitter and a receiver that integrates a flashlight function to help the user work in dimly lit environments. Features - Underground line tracking
- Find fuses and their insurance devices
- Find short circuits and open circuits in floor heating
- Track metal water pipes and heating pipes
- Can be used in situations where there is voltage or no voltage
- The transmitter's display can show the emission level, transmit code and external voltage
- Receiver display shows display level, transmit code and dot voltage identification
- Receiver sensitivity can be adjusted automatically or manually
- Circulable audio receiving signal
- Automatic shutdown function
|  |
Technical Parameters | Technical Parameters |
| External voltage detection voltage range | | Transmitter: | 12 V, 50 V, 120 V, 230 V, 400 V | |
| Frequency Range | |
| input signal | |
| Voltage | | Transmitter: | Maximum AC/DC 400 V | |
| Tracking depth | | receiver: | About 0 to 2 meters | |
| Environmental parameters |
| temperature range | | Transmitter: | 0 to 40°C | | receiver: | 0 to 40°C | |
| storage | | Transmitter: | -20°C to +60°C | | receiver: | -20°C to +60°C | |
| humidity | | Transmitter: | 80% relative humidity | | receiver: | 80% relative humidity | |
| Altitude | | Transmitter: | Up to 2000 m | | receiver: | Up to 2000 m | |
| Safety parameter |
| Overvoltage category | |
| General parameters |
| size | | Transmitter: | 190 mm x 85 mm x 50 mm | | receiver: | 250 mm x 65 mm x 45mm | |
| weight | | Transmitter: | 0.45 kg | | receiver: | 0.36 kg | |
| power supply | | Transmitter: | 6 x 1.5V | | receiver: | 1 x 9V | |
| Warranty | |
| Model Name | description |
| Fluke 2042 | - 4 test line
- Battery 9V, IEC 6LR61
- 6 battery
- 2 test probe
- Instrument box
- User manual
|
Simple operation

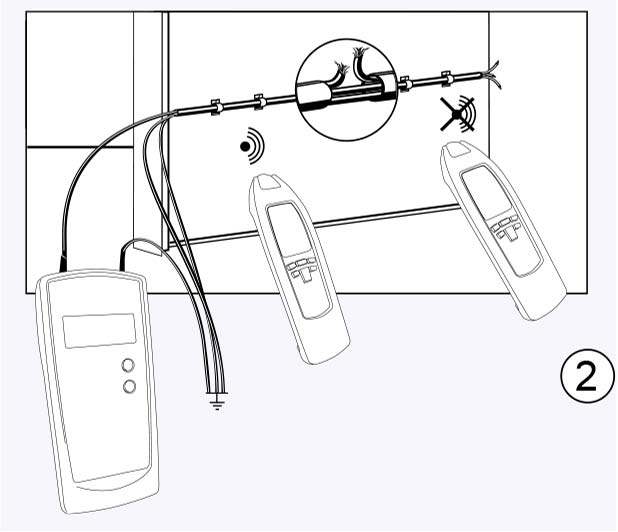

Find line break |

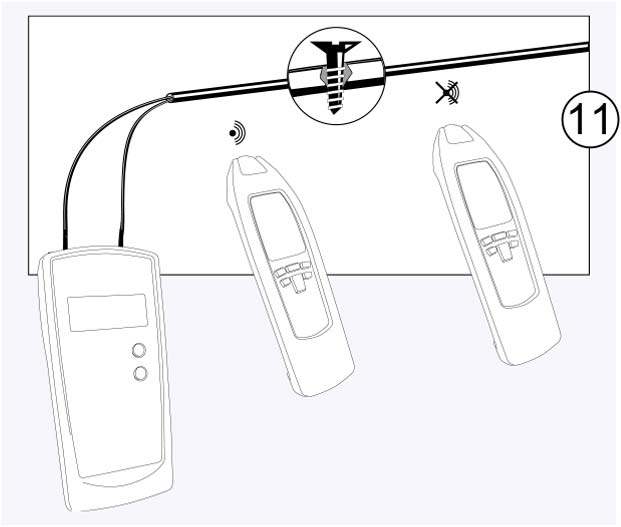

Find the floor heating break point |
-
-
