AMPE KÌM ĐO ĐIỆN, Fluke FLUKE373/F374FC/F375FC/F376FC, FLUKE381/FLUKE376
Đăng ngày 09-11-2018 12:10:00 AM - 707 Lượt xem
Mã sản phẩm: FLUKE373/F374FC/F375FC/F376FC, FLUKE381/FLUKE376
Fluke 374/375/376/374FC/375FC/376FC/381
True RMS AC-DC Clamp Ammeter

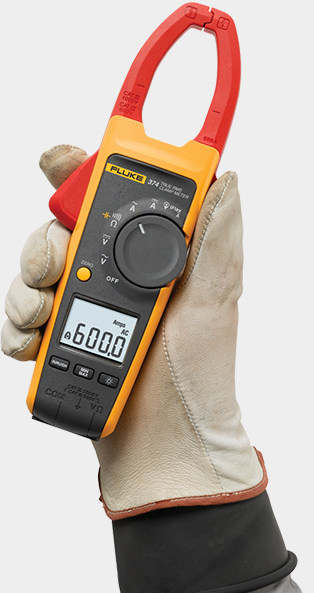

The Fluke 374/375 True RMS AC/DC Clamp/Clamp Meter can read up to 600 V and 600 A in AC and DC modes. In addition, the Fluke 375 can measure frequencies up to 500 Hz, and the Fluke 374/375 clamp meter can also use the new iFlex flexible current probe (sold separately) to expand the range to 2500 A ac for increased display flexibility and easier access to the wires. .
The Fluke 376 Clamp Meter offers higher performance and is ideal for a wide range of current measurements. The Fluke 376 provides true rms voltage and current measurements with up to 1000 V and 1000 A in AC and DC modes. In addition, the Fluke 376 includes the new iFlex 6 4 flexible current probe, which extends the range to 2500 A ac while providing display flexibility, the ability to measure awkward conductors and facilitate wire contact. The Fluke 376 is a direct replacement for the Fluke 337 clamp meter. The 376FC replaces the 376,376 FC as part of the Fluke Connect wireless test tool portfolio, recording measurements and understanding trends, pinpointing intermittent faults, and wirelessly transmitting results through the Fluke Connect 0 3 Measurements application.
The Fluke 381 high voltage clamp ammeter is the first clamp with a remote magnetic display. It has all the features of a universal clamp ammeter. The detachable display makes measurement easier and safer. The Fluke 381 is also a clamp-type multimeter. The method of use is simple, as long as the clamp-type multimeter is clamped on the conductor, the display can be read and operated while the display screen is removed. It takes two people to work, and only one person can easily get it! The new IFLEX flexible current clamp (supplied) extends the current range to 2500 A ac while making readings easier and measuring irregularly sized and crowded cables.
- Features
- The iFlex flexible current probe (sold separately) expands the range to 2500 A ac while increasing display flexibility, allowing the measurement of special-sized conductors for easy contact with wires
- Compliant with CAT IV 600 V, CAT III 1000 V safety standards
- The AC-DC clamp-on ammeter uses proprietary surge current measurement technology to filter out noise and capture the motor starting current observed by the circuit protection function.
- Integrated low-pass filter and state-of-the-art signal processing for use in noisy electrical environments while providing stable readings (375, 376)
- 500 mV DC measurement range for interfacing with other accessories (375, 376)
- Minimum, maximum, average, and surge current records that automatically capture changes (376)
- The AC and DC clamp ammeter has an ergonomic design suitable for hand grip and can be used with personal protective equipment.
- The large, backlit display is easy to read and automatically sets the correct range so there is no need to change the switch position during the measurement
- 3 year warranty
- Soft carrying bag
- 376FC, you can use Fluke Connect Measurement to connect the meter to your smartphone and record the measurement directly to your phone.
| |

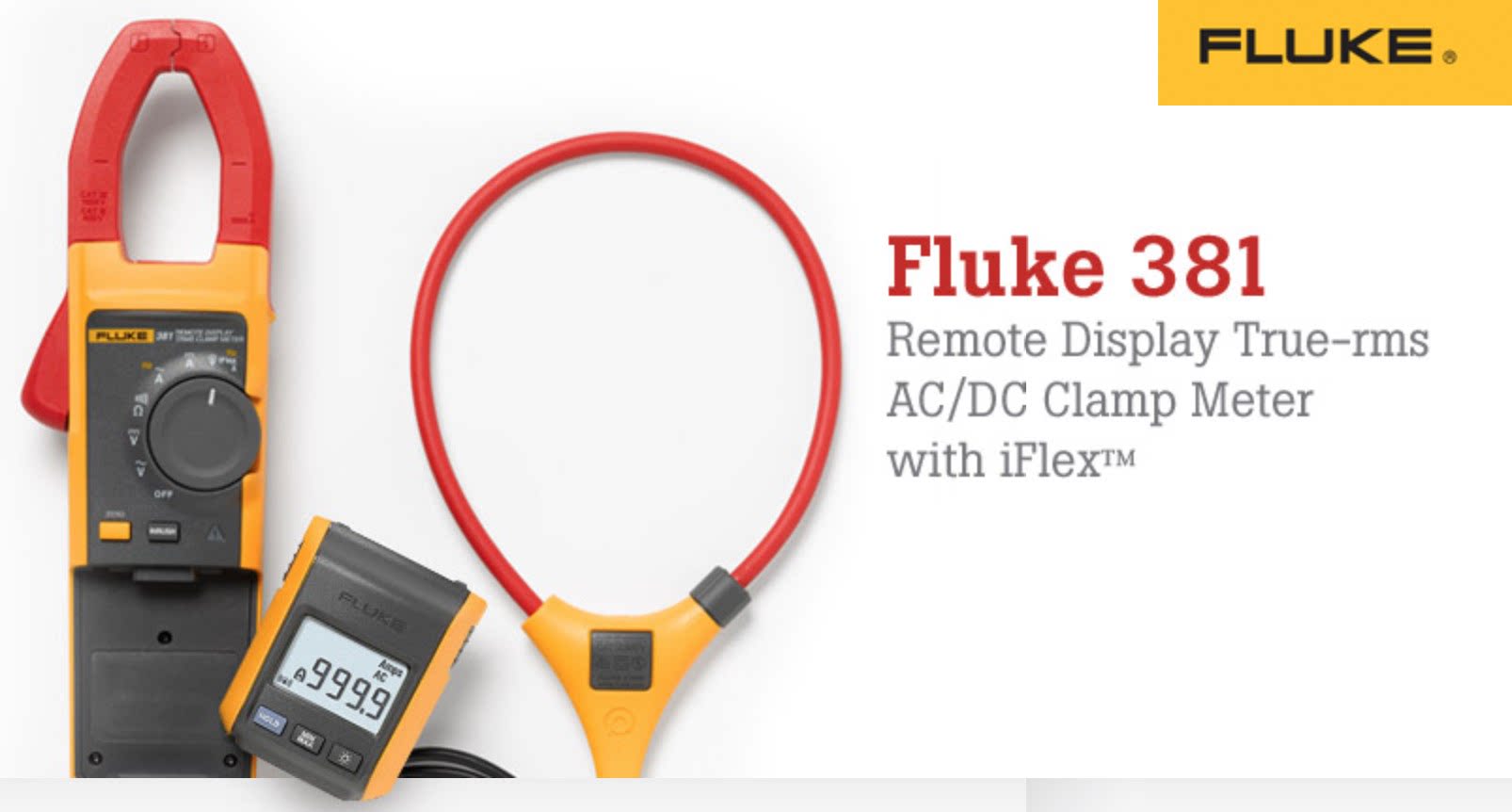

Fluke 381 remote display straight rms AC/DC clamp meter with iFlex 6 4
Basic overviewThe Fluke 381 high voltage clamp ammeter is the first clamp with a remote magnetic display. It has all the features of a universal clamp ammeter. The detachable display makes measurement easier and safer. The Fluke 381 is also a clamp-type multimeter. The method of use is simple, as long as the clamp-type multimeter is clamped on the conductor, the display can be read and operated while the display screen is removed. It takes two people to work, and only one person can easily get it! The new IFLEX flexible current clamp (supplied) extends the current range to 2500 A ac while making readings easier and measuring irregularly sized and crowded cables. Features - A high voltage clamp ammeter with a detachable display. This product is also a clamp-type multimeter with low-power 805.15.4 wireless technology, passed the certification of China Radio Management Committee, and will not interfere with other wireless products (interphone, mobile phone, etc.)
- The detachable display can be placed in a convenient and safe place within 10m from the body
- The iFlex 6 4 flexible current clamp extends the measurement range to 2500 A ac for greater display flexibility and the ability to measure irregularly sized conductors
- After CAT IV 600 V, CAT III 1000 V safety rating
- Patented inrush current measurement technology that filters out noise and accurately captures motor starting current
- The FLUKE 381 high voltage clamp ammeter features an integrated low pass filter and state-of-the-art signal processing for use in noisy electrical environments while providing stable readings
- Ergonomic design, more suitable for one-handed operation
- Easy-to-read large display with automatic range recognition
- Fluke 381 Clamp Multimeter with True RMS AC Voltage and Current Measurement for Accurate Measurement of Nonlinear Signals
- Maximum/minimum/average recording function automatically captures various changes
- Reading hold function, backlight function, more suitable for occasions with poor light
- Clear function to clear the display for DC measurement
- This product provides excellent service support and can be guaranteed for 3 years.
| |
Technical Parameters | Fluke-365 | Fluke-373 | Fluke-374 | Fluke-375 | Fluke-376 | Fluke-381 |
Measuring alternating current | 200.0 A | 600.0 A | 600.0 A | 600.0 A | 999.9 A | 999.9 A |
Measuring AC current with iFlex | | | 2500 A | 2500 A | 2500 A | 2500 A |
Measuring AC voltage | 600.0 V | 600.0 V | 600.0 V | 600.0 V | 1000.0 V | 1000.0 V |
Measurement continuity | ≤ 30 Ω | ≤ 30 Ω | ≤ 30 Ω | ≤ 30 Ω | ≤ 30 Ω | ≤ 30 Ω |
Measuring DC voltage | 200.0 | | 600.0 | 600.0 | 999.9 | 999.9 |
Measuring DC voltage | 600.0 V | | 600.0 V | 600.0 V | 1000.0 V | 1000.0 V |
Measuring resistance | 6,000 Ω | 6,000 Ω | 6,000 Ω | 60k Ω | 60k Ω | 60k Ω |
Measuring frequency | | | | 500 Hz | 500 Hz | 500 Hz |
Measuring surge current | | | 100 mS | 100 mS | 100 mS | 100 mS |
Use in poorly lit areas | Backlighting | Backlighting | Backlighting | Backlighting | Backlighting | Backlighting |
Measuring nonlinear load | True RMS | True RMS | True RMS | True RMS | True RMS | True RMS |
Technical Parameters |
AC/DC clamp meter measurable conductor diameter | 1.3 or 34 mm max |
AC and DC clamp meter operating temperature | -14 to 122oF (-10 to 50oC) |
Storage temperature | -40 to 140oF (-40 to 60oC) |
Working humidity | < 90% @ 10 to 30 oC, < 75% @ 30 to 40oC |
Working altitude | 0 to 3000 m |
AC and DC clamp meter size | 246 x 83 x 43 mm, (9.685 x 3.267 x 1.692 in.) |
AC and DC clamp meter weight | 388g, (14 oz.) |
Temperature Coefficient | 0.01% oC (<18oC or > 28oC) |
warranty period | The circuit is three years Cable and clamp meter assembly for one year |
-
-
