Súng đo nhiệt độ bằng hồng ngoại ,FLUKE F572/F574, infrared thermometer ,FLUKE574 thermometer -30-900 °C

  • Đăng ngày 09-11-2018 12:47:55 AM - 552 Lượt xem
  • Mã sản phẩm: FLUKE F572/F574

  • Tình trạng sản phẩm:

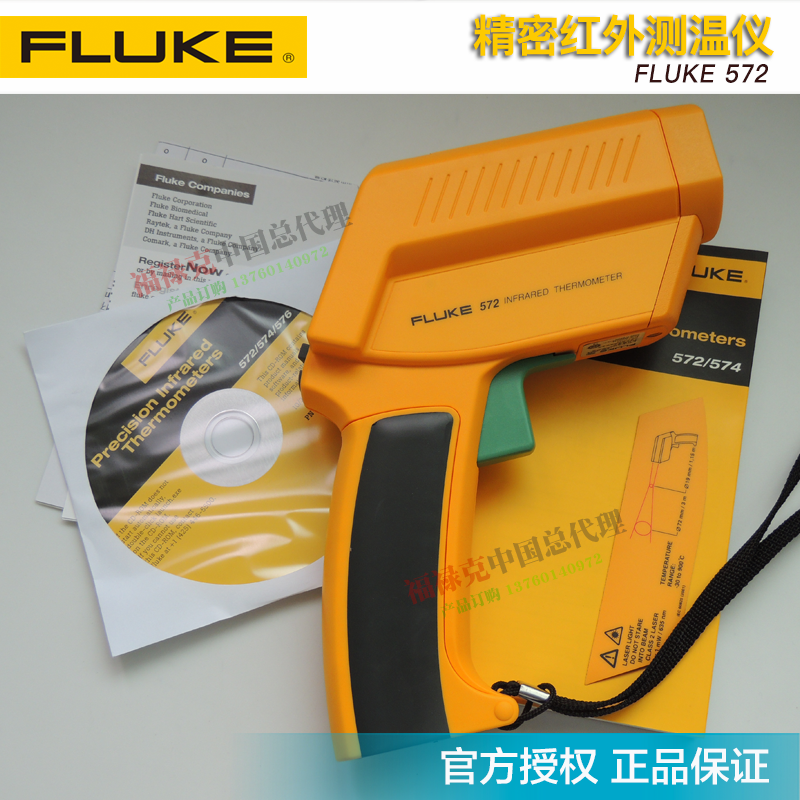

     FLUKE 572/574  infrared thermometer function introduction
     Fluke 572/574 Infrared Thermometer referred to as "thermometer ") for non-contact temperature measurement.The thermometer determines the surface temperature of the object by measuring the infrared energy radiated from the surface of the object.

    • Backlighting for use in areas with poor lighting
    • A bar graph of the last 10 readings helps visually identify trends in real time
    • Functionally enhanced optics (optical resolution of 60:1) with and for measuring smaller objects from a distance
    • 3- point coaxial laser aiming shows the true diameter of the measuring spot (90% energy)
    • The ultra-bright 635nm laser clearly illuminates the targeted area (detected to meet the same safety and power standards as low-light laser sighting)
    • Optional near-focus products designed for professional application needs
    • Quickly display the min/max measurement after calculation
    • Timely sound and visual high temperature alarm
    • Comfortable pistol-style plastic handle, aiming at the target is very easy
    • Adjustable emissivity (0.01 steps) for very accurate measurements
    • Durable hard case carrying case
    • High precision thermocouple (F574)
    • Power adapter (F574)



    Technical indicators
    temperature range
      -30 to 900 ° C
      (-25 to 1600 ° F)
    display resolution
      0.1 ° C (up to 900 ° C )
      0.2 ° F (up to 999.8 ° F )
    D:S (distance to spot diameter ratio)
      60:1 standard focal length
      50:1 close focal length
    Minimum measurement diameter
      19mm (0.76 in) standard focal length
      6mm (0.24 in) close focal length
    Laser aiming
      Three-point coaxial laser
    Emissivity
      Digitally adjustable, adjustable from 0.10 to 1.0 in steps of 0.01
    Display accuracy 23 ° C (73 ° F)to 25 ° C (77 ° F)
      ± 0.75% of reading
      ± 1% of reading or ± 0.75 ° C ( ± 1.5 ° F) , whichever is greater
    Response time
      250 ms 95% of reading )
    Repeatability
      ± 0.5% of reading or ± 1 ° C ( ± 2 ° F) , whichever is greater
    Spectral response
      8 μm to 14 μm
    Laser aiming
      Laser off when ambient temperature exceeds 40 ° C (104 ° F)
    Laser power
      2 (II) operation; output <1mW , wavelength 630-670 nm
    Relative humidity
      10% to 90% RH , no condensation, temperature <30 ° C (86 ° F)
    Triangular mount
      1⁄4 in. 20 UNC thread
    power supply
    Fluke 572: Jie AA batteries
    Battery life (alkaline battery)
    Fluke 572: 13 hours, using laser and backlight, when the remaining power is 50%
    Display hold
      seconds
    LCD backlight
      Have
    Warranty
      years
    Operating temperature
      ° C to 50 ° C
      32 ° F to 120 ° F
    Storage temperature
      -20 ° C to 50 ° C
      -25 ° F to 120 ° F
    Maximum temperature and minimum
      Have
    Temperature difference, average
      no
    Sound and visual alarm
      high
    Bar chart display
      Have
    Up to 100 point data records
      no
    Data chart and storage software (for Windows )
      no
    Model Name description
     Fluke 572/574  The FLUKE572/574 precision infrared thermometer includes:
    • Durable hard case carrying case
    • Jie AA batteries
    • Pool thermocouple(F574)
    • Power adapter (F574)
