Ampe kìm đo dòng nhỏ,Fluke F342/LH41A small current clamp meter FLUKE342 clamp meter F902FC clamp meter F360
  • Ampe kìm đo dòng nhỏ,Fluke F342/LH41A small current clamp meter FLUKE342 clamp meter F902FC clamp meter F360

Ampe kìm đo dòng nhỏ,Fluke F342/LH41A small current clamp meter FLUKE342 clamp meter F902FC clamp meter F360

  • Đăng ngày 09-11-2018 12:29:46 AM - 1400 Lượt xem
  • Mã sản phẩm: Fluke LH41A FLUKE 342 FLUKE 360 FLUKE 902FC

    • Tình trạng sản phẩm:


    Fluke 342 low current clamp meter

    It is a clamp meter for measuring AC/DC small current in non-series mode. The unique small-range and small-jaw design is mainly suitable for quiescent current (leakage current) measurement in automobile maintenance and 4S shop vehicle maintenance inspection, data center. The detection of amperage current in the power distribution cabinet, the detection of small currents in industrial control systems, and the AC and DC measurements of small and medium power equipment or circuits in other R&D departments.
     Features
    • Up to 1mA resolution
    • Small clamp head design for measuring dense cable
    • Compact and lightweight, easy to carry
    • Auto range / auto zero
    • Data retention
    • Automatic shut-down
    • Low battery alert

    Technical Parameters
    Electrical parameter
    Measuring range  40A DC or AC current peak
    Automatic range 4A/40A
    Resolution Range 4A: 1mA
    range 40A: 10mA
    Precision ±(1.3%+5 words)
    Display word count  4000 words
    Temperature Coefficient When the temperature is higher than 28 ° C or lower than 18 ° C, additional 0.1 × test accuracy / ° C
    Frequency Range  AC 40-400Hz
    Overload capability  150A
    Security Level  CAT III 300V
    General parameters
    Operating temperature range  0°C-50°C
    powered by 9V alkaline battery, NEDA 1604 or IEC 6LR61
    Battery working time 15 hours in a row
    Protection level IP30
    size 184 × 71 × 31mm
    Opening degree 20mm
    weight 235g
    warranty period 1 year

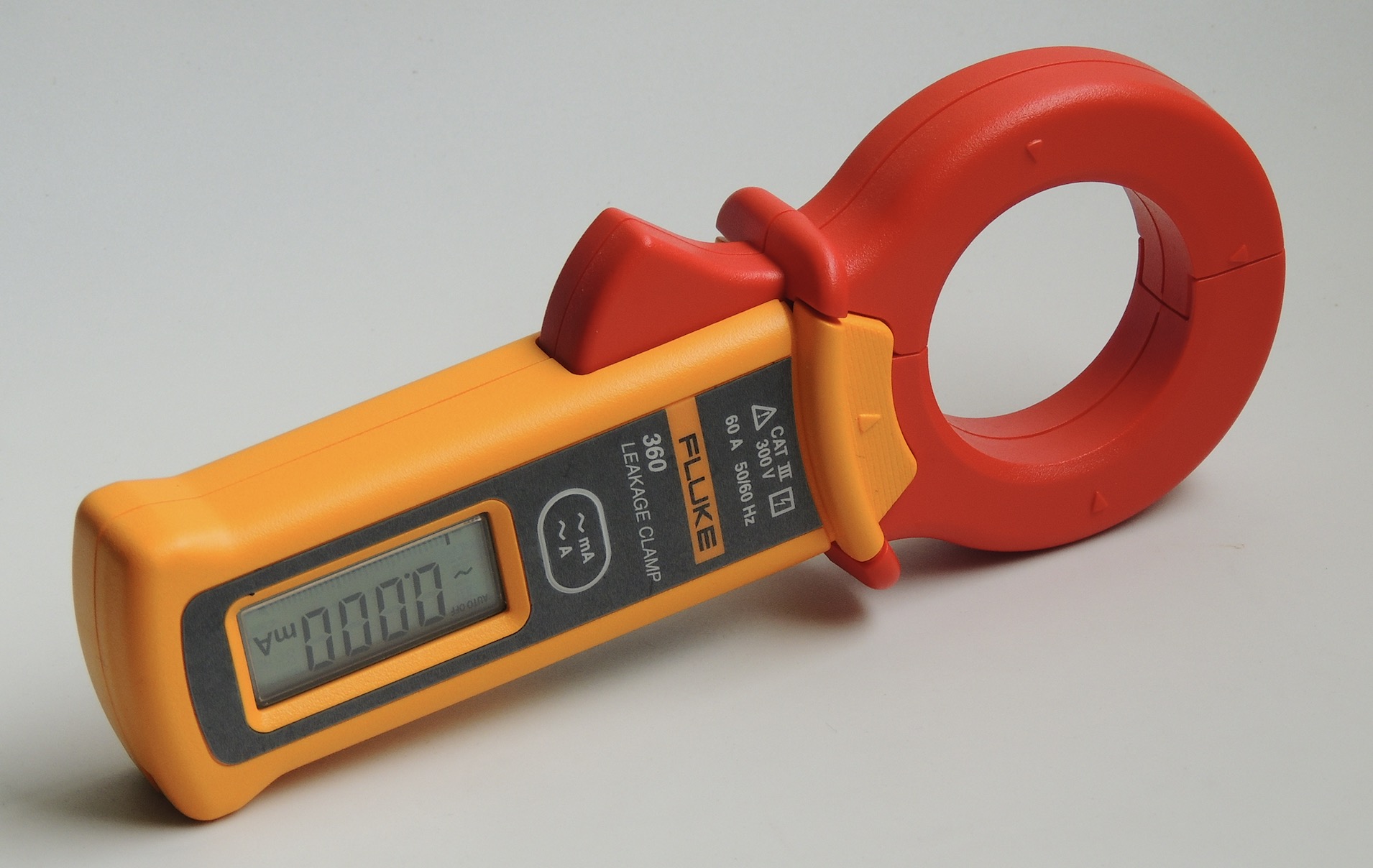

    Fluke 360 ​​Leakage Current Clamp Meter | Leakage Current Tester

    The Fluke360 Leakage Current Tester measures leakage current at 3mA and 1μA resolution for accurate monitoring of corrosion in insulating materials. The 10μA leakage current measurement capability makes it an ideal instrument for inspecting low voltage circuits and electrical components. The jaw design eliminates the effects of adjacent current conductors. The highly durable jaw structure can withstand more than 50,000 operations. These features combine to allow users to fully meet the needs of fast, reliable testing without sacrificing accuracy or safety.
    The rugged and accurate Fluke 360 ​​Leakage Tester is an excellent leakage current measurement instrument.
    As a well-designed non-invasive insulation condition tester, the Fluke 360 ​​Leakage Current Tester allows you to test without powering down the system or disconnecting the device – saving time and no harmful effects on resistance quality or safety. .

    The Fluke 360 ​​Leakage Current Tester features a unique jaw design that eliminates interference from adjacent current conductors and reduces the effects of external magnetic fields, ensuring accurate test data even in very small current environments.This way, you can perform accurate and reliable inspections in today's intricate electrical environment. The Fluke 360 ​​Leakage Current Tester has (sturdy, high-quality jaws) for high stability and durability, and the rugged, high-quality clamp design ensures highly stable long-term repeatability.

    Why is the leakage current detected?
    Leakage current indicates the insulation effect of the wire. In circuits of electronic devices using low insulation resistance or bandpass filters, there may be higher leakage currents. Leakage current can cause equipment and systems to malfunction. Use the Fluke 360 ​​Leakage Current Tester to perform a comprehensive measurement of the entire system to find the source of the leakage current. The main advantage of leakage current detection over insulation detection is that you can complete measurements during normal operation without having to turn off the power to the system and equipment.
    Features
    • Leakage current measurement with a range of 3 mA and resolution up to 1 μA for accurate monitoring of insulation damage
    • Wide measurement range from 1μA up to 60A to meet the measurement needs of a wide range of devices
    • Advanced shielding technology to ensure accurate measurement results when measured near other conductors
    • High durability jaw structure for 50,000 operations, enhanced ruggedness for extended leakage current tester life
    • Pocket leak current tester, easy to carry, jaw size 40mm (1.5in)
    • Convenient “display hold button for leak current readings in hard-to-reach places
    • With automatic power-off function, with warning buzzer, can save battery power and extend battery life
    • Compliance with IEC1010 and EMC standards, can be measured with confidence
    • Meets all application and performance requirements for leakage current and differential current measurements in electrical equipment in the VDE0404-4 and VDE0702 safety standards




    Technical Parameters
    General technical indicators
    Detection method
       average value
    display
    Digital Display:  3200 count
    The bar chart shows:  32 segments, LCD
    Measurement cycle
       2 times per second (digital display), 12 times per second (column display)
    Range switching
       Automatic adjustment range
    Ambient temperature and humidity
       0 °C - 50 °C, 80 % R H  or less (non-condensing)
    Temperature Coefficient
       0.05% of range / °C (0 °C - 18 °C and 28 °C - 50 °C, measuring range 0-50 A)
    External magnetic field
       0.0005 % typical
    Effect of wire position
       In the accuracy range
    Circuit voltage
       <300 Vrms
    safety standard
       EN 61010-1, EN 61010-2-032, 300 V CAT III, Class 2 pollution protection
    Withstand voltage
       3.7 kV ac
    type of battery
       1 x 3 V lithium battery (button battery) CR2032
    Battery Life
       About 90 hours (continuous use)
    Automatically shut down
       About 10 minutes
    Measure the diameter of the wire
       40 mm maximum
    weight
       200 g
    size
       176 mm x 70 mm x 25 mm
    Operating altitude
       2000 m
    Electrical technical indicators
    Standard operating environment
       23 ± 5 oC, relative humidity up to 80%
    Accuracy
       (% reading + value of least significant digit)
    3 mA
       Resolution: 0.001 mA
    Accuracy: 1% + 5
    Maximum allowable current:  60 A rms
    30 mA
       Resolution:  0.01 mA
    Accuracy:  1% + 5
    Maximum allowable current:  60 A rms
    30 A
       Resolution:  0.01 A
    Accuracy:  1% + 5
    Maximum allowable current:  60 A rms
    60 A
       Resolution:  0.1 A
    Accuracy:  5% + 5
    Maximum allowable current:  60 A rms
    Average value detection and true RMS calibration
    Standard frequency of accuracy:  50/60 Hz
    Model Name description
    Fluke 360 The leakage current tester
    includes:

    • Fluke 360 ​​AC Leakage Current Tester
    • Soft carrying case
    • User manual with English, French, Spanish, German, Italian, Portuguese, and Simplified Chinese versions

    Fluke 902 FC True RMS HVAC Clamp

    Fluke multimeter + thermometer + clamp meter = three in one F902FC
    Record measurements directly from the job site, email results, and collaborate in real time with colleagues.
    The Fluke 902 FC  True RMS HVAC Clamp is a wireless Fluke Connect®-compatible clamp that increases the efficiency of HVAC technicians working in the field. Robust dual rating - CAT III, 600 / CAT IV, 300 V - Clamp meter for critical measurements of HVAC systems - Micro-amps for testing indicator sensors, up to 60 kΩ resistors, AC current, AC/DC voltage, capacitance And contact temperature measurement - no need to carry multiple tools. The clamps are compact and easy to handle, and the jaws are ideal for working in tight spaces.
    As part of Fluke Connect, the industry's most powerful test system with more than 40 wireless test tools, the 902 FC transmits measurements to a smartphone or tablet for later detailed analysis.These measurements can also be uploaded to the cloud. Technicians can consolidate measurement data from multiple Fluke Connect test tools, create reports on the job site and share them via email, and collaborate with other colleagues in real-time through ShareLiveTM video calling or email to increase field productivity.
    The clamp also reduces the need for technicians to wear personal protective equipment when operating high voltage/high current panels.Simply turn off the panel, confirm the panel power down with a standard safety program, place it in the meter and sync it to the smartphone using the Fluke Connect app, turn off the panel, re-energize the panel, and measure from a safe distance.

    HVAC application

    • 200 μA DC current measurement for measuring flame sensors
    • Wide range of resistance for measuring up to 60 kΩ resistors
    • Capture flue temperature
    • Measuring start and run motor capacitance
    • Measuring variable frequency drive performance

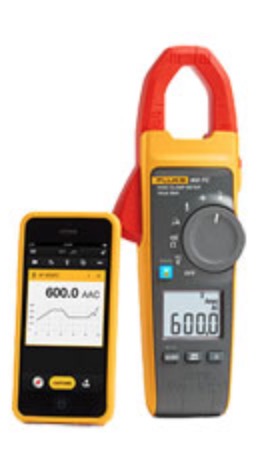

    Fluke Connect

    • Fluke Connect connects your meter to your phone via Bluetooth, helping you do more work faster and safer
    • The measured value is read by the mobile phone at a safe distance, and the instrument bears all risks, and the staff only needs to wear less personal protective equipment.
    • Better troubleshooting by analyzing trends and monitoring real-time measurements on your phone's screen
    • Create and email reports on site. Is the report not enough?Fluke Connect features a ShareLive video call that displays live video streams and measurements on the same screen
    • No need to stop to record the results, press the button to save the results directly from the clamp to your phone
     Features
    • 600 A AC current measurement
    • 600 V AC and DC voltage measurement
    • Temperature measurement range -10 °C to 400 °C (14 °F to 752 °F)
    • 1000 μF capacitance measurement
    • Measure DC current up to 200 μA
    • Accurately measure true rms voltage and current of nonlinear signals
    • Can measure resistance up to 60 kΩ
    • Minimum and maximum recording functions automatically capture reading changes
    • Safety level is CAT III 600V, CAT IV 300V
    • TPAK magnetic lanyard (optional) allows you to hang the meter when using the probe
    • The ergonomic design makes the instrument easy to hold in your hand and easy to use when wearing personal protective equipment.
    • Large backlit display for easy reading of information
    • Three-year warranty
    • Soft carrying case
    Technical Parameters
    Features
    AC current (through the jaw)
    Resolution 0.01/0.1 A
    Precision 2.0% ±5 digits (45-65 Hz)
    2.5% ±5 digits (65-400 Hz)
    Range 60.00/600.0 A
    Crest factor (50Hz or 60Hz) 2.5 MIN@220 A
    3.0 MIN@180 A
    > 1.4 MIN@600 A
    CF>400 A increases by 2%
    AC voltage
    Resolution 0.1 V
    Precision 1.5% ± 5 digits
    Range 600.0 V
    V dc
    Resolution 0.1 V
    Precision 1.5% ± 5 digits
    Range 600.0 V
    ohm
    Resolution 0.1/1/10
    Precision 1% ± 5 digits
    Range 600/6000/60.00 kΩ
    capacitance
    Resolution 0.1/1 μF
    Precision 1% ± 4 digits
    Range 100.0/1000 μF
    μA
    Resolution 0.1 μA
    Precision 1% ± 5 digits
    Range 200 μA
    Contact temperature
    Resolution 0.1 C/F
    Precision 1% ± 8 digits
    Range -10 to 400 °C (14 °F to 752 °F)
    On-off test buzzer
    Buzzer volume 75 dBA (nominal) 15 cm from the front of the cabinet.
    Threshold <=30 Ω
    Mechanical and general specifications
    The highest voltage between any terminal and ground 1000 V
    type of battery 2 AA alkaline batteries, NEDA 15A, IEC LR6
    temperature Operating temperature: -10 °C to +50 °C (14 °F to +122 °F)
    Storage temperature: -40 °C to +60 °C (-40 °F to +140 °F)
    Working humidity Non-condensing (< 10 °C [50 °F]), relative humidity ≤90% (10 °C to 30 °C [50 °F to 86 °F]), relative humidity ≤75 % (30 °C to 40 °) C (86 °F to 104 °F)), relative humidity ≤ 45 % (40 °C to 50 °C (104 °F to 122 °F))
    altitude Working elevation: 3,000 m (9,842 ft)
    Storage elevation: 12,000 m (39,370 ft)
    size 230 x 83.7 x 45.4mm (9.06 x 3.30 x 1.39 in)
    Weight (instrument only) 419 g (15 oz)
    safety IEC 61010-1, pollution degree 2
    IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
    IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
    Protection level IEC 60529: IP30, when not in operation
    Radio frequency certification FCC ID: T68-FBLE IC: 6627A-FBLE
    Electromagnetic compatibility (EMC) International Standard: IEC 61326-1: Portable, Electromagnetic Environment, IEC 61326-2-2 CISPR 11:1 Group, Class A, Korea (KCC): Class A Equipment (Industrial Broadcasting and Communication Equipment) USA (FCC): 47 CFR 15 B subsection. This product is considered to be exempt from inspection in accordance with Section 15.103.
    Temperature Coefficient Above 28°C or below 18°C, an increase of 0.1 × per degree Celsius

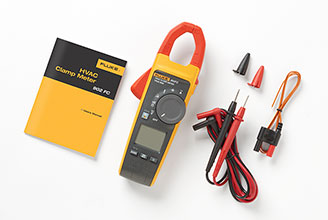

    Model Name description
    FLK-902 FC The 902 FC HVAC Clamp Meter
    includes:
    • TL75 test leads (1 pair)
    • 80BK Integrated Digital Multimeter Temperature Probe (1)
    • AA alkaline battery (2)
    • Soft carrying case
    • User manual
    • Calibration statement
    •
