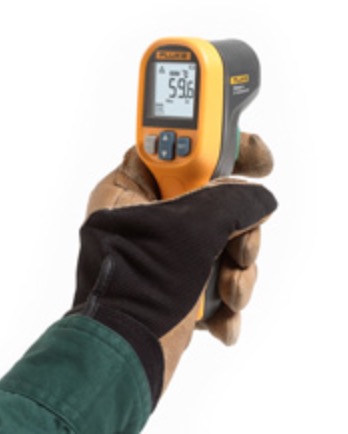

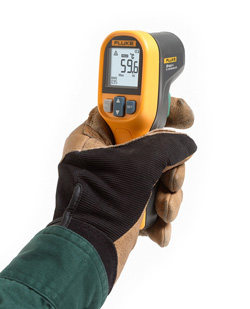

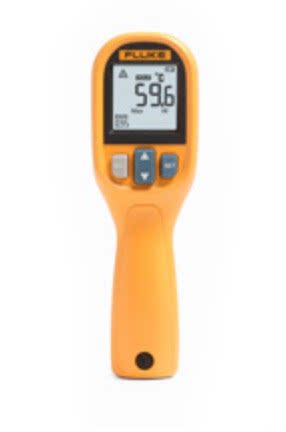

Fluke 59 Handheld Infrared Thermometer
Basic overviewFluke 59 infrared temperature meter, accurate temperature measurement, is expected. Fluke 59 is a tool to assist electrical engineers in their daily electrical maintenance and commissioning installations. It provides a fast and accurate way to detect the surface temperature of an object, and its compact and compact design makes it easier for users to carry and get started. At the same time, Fluke 59 inherits the high reproducibility, low scattering, high energy level and high durability of Fluke infrared thermometer. It reflects Fluke's higher requirements for accurate temperature measurement and is more suitable for accurate temperature measurement in industrial environments. Features - Temperature range – 18°C to 275°C
- ±2% or ±2°C of accuracy reading
- Distance coefficient ratio of 8:1 (90% energy level)
- ±1% or ±1°C of repeatability readings
- Single point laser aiming
- Automatic reading for 7 seconds
- backlight
|  |
Technical Parameters | specification |
| Temperature range | | | – 18°C - 275°C (0°F - 525°F) | |
| Accuracy | | 100 ° C - 275 ° C (212 ° F - 515 ° F): | ±2% of reading | | 0°C - 100°C (32°F - 212°F): | Reading ± 2 ° C (3.5 ° F) | | Below 0°C (32°F) | Reading ±3 ° C (5.5 ° F) | |
| Repeatability | | | ±1% of reading or ±1 °C, take a large value | |
| Emissivity | |
| Distance coefficient ratio | |
| Response time | | | Less than 500 milliseconds | |
| display resolution | |
| Spectral response | | | 6.5 – 18 um thermopile detector | |
| Display remains for 7 seconds | |
| LCD backlight | |
| Temperature unit | |
| Low battery indicator | |
| Working temperature | | | 0°C - 50°C (32°F - 120°F) | |
| Relative humidity | | | 10% - 90% RH, no condensation | |
| storage temperature | | | -20°C - 65°C (-4°F - 150°F) without battery | |
| power supply | |
| Battery Life | |
| weight | |
| Size (length, width, height) | |
| standard | | | Complies with electromagnetic radiation and response standards EN 61326-1 | | | | | | General safety standard EN 61010-1 | | | Laser safety standard EN 60825-1 | |
| Certification | |
| Warranty | |
Why choose an infrared thermometer?
Temperature can be the primary signal when there is a problem with electrical or mechanical equipment. How to determine the high temperature point of the switchboard, engine overheating, HVAC system failure? The answer is to choose to use a handheld non-contact infrared thermometer. The infrared thermometer allows temperature measurements in difficult-to-touch areas for easy troubleshooting.
Fluke 59E/59E+ Infrared Thermometer
Product Overview: Fluke is a leader in the test tool industry. With 65 years of experience, it produces the Fluke 59E/59E+ infrared thermometer. The accuracy of the instrument ensures the accuracy of the measurement and the price is also within your budget. This lightweight, compact infrared thermometer can withstand a drop impact of 1 meter, so you can use it with confidence.
Main characteristics
- Precision laser technology for more accurate and repeatable measurements
- LCD large display with backlight for easy viewing and reading of information
- Lightweight and compact design for easy loading of the instrument into the toolbox
- 59E: 8:1 distance to spot size ratio
- 59E+: 10:1 distance to spot size ratio
- IP40 protection provides additional protection
- Displays the minimum, maximum or average temperature, or the difference between the two measurements
- High temperature and low temperature alarms for quick display of measured values that exceed limits
- The power supply is one (1) AA battery
- one year warranty
| Technical specifications (FLUKE 59E/FLUKE59E+) |
| temperature range | 59E: -30 °C to 350 °C (-22 °F to 662 °F)
59E+: -30 °C to 400 °C (-22 °F to 752 °F) |
| Accuracy (geometric correction at ambient temperature of 23 °C ± 2 °C) | ≥ 0 °C: | 59E: Reading ± 2.0 °C or ± 2.0 %, take the larger value of
59E+: reading ± 1.5 °C or ± 1.5%, take the larger value |
| ≥-10 °C to <0 °C: | ± 2.0 °C |
| < -10 °C: | ± 3.0 °C |
| ≥ 32 °F: | 59E: Reading ± 4.0 °F or ± 2.0 %, take the larger value of
59E+: reading ± 3.0 °F or ± 1.5 %, whichever is greater |
| ≥ 14 °F to < 32 °F: | ± 4.0 °F |
| < 14 °F: | ± 6.0 °F |
| Response time (95%) | <500 ms (95% of reading) |
| Spectral response | 8 mm to 14 mm |
| Emissivity | 0.10 to 1.00 |
| Distance to spot size ratio | 10:1 (calculated when the energy is 90%) |
| Display resolution | 0.1 °C (0.2 °F) |
| Repeatability (% of reading) | 59E: ±1.0 % of reading or ±1.0 °C
(±2.0 °F), take the larger value of
59E+: ± 0.8 % of reading or ±1.0 °C
(±2.0 °F), whichever is greater |
| power supply | 1 AA IEC LR06 battery |
| Battery Life | 12 hours when turning on the laser and backlight |
| weight | 220 g (7.76 oz) |
| size | (156 x 80 x 50) mm (6.14 x 3.15 x 2) in |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20 °C to +60 °C (-4 °F to 140 °F), no battery |
| Working humidity | 10 % - 90 % relative humidity, no condensation at 30 °C (86 °F) |
| Working elevation | Average elevation 2000 m |
| Storage elevation | Average elevation 12000 m |
| Drop test | 1 m |
| Degree of protection (IP) | IP40 as specified in IEC 60529 |
| Shock and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
| Compliance | EN/IEC 61010-1 |
| Laser safety | FDA and EN 60825-1 Level 2 |
| Electromagnetic compatibility standard | 61326-1 EN 61326-2 |

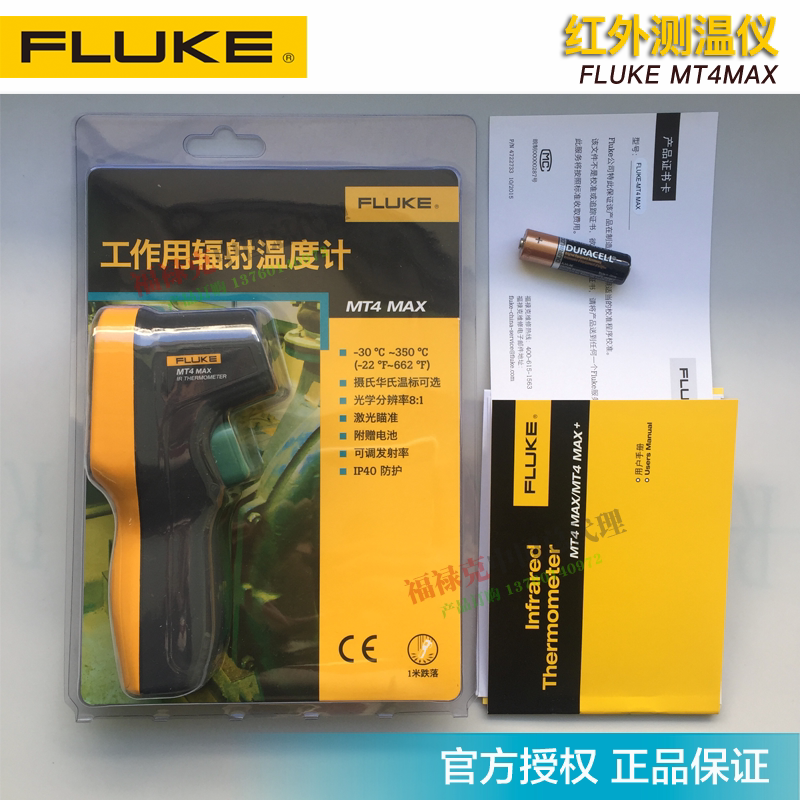

Fluke MT4 MAX, MT4 MAX+ Infrared Thermometer
Suitable for your budget, suitable for your work!Basic overviewFluke is a leader in the test tool industry with 65 years of experience in producing MT4 MAX, MT4 MAX+ infrared thermometers. The accuracy of the instrument ensures the accuracy of the measurement and the price is also within your budget. This lightweight, compact infrared thermometer can withstand a drop impact of 1 meter, so you can use it with confidence. Features - Precision laser technology for more accurate and repeatable measurements
- LCD large display with backlight for easy viewing and reading of information
- Lightweight and compact design for easy loading of the instrument into the toolbox
- MT4 MAX: 8:1 distance to spot size ratio
MT4 MAX+: 10:1 distance to spot size ratio - IP40 protection provides additional protection
- Displays the minimum, maximum or average temperature, or the difference between the two measurements
- High temperature and low temperature alarms for quick display of measured values that exceed limits
- The power supply is one (1) AA battery
- one year warranty
|  |
Technical Parameters | specification |
| temperature range | MT4 MAX: -30 °C to 350 °C (-22 °F to 662 °F)
MT4 MAX+: -30 °C to 400 °C (-22 °F to 752 °F) |
| Accuracy (geometric correction at ambient temperature of 23 °C ± 2 °C) | | ≥ 0 °C: | MT4 MAX: reading ± 2.0 °C or ± 2.0%, take the larger value
MT4 MAX+: reading ± 1.5 °C or ± 1.5%, take the larger value | | ≥-10 °C to <0 °C: | ± 2.0 °C | | < -10 °C: | ± 3.0 °C | | | | | ≥ 32 °F: | MT4 MAX: Read ± 4.0 °F or ± 2.0 %, take the larger value
MT4 MAX+: Read ± 3.0 °F or ± 1.5 %, take the larger value | | ≥ 14 °F to < 32 °F: | ± 4.0 °F | | < 14 °F: | ± 6.0 °F | |
| Response time (95%) | <500 ms (95% of reading) |
| Spectral response | 8 mm to 14 mm |
| Emissivity | 0.10 to 1.00 |
| Distance to spot size ratio | 10:1 (calculated when the energy is 90%) |
| Display resolution | 0.1 °C (0.2 °F) |
| Repeatability (% of reading) | MT4 MAX: ± 1.0 % of reading or ±1.0 °C
(±2.0 °F), take the larger value of
MT4 MAX+: ± 0.8 % of reading or ± 1.0 °C
(± 2.0 °F), whichever is greater |
| power supply | 1 AA IEC LR06 battery |
| Battery Life | 12 hours when turning on the laser and backlight |
| weight | 220 g (7.76 oz) |
| size | (156 x 80 x 50) mm (6.14 x 3.15 x 2) in |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20 °C to +60 °C (-4 °F to 140 °F), no battery |
| Working humidity | 10 % - 90 % relative humidity, no condensation at 30 °C (86 °F) |
| Working elevation | Average elevation 2000 m |
| Storage elevation | Average elevation 12000 m |
| Drop test | 1 m |
| Degree of protection (IP) | IP40 as specified in IEC 60529 |
| Shock and shock | IEC 68-2-6 2.5 g, 10 to 200 Hz, IEC 68-2-27, 50 g, 11 ms |
| Compliance | EN/IEC 61010-1 |
| Laser safety | FDA and EN 60825-1 Level 2 |
| Electromagnetic compatibility standard | 61326-1 EN 61326-2 |
