Ampe kìm đo dòng rò, Fluke F368 F368FC F369 F369FC, leakage current clamp table ,FLUKE368FC FLUKE369FC

  • Đăng ngày 08-11-2018 12:22:02 PM - 698 Lượt xem
  • Mã sản phẩm: Fluke F368 F368FC F369 F369FC

  • Tình trạng sản phẩm:


    True RMS Leakage Current Clamp Meter

    Reduce downtime - find leaks without removing equipment from the production line

    The Fluke 368/369 True RMS Leakage Current Clamp Meter helps users continuously detect, archive, record, and compare leakage current readings to prevent unplanned downtime and timely discovery of GFCI and RCD intermittent trips, all without the need to take equipment from the production line Remove it.
    The Fluke 368 has a large jaw diameter of 40 mm and the Fluke 369 has a large jaw diameter of 61 mm for use with large conductors. The clamp clamp is completely shielded to accurately capture very weak leakage signals while minimizing external electromagnetic interference.
    The 368FC/369FC also enables wireless data connectivity via Fluke Connect. As part of Fluke Connect®, the industry's largest software system, and with more than 40 wireless test tools, the 368FC/369FC allows you to continuously track changes in leakage current to help identify potential failures and avoid serious problems due to small problems.
    * In addition to FC and related functions, 368 has the same electrical performance and measurement functions as 368 FC.

    * In addition to FC and related functions, 368 has the same electrical performance and measurement functions as 368 FC.

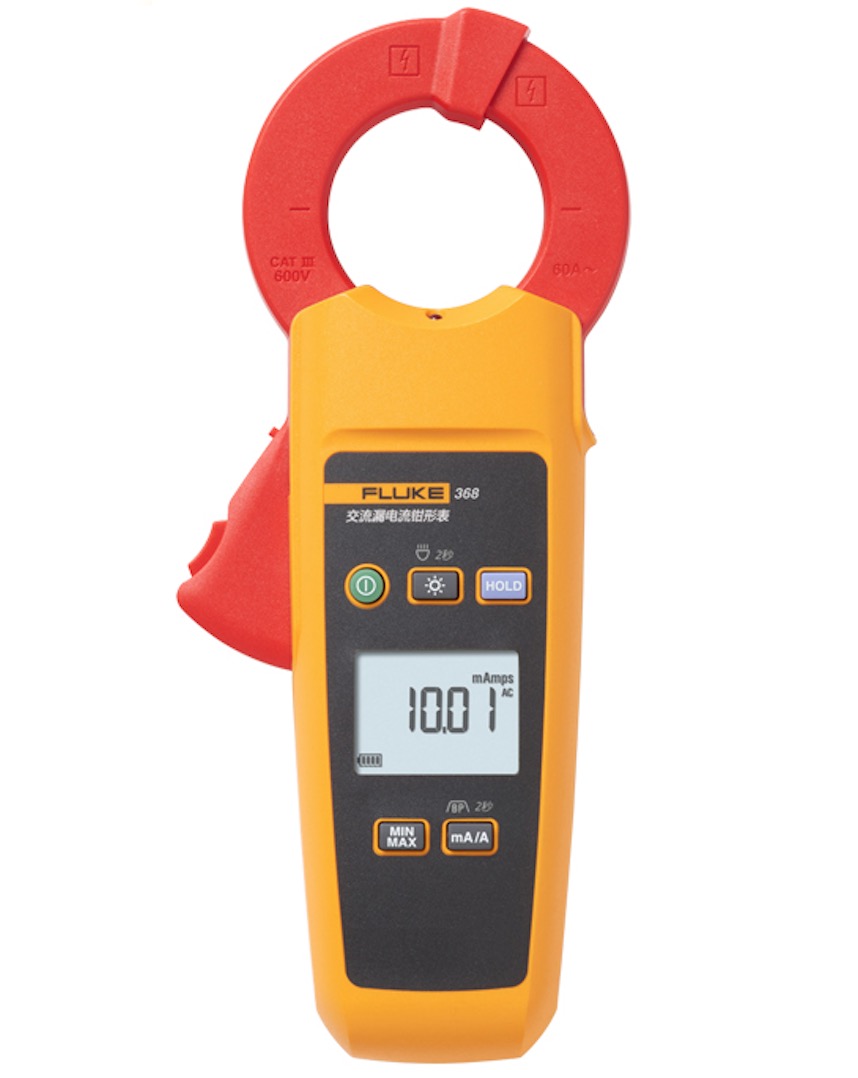

    368 product features
    • True rms measurement ensures accurate measurement of complex, non-sinusoidal waveforms
    • 40 mm jaw opening
    • The highest resolution is 1 μA and the minimum range is as low as 3 mA (maximum measurement current is 60 A)
    • Optional to turn on the filter function to eliminate noise in non-operating frequency bands
    • Maximum/minimum/average reading and hold function
    • Forward LED work lights that assist in working in dark junction cabinets
    • Backlit display; automatic backlight off and auto power off for extended battery life
    • CAT III 600V safety rating
    • Internal memory record: up to 65,000 measurement points

    369 product features
    • True rms measurement ensures accurate measurement of complex, non-sinusoidal waveforms
    • 61 mm jaw opening
    • The highest resolution is 1 μA and the minimum range is as low as 3 mA (maximum measurement current is 60 A)
    • Optional to turn on the filter function to eliminate noise in non-operating frequency bands
    • Maximum/minimum/average reading and hold function
    • Forward LED work lights that assist in working in dark junction cabinets
    • Backlit display; automatic backlight off and auto power off for extended battery life
    • CAT III 600V safety rating
    • Internal memory record: up to 65,000 measurement points


    Technical Parameters
    Electrical technical indicators
    Measurement function Alternating current
    AC current range 3 mA, 30 mA, 300 mA, 3 A, 30 A, 60 A
    Range selection mA / A: Manual selection of
    3 mA / 30 mA / 300 mA: automatic selection
    3 A / 30 A / 60 A: automatic selection
    Range/resolution 3 mA1 / 0.001 mA
    30 mA / 0.01 mA
    300 mA / 0.1 mA
    3 A / 0.001 A
    30 A / 0.01 A
    60 A / 0.1 A
    Accuracy – activates the filter (40 to 70 Hz) and turns off the filter (40 to 1 kHz) 2 3 mA – 30 A
    60 A
    1% + 5 digits
    2% + 5 digits
    frequency 40 Hz to 1 kHz
    Crest factor ="3"
    After calibration, the accuracy is valid for one year. Accuracy is expressed as ± (% reading + digits) with a reference temperature of 23 ± 5 °C and a maximum relative humidity of 80%.
    1 Minimum value is 10 μA true rms value.
    2 exceeds TC / °C 18 °C to 28 °C, 0.02 + 1
    Body characteristics
    Display (LCD) Digital reading: 3300 words
    Display update rate 4 times / sec
    Maximum measurable wire diameter 40mm (F368/368FC); 61 mm (F369/369FC)
    size 234  x 101 x 46 mm ( F368/368FC)
    257 x 116 x 46 mm (F369/369FC)
    weight 500g (F368/368FC)
    600g (F369/369FC)
    battery 2 AA, IEC LR6, NEDA 15A, alkaline
    Battery Life Expect battery life to exceed 150 hours without backlights and spotlights
    Automatic shut-down The clamp will automatically shut down after 15 minutes of inactivity
    Safety and environmental regulations
    General safety IEC 61010-1: Pollution degree 2
    Measurement safety IEC 61010-2-032: CAT III 600 V / CAT IV 300 V
    Operating temperature -10 °C to +50 °C
    Storage temperature -40 °C to +60 °C
    Working humidity  No condensation (<10 °C)
    90% relative humidity (10 °C to 30 °C)
    75% relative humidity (30 °C to 40 °C)
    45% relative humidity (40 °C to 50 °C)
    Protection level IEC 60529: IP30 (clamp closure)
    Working elevation 2000 m
    Storage elevation 12000 m
    Current sensor action category IEC 61557-13: Class 1, ≤100 A / m
    Electromagnetic compatibility (EMC)
    International standard
    IEC 61326-1 Industrial electromagnetic environment
    CISPR 11 Group 1 Class B
    Group 1 The RF energy associated with the conducted energy needs to be generated and/or used inside the device, which is essential for the device's own internal functions.
    Class B The device is suitable for use in household appliances as well as any device that is directly connected to a low voltage network that powers residential buildings. When this equipment is connected to a test target, it may exceed the emission level specified in CISPR 11 requirements.
    Korea (KCC): Class A equipment (industrial broadcasting and communication equipment)
    Class A This product meets the requirements of industrial electromagnetic equipment, and should be noted by the seller or user. This equipment is designed for use in a commercial environment, not a residential environment.
    USA (FCC): 47 CFR Part 15 B. This product is considered to be a tax-free device in accordance with Section 15.103.
