Đồng hồ vạn năng Fluke, Fluke F279FC/F279FC/flex Thermal Imaging Multimeter FLUKE279FC Multimeter 3000FC
Đăng ngày 08-11-2018 11:37:08 PM - 748 Lượt xem
Mã sản phẩm: Fluke F279FC/F279FC/flex

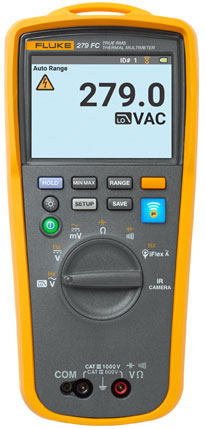

Fluke 279 FC True RMS Thermal Imaging Multimeter
The 279 FC is a full-featured digital multimeter with integrated thermal imaging designed to increase your productivity and confidence.Basic overviewFind. save. shared.
The Fluke 279 FC True RMS Thermal Imaging Multimeter helps you quickly identify, repair, verify, and report on a wide range of electrical issues, giving you the confidence to solve any problem.
Finding problems immediately
Thermal imaging multimeters are first-line troubleshooting tools for electrical equipment that can be used to check hot spots in high-voltage equipment and transformers, and to detect the heating of fuses, wires, insulators, connectors, splices, and switches. Scanning with a 279 FC thermal imager quickly detects many electrical problems from a safe distance. By combining the two tools into one tool, the thermal imaging multimeter can reduce the burden and increase productivity.
More functionally
compatible with iFlex (Flexible Current Clamp), expand your measurement capabilities, and measure currents in deep, hard-to-reach spaces (up to 2500 A ac current) with a large, full-color LCD display for added convenience View images and readings clearly. Rechargeable batteries with a battery life of more than 10 hours allow you to use the entire day under normal conditions.
Transfer measurement results

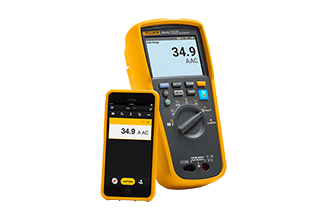

With the built-in Fluke Connect®, results can be wirelessly transmitted to the phone for quick reporting and verification that work is done. Better troubleshooting by analyzing trends and monitoring real-time measurements on your smartphone screen. Create and email reports on site. Features - Full-featured multimeter with built-in thermal imager
- A total of 15 measurement functions, including: AC voltage (with low-pass filter), DC voltage, resistance, continuity, capacitance, diode detection, minimum / maximum / average, AC current (via iFlex flexible current probe ),frequency
- Thermal imaging enables rapid and safe detection of multiple electrical problems without the need for time-consuming testing and verification
- Two-in-one tools increase productivity – you don't have to go back to the repair room or the office to get a shared thermal imager or wait for a thermographer – solve the problem in a limited time!
- The iFlex Flexible Current Probe expands your measurement capabilities - measuring current in tight, hard-to-reach spaces (up to 2500 A AC current)
- Save wirelessly with smartphones up to 20 feet / 6.1 meters (without obstacles) to save measurements and images
- Image resolution – 80 x 60
- 3.5" / 8.89 cm color LCD screen
- Rechargeable lithium battery, can be used all day (10 hours or more) under normal working conditions
- American assembly
- Three-year standard warranty
- Auto power off to save power
- CAT III 1000 V, CAT IV 600 V measurement category
- Optional accessories: Fluke i2500-10 or i2500-18 iFlex® flexible current probe, Fluke BC500TDMM AC charger and Fluke BP500 lithium battery 3000 mAh
- Durable to withstand 3 m (9.8 ft) drop height, double insulated and textured rubber jacket for added protection
Fluke Connect Fluke Connect connects your meter to your phone via Bluetooth, helping you do more work faster and safer - Save wirelessly with smartphones up to 20 feet / 6.1 meters (without obstacles) to save measurements and images
- Better troubleshooting by analyzing trends and monitoring real-time measurements on your phone's screen
- Create and email reports on site. Is the report not enough?Fluke Connect features a ShareLive video call feature that displays live video and measurements on the same screen
Measuring ability - 1000 V AC and DC voltage measurement
- AC current up to 2500 A (via optional iFlex flexible current probe)
- Temperature measurement range -10 °C to 200 °C (14 °F to 392 °F)
- Can measure resistance up to 50 MΩ
- On and off
- Diode test
- Minimum and maximum recording functions automatically capture reading changes
- frequency
- 9999 μF capacitance measurement
- Accurately measure true rms voltage and current of nonlinear signals
Other functions - CAT IV 600 V, CAT III 1000 V safety measurement level
- Rechargeable lithium battery and charger
- Three-year warranty
- Hanging strap (optional) allows you to hang the meter when using the probe
- Soft carrying case (optional)
| |
Technical Parameters DMM |
Basic DC accuracy | 0.09% |
bandwidth | 1% 45 Hz to 65 Hz, full-time low pass filter |
Voltage | 1000 V AC/DC |
Alternating current | iFlex Flexible Current Probe (supplied with 279 FC/iFlex) |
resistance | 50 MΩ |
frequency | 100 kHz |
capacitance | 9,999 μF |
Continuity (with buzzer) | Have |
Diode test | Have |
Min/max record | Have |
Display hold | Have |
Infrared camera |
Infrared resolution | 80 x 60 |
Image capture frequency | 8 Hz |
Field of view | 36° (w) x 27° (h) |
NETD | ≤200 mK |
Infrared spectrum | 7.5 to 14 microns |
Center point | Yes (with center point temperature) |
Focus mechanism | focus |
Temperature range (selectable °C and °F) | -10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (9 °F) or (±5% of test results) |
Emissivity | 0.95 fixed |
Background compensation | Fixed at 20 °C |
Memory storage | About 100 images (internal) |
file format | Non-radiative.is2 |
General technical indicators |
type of battery | Rechargeable lithium battery (charging time: 4.5 hours) |
Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) |
Storage temperature | -20 oC to 60 oC (-4 °F to 140 °F) |
Relative humidity | 0% to 90% (0 °C to 35 °C) (32 °F to 95 °F) 0% to 75% (35 °C to 40 °C) (95 °F to 104 °F) 0% to 45 % (40 °C to 50 °C) (104 °F to 122 °F) |
altitude | 2000 m (6,561 ft) |
Temperature Coefficient | When the temperature exceeds 28 °C or falls below 18 °C (over 82 °F or below 64 ° F), the specified accuracy is increased by 0.1 x for each temperature increase or decrease of 1 °C. |
Protection level | (IP) IP40 (when not working) |
Radio frequency | 2.4 GHz ISM band, 20 m range |
Certification | CE, CSA, FCC |
Meet safety standards | IEC 61010-1: Pollution class 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V |
Electromagnetic compatibility (EMC) | EN 61326-1:2012 |
size | 215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in) |
weight | 0.793 kg (1.75 lb) |
warranty period | Limited three-year warranty |
Model Name | description |

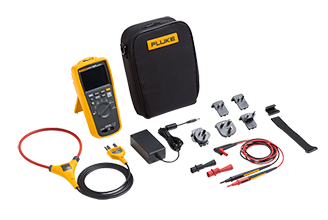

279 FC/iFlex true RMS | The 279 FC/iFlex True RMS Thermal Imaging Multimeter contains: - 279 FC True RMS Thermal Imaging Multimeter
- (1 pair) TL175 test line
- 45.72 cm (18 in) iFlex Flexible Current Probe
- Rechargeable lithium battery and charger
- Soft carrying case
|
-
-
