AMPE KÌM ĐO ĐIỆN, Fluke F312/F317/F319/F362/F365 Clamp Meter

  • Đăng ngày 08-11-2018 11:57:09 AM - 1348 Lượt xem
  • Mã sản phẩm: Fluke F312/F317/F319/F362/F365

  • Tình trạng sản phẩm:

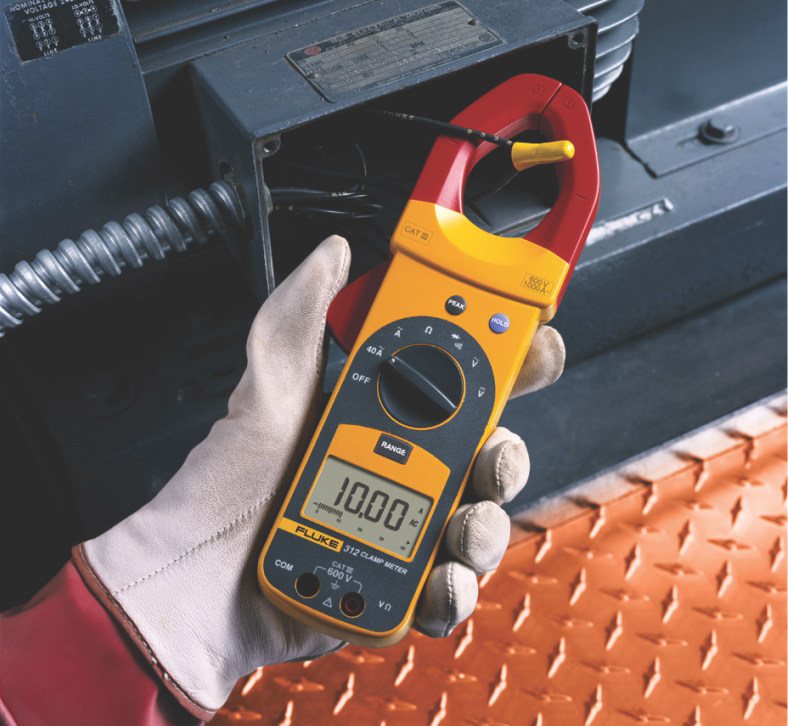

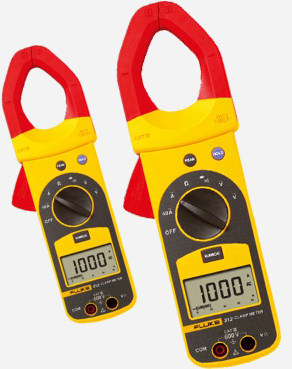

    Fluke Fluke 312 Digital Clamp Meter

    The Fluke 312  Digital Clamp Meter is a high quality, economical product with an AC range of 1000A and a resolution of up to 0.01A. It can meet the testing needs of most industrial applications and meet the needs of maintenance and maintenance. Meets three types of 600 volts and two types of 1000 volt safety standards, safe and reliable.One year warranty with a carrying case, test leads and instructions.
    Features
    • 1000A AC current range
    • High resolution of 0.01A
    • 750V AC/1000VDC voltage range
    • With diode test function
    • CAT III 600V, CAT II 1000V safety rating
    • Opening size 36mm
    • Operating temperature: 0 ° C to 40 ° C
    • Working altitude of 2000m
    • Battery: 9V
    • 1 year warranty

    Technical Parameters
    Technical indicators
    AC current (50-500Hz)
    Range  40.00A
       400.0A
       1000A
    Resolution  0.01A
       0.1A
       1A
    Accuracy  1.9%±5 words
       50-60Hz
       2.5%±5 words
       60-500Hz
    AC voltage (50-500Hz)
    Range  400.0V/750V
    Resolution  0.1V/1V
    Accuracy  1.5% ± 5 words
    DC voltage
    Range  400.0V
       1000V
    Resolution  0.1V/1V
    Accuracy  1% ± 2 words
    resistance
    Range  400.0Ω
       4000Ω
    Resolution  0.1Ω/1Ω
    Accuracy  1% ± 3 words
    input resistance
    input resistance  10MΩ
    Maximum and minimum
    Maximum and minimum  500ms
    On and off
    On and off  <50Ω
    Secondary tube test
    Secondary tube test  To 2V
    Peak
    Peak  1ms
    Automatic shut-down**
    Automatic shut-down**  30 minutes
    Jaw
    Jaw  40mm

    Fluke 317/319 True RMS AC/DC Digital Clamp Meter / Ammeter

    The Fluke 317/319 high-performance multi-function digital clamp-on ammeter is tailored to the needs of electrical engineers for the functional design requirements of clamp meters. Fluke 317/319 digital clamp ammeter provides higher accuracy current measurement, AC increased from 1.9% to 1.5%; DC increased from 2.5% to 1.5%, accurate 40A small range high accuracy current test - 0.01A high resolution Rate, 1.6% high precision measurement. Engineers measure small currents much more often than large currents.
    Basic overview
    The Fluke 317/319 True RMS AC-DC Digital Clamp Meter has an ergonomic design and its streamlined shape makes it easier to hold in your hand. These slim, rugged digital clamp ammeters are ideal for easy 1000A current measurement (319) and for use in confined spaces. The 317 and 319 have an accurate 40 A small range. In addition to a range of test functions, the FLUKE 319 digital clamp ammeter also features start-up current and frequency for easy measurement of motors and lighting.
    Features
    • Unique 40A small range, high accuracy current test - 0.01A high resolution, 1.6% high precision measurement
    • The pliers are slim and lightweight, making them more suitable for use in confined spaces.
    • Large backlit display for easy reading in dark environments
    • Start current function (319) to measure the starting current of devices such as motors and lighting
    • Current frequency measurement
    • Digital clamp meter accuracy is higher than 0.01A and 0.1V
    • 1000A AC/DC Current Measurement (319)
    • 600V AC/DC voltage measurement
    • 4000Ω resistance measurement
    • Digital clamp meter sensitive on-off measurement
    • Automatic shutdown function to maximize battery life so that the meter can work when needed
    • Display retention function to keep measurement results on the screen
    • One year warranty

    Technical Parameters
    Technical specifications
    Digital display frequency
       6000 word resolution
    Battery low indicator
       Battery low indicator
    power supply
       3 AAA IEC LR03 batteries
    Digital clamp meter jaw opening
       1.45 in (37 mm)
    Clamp opening
       1.45 in (37 mm)
    Digital clamp meter size (length X width X height)
       6.39 in x 2.29 in x 1.20 in
       (162.4 mm x 58.25 mm x 30.5 mm)
    Digital clamp meter weight
       384g (including battery)
    Automatic range
       Ohms
    Safety
       CE
       EN/IEC 61010-1 and IEC 61010-2-032
       Installation category III, 600V working environment
    317 Technical Specifications
    Alternating current
    Range  40.00 A, 600.0 A
    Resolution  0.01 A, 0.1 A
    Accuracy  1.6% ± 6 words (50-60 Hz) {40 A}
       2.5% ± 8 words (60-500 Hz) {40 A}
       1.5% ± 5 words (50-60 Hz) {600 A}
       2.5% ± 5 words (60-500 Hz) {600 A}
    Crest Factor add 2% into spec for CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A
    Communication response  Valid value
    DC
    Range  40.00 A, 600.0 A
    Resolution  0.01 A, 0.1 A
    Accuracy  1.6% ± 6 words (40 A)
       1.5% ± 5 words (600 A)
    AC voltage
    Range  600.0 V
    Resolution  0.1 V
    Accuracy  1.5% ± 5 words (20-500Hz)
    Communication response  Effective straight
    DC voltage
    Range  600.0 V
    Resolution  0.1 V
    Accuracy  1% ± 4 words
    Resolution
    Range  400.0 Ω, 4000 Ω
    Resolution  0.1 Ω, 1 Ω
    Accuracy  1% ± 5 words
    On-off measurement
       ≤ 30 Ω
    Starting current
    Response time  incompatible
    Frequency measurement
    Range  incompatible
    Accuracy  incompatible
    Trigger level  incompatible
    319 Technical Specifications
    Alternating current
    Range  40.00 A, 600.0 A, 1000 A
    Resolution  0.01 A, 0.1 A, 1 A
    Accuracy  1.6% ± 6 words (50-60 Hz) {40 A}
       2.5% ± 8 words (60-500 Hz) {40 A}
       1.5% ± 5 words (50-60 Hz) {600/1000 A}
       2.5% ± 5 digit (60-500 Hz) {600/1000 A}
    Crest Factor and 2% to size CF > 2  3.0 Max @ 500 A, 2.5 Max @ 600 A, 1.4 Max @ 1000 A
    Communication response  Valid value
    DC
    Range  40.00 A, 600.0 A, 1000 A
    Resolution  0.01 A, 0.1 A, 1 A
    Accuracy  1.6% ± 6 words (40 A)
       1.5% ± 5 words (600/1000 A)
    AC voltage
    Range  600.0 V
    Resolution  0.1 V
    Accuracy  1.5% ± 5 words (20-500Hz)
    Communication response  Effective straight
    DC voltage
    Range  600.0 V
    Resolution  0.1 V
    Accuracy  1% ± 4 words
    Resolution
    Range  400.0 Ω
       4000 Ω
    Resolution  0.1 Ω
       1 Ω
    Accuracy  1% ± 5 words
    On-off measurement
       ≤ 30 Ω
    Starting current
    Response time  100 milliseconds
    Frequency measurement
    Range  5.0 - 500.0 Hz
    Accuracy  0.5% ± 5 words
    Trigger level  10 - 100 Hz ≥ 5 A, 5 - 10 Hz, 100 - 500 Hz ≥ 10 A
    Environmental parameters:
    Digital clamp meter operating temperature
       14°F to 122°F (-10 °C to 50 °C)
    Storage temperature
       -40 °F to 140 °F (-40 °C to 60 °C)
    Working humidity
       No fog (< 50 °F) (< 10 °C)
       90 % RH (50 °F to 86 °F) (10 °C to 30 °C)
       75 % RH (86 °F to 104 °F) (30 °C to 40 °C)
       45 % RH (104 °F to 122 °F) (40 °C to 50 °C)
       No fog
    Working altitude
       2000 meters above sea level
    Storage altitude
       12,000 meters above sea level
    IP indicator
       IP40
    Digital clamp meter vibration requirements
       Random MIL-PRF-28800F Class 2, 5-500 Hz, 30 minutes per axis
    Drop test requirement
       one meter
    EMI, RFI, EMC
       Non-specifically, as for the EMC environment, ≥ 0.1 V/m
    Temperature Coefficient
       0.1x (prescribed accuracy) / °C
       (<64 °F or > 82° F)
       (<18 °C or > 28 °C)

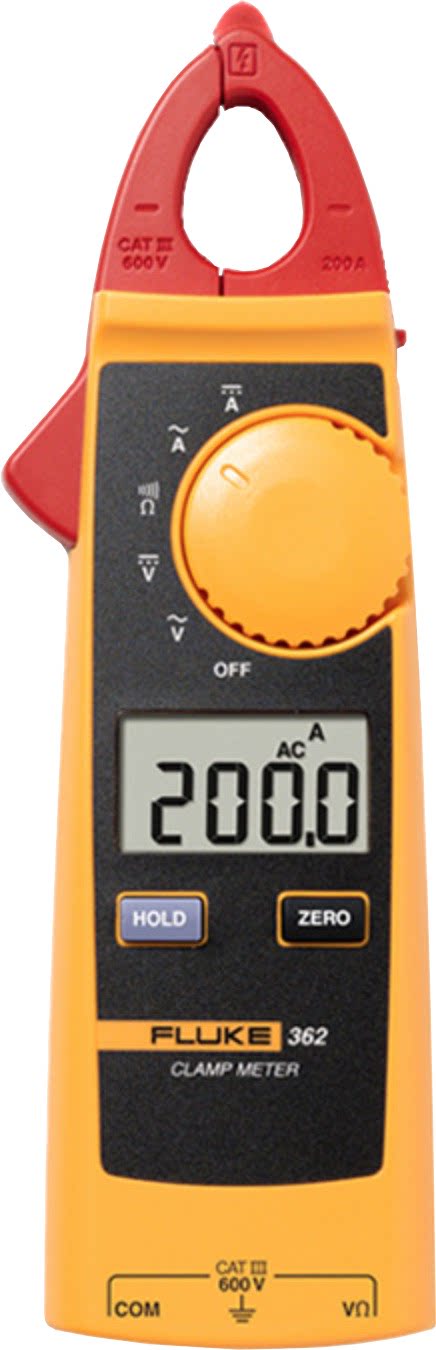

    Fluke 362 Clamp / Fluke 365 True RMS AC/DC Clamp Meter / Ammeter

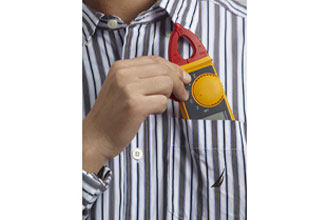

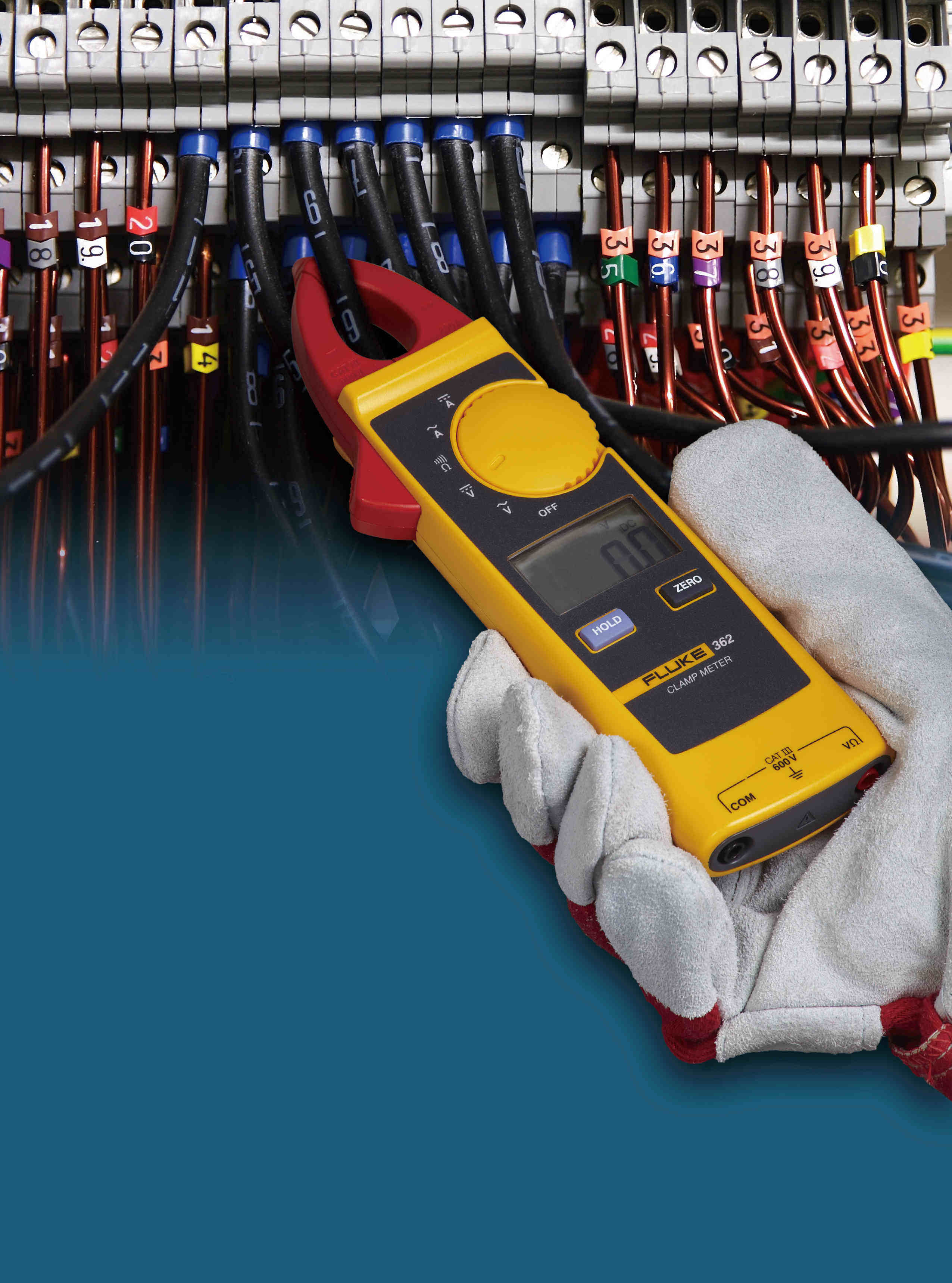

    The Fluke 362 is a small, light and thin pocket-type pliers. The thin and small beak-type clamps make it easier to measure dense cables. It makes the clamp meter easier to use and is durable. Basic maintenance tools that are easy to carry.

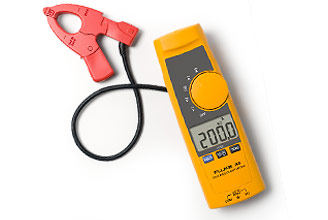

    Fluke 365 true RMS AC-DC clamp meter with detachable clamp head design, light body, more suitable for measurement in a small space; thin and small bird-nosed clamp head, easier to measure dense cable; built-in Flashlights and backlighting make readings easier.

    Features
    • Small, light and thin body
    • The small and thin clamp head design makes the measurement of dense cable easy, and the use of the clamp meter is simpler.
    • Compact design for one-handed operation
    • Large screen 2000 word display
    • 200A AC and DC, 600V AC and DC voltage range
    • 3000Ω resistance range, continuity test
    • Zero function, the display can be cleared for DC measurement
    • Reading hold
    • Security level: CAT III 600V


     Fluke 365 true RMS AC/DC clamp meter/current meter, light body, unique separable clamp head design, 1m extension cord, extension cord can be stowed when not in useØ  Triangular small and thin clamp head design makes the measurement of dense cable easy
    Ø  Built-in flashlight, backlight
    Ø  Compact design, one-handed operation
    Ø  large screen 2000 word display
    Ø  200A AC and DC current, 600V AC and DC voltage range
    Ø  6000Ω resistance range, continuity test
    Ø  Zero function, the display can be cleared for DC measurement
    Ø  True RMS measurement, can accurately measure nonlinear load circuit
    Ø  readings remain


    Technical parameters (Fluke 362)
      Range  Resolution Accuracy
    Alternating current  200 0.1A  2 % ± 5 words (45-65Hz) 2.5% ± 5 words (65-400Hz)
    DC 200 0.1A  2 % ± 5 words
    AC voltage  600 V  0.1 V  1.5 % ± 5 words (45-400Hz)
    DC 600 V  0.1 V  1 % ± 5 words
    resistance  300/3000Ω  0.1/1Ω 1 % ± 5 words
    On-off detection  <=70Ω
    maintain  •
    size  Length, width and height  205×60×22
      Clamp opening  18mm
      Weight (g) 196
    Security Level CAT III 600 V
    warranty period  2 years
    Technical parameters (Fluke 365)
    Technical Parameters
    Measurable conductor diameter 0.71" or 18 mm max
    Operating temperature -14 to 122oF (-10 to 50oC)
    Storage temperature -40 to 140oF (-40 to 60oC)
    Working humidity < 90% @ 10 to 30 oC, < 75% @ 30 to 40oC
    Working altitude 0 to 2000 m
    Clamp ammeter size 225 x 65 x 46 mm, (8.858 x 2.559 x 1.811 in.)
    Clamp type ammeter weight 275g, (10 oz.)
    Temperature Coefficient 0.01% oC
    (<18oC or > 28oC)
    warranty period 3 years
