AMPE KÌM ĐO ĐIỆN, Fluke F302+/F303/F305/F323/F324/F325 Clamp Meter
Đăng ngày 09-11-2018 12:01:33 AM - 941 Lượt xem
Mã sản phẩm: Fluke F302+/F303/F305/F323/F324/F325
Fluke 302+/303/305 AC Clamp Meter
Basic overviewFluke 302+/303/305 is Fluke's new compact AC clamp meter. This series of clamp ammeters is easy to use and meets the needs of everyday basic electrical maintenance. It has the following characteristics: AC current 400A (F302+), 600A (303), 999.9A (305), can meet the needs of customers with different applications; unlike the new fuselage design of the Fluke clamp meter, the Fluke 302+/303/305 AC clamp meter is more compact and beautiful, in line with the Chinese market. Requirements for product size, appearance and feel. Features - Different from the new fuselage design of the previous Fluke clamp meter, the Fluke 302+/303/305 AC clamp meter is more compact and beautiful, meeting the requirements of the Chinese market for product size, appearance and feel, making the use of the clamp ammeter become More flexible and simple;
- AC current 400A (302+), 600A (303), 999.9A (305), can meet the needs of customers with different applications;
- 30mm large jaws;
- Meets CAT IV 300V/CAT ||| 600V high security level;
- High accuracy of 1.8% (305 is 1.5%);

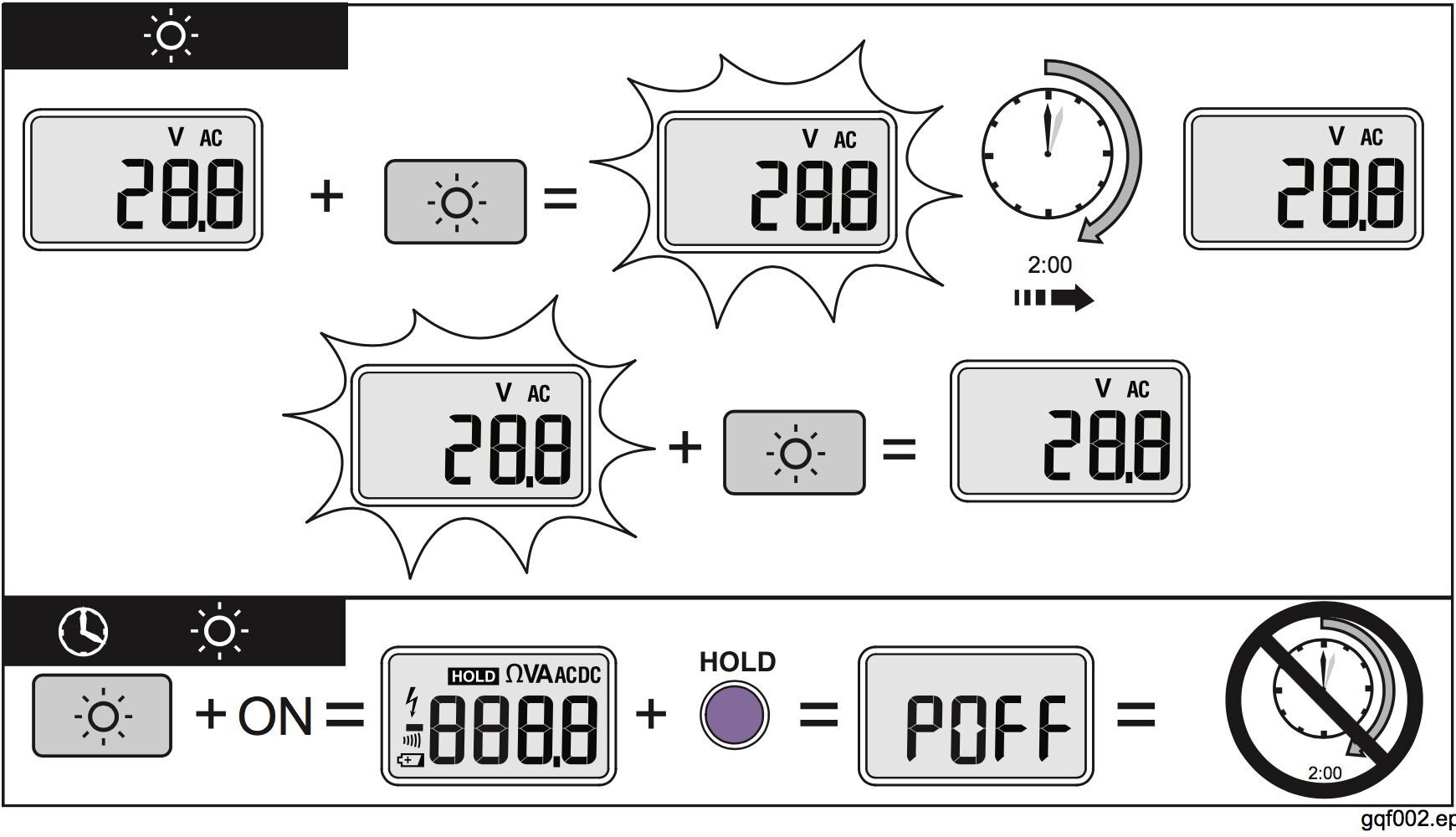

- All series of AC clamp meters have backlight function;
- Two-year warranty.
- Technical Parameters
Technical indicators |
| | 302+ | 303 | 305 |
Alternating current | Range | 400.0A | 600.0A | 999.9A |
Precision | 1.8% ± 5 bits (45Hz to 65Hz) 2.5% ± 5 bits (65Hz to 400Hz) | 1.8% ± 5 bits (45Hz to 65Hz) 2.5% ± 5 bits (65Hz to 400Hz) | 1.5% ± 5 digits (45Hz to 400Hz) |
AC voltage | Range | 600 | 600 | 600 |
Precision | 1.5% ± 5 digits (45Hz to 400Hz) | 1.5% ± 5 digits (45Hz to 400Hz) | 1.5% ± 5 digits (45Hz to 400Hz) |
DC voltage | Range | 600 | 600 | 600 |
Precision | 1.0%±5 | 1.0%±5 | 1.0%±5 |
resistance | Range | 400Ω-4000Ω | 400Ω-4000Ω | 400Ω-4000Ω |
Precision | 1%±5 | 1%±5 | 1%±5 |

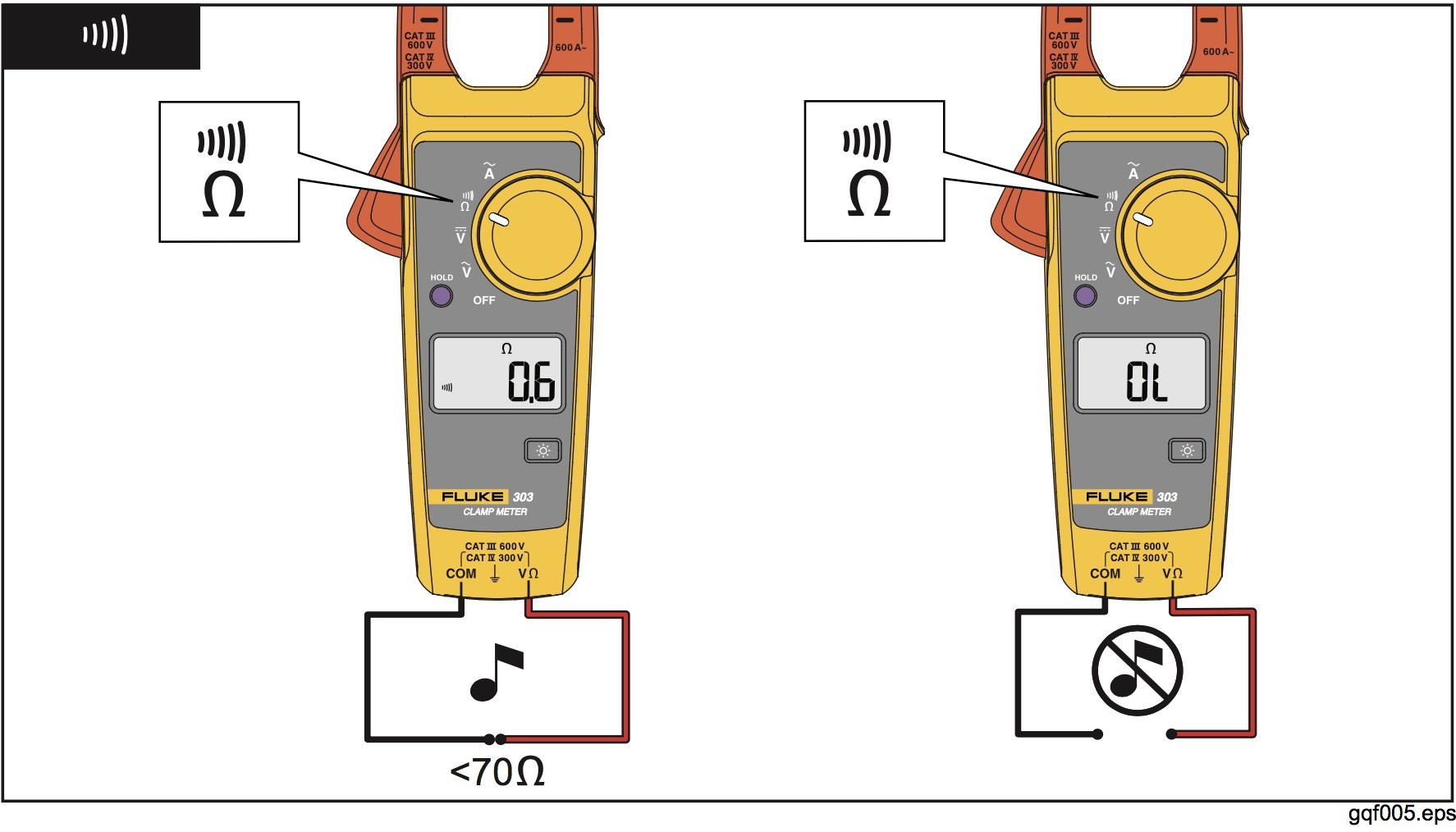

On-off measurement | ≤70Ω | ≤70Ω | ≤70Ω |
Backlit display | Yes | Yes | Yes |
Data retention | Yes | Yes | Yes |
size | Height x width x thickness (mm) | 207 X 75 X 34 | 207 X 75 X 34 | 207 X 75 X 34 |
Jaw size | 30 mm | 30 mm | 30 mm |
Security Level | CAT III 600 V | CAT III 600 V | CAT III 600 V |
Operating temperature | 0 -40 ° C | 0 -40 ° C | 0 -40 ° C |
Screen refresh rate | >2 times / sec | >2 times / sec | >2 times / sec |
Table pen | TL75 | TL75 | TL75 |
battery | 2 AA batteries | 2 AA batteries | 2 AA batteries |
Warranty | 2 years | 2 years | 2 years |

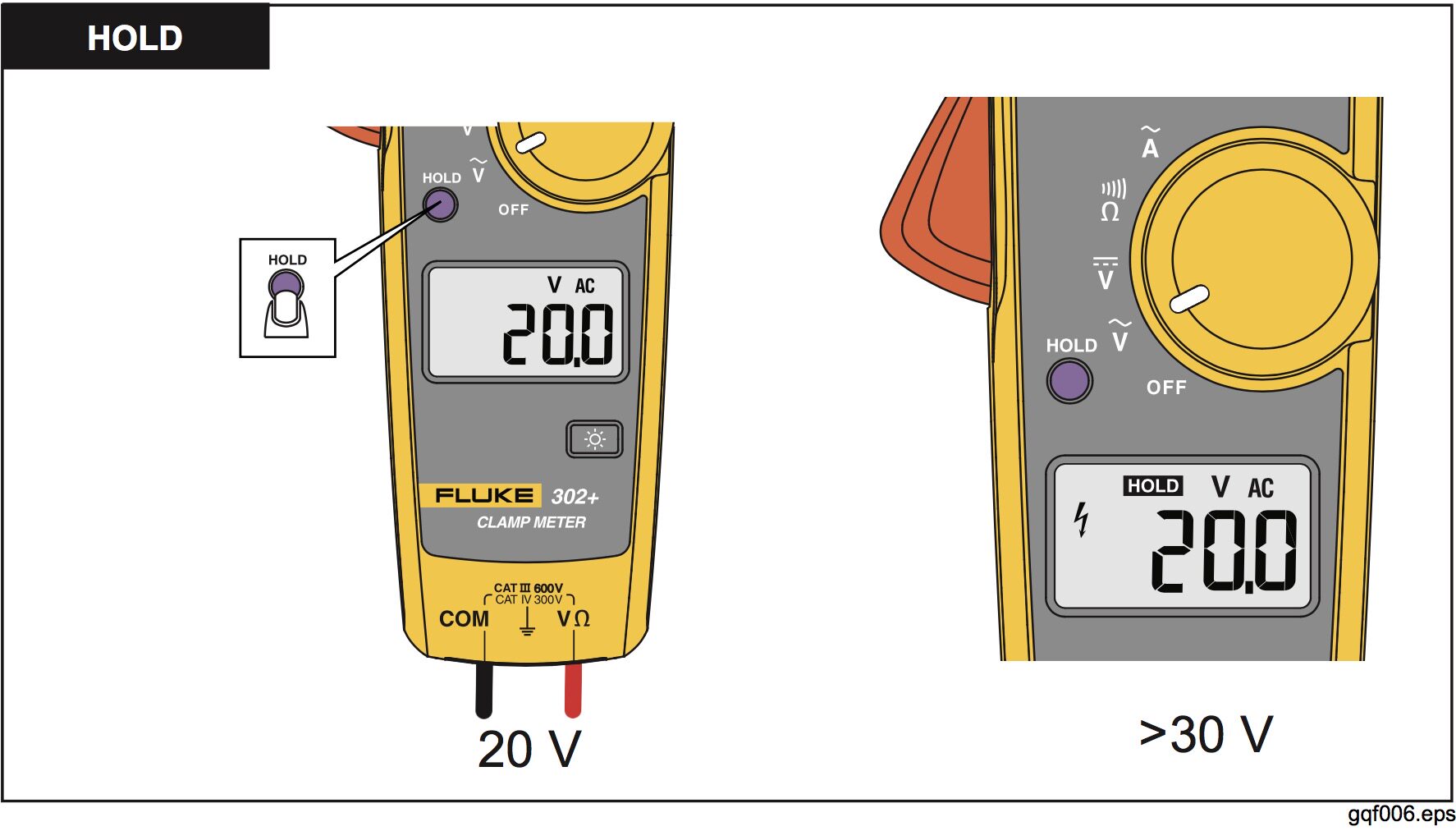

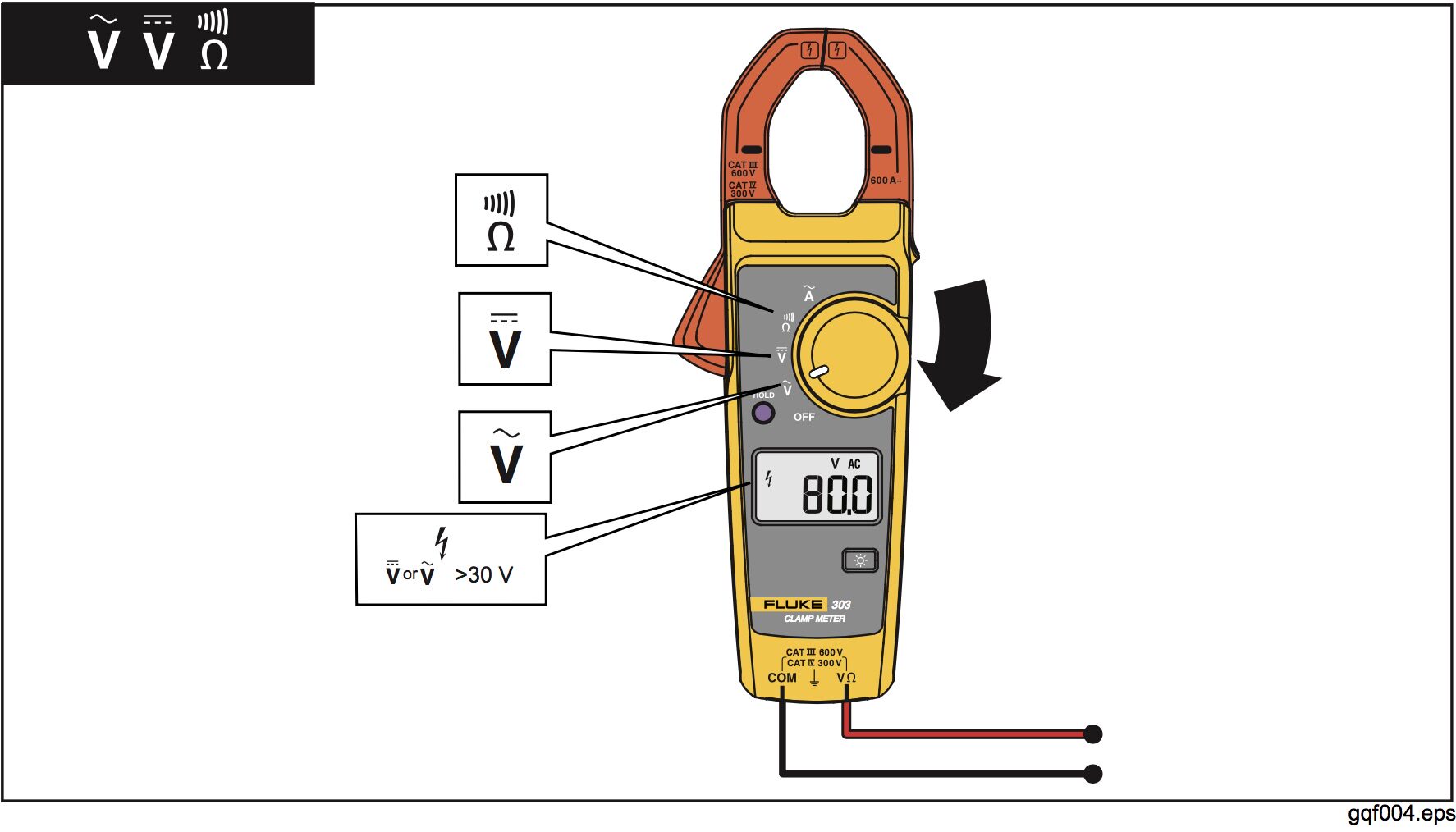

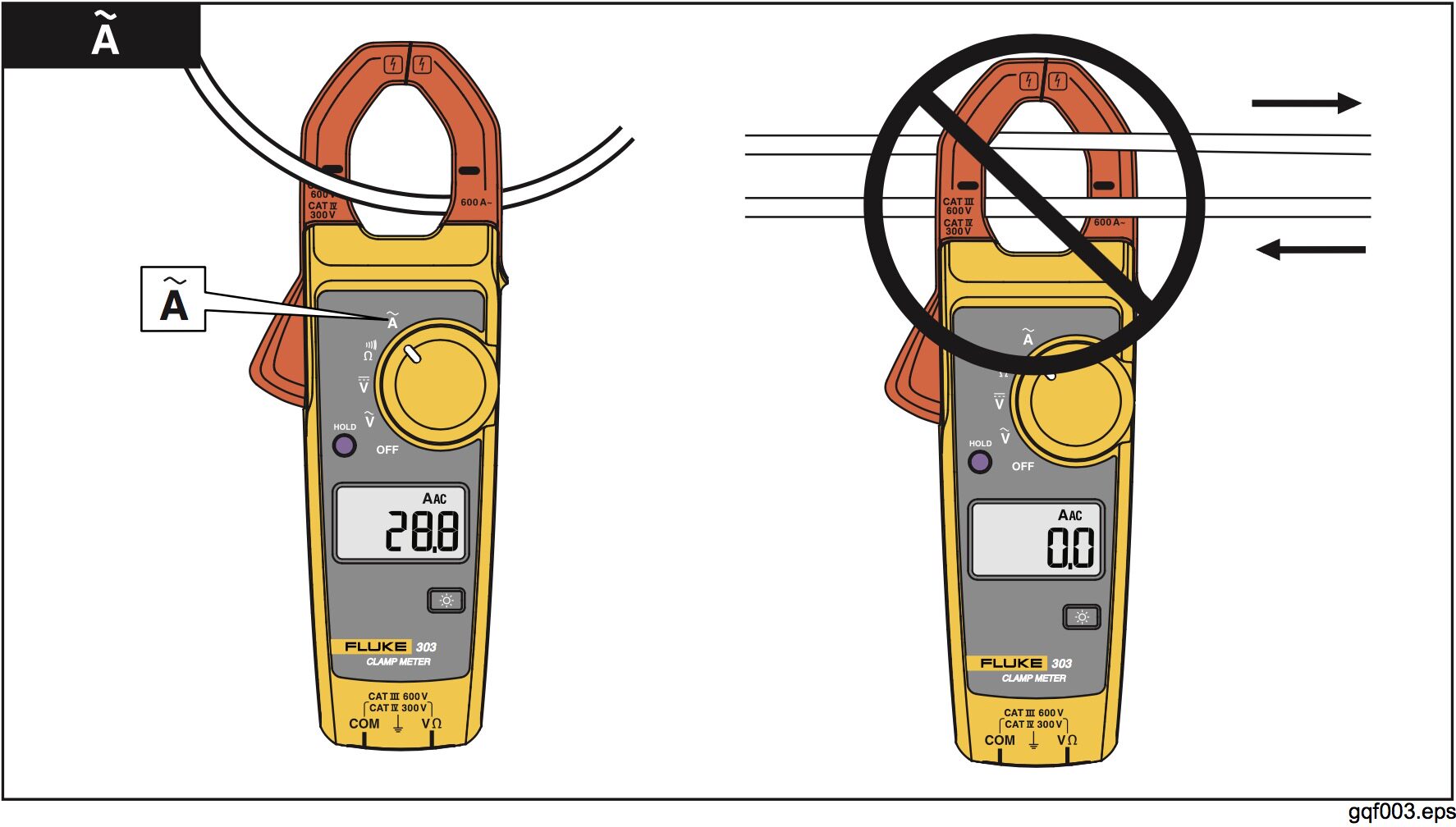

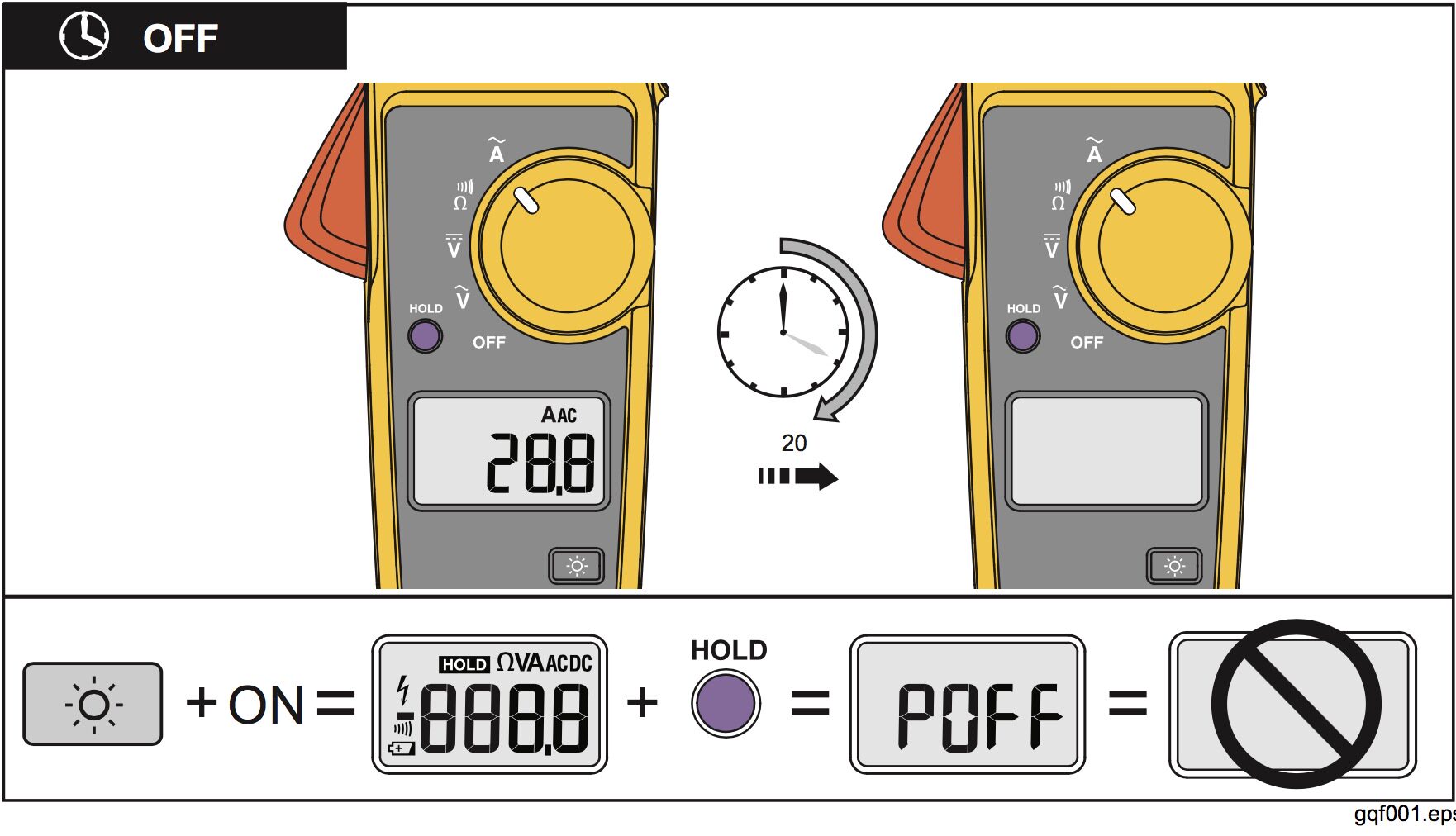

Simple operation
Fluke FLUKE 323/324/325 Clamp Meter
Fluke 320 Series Product Description:
Fluke is sturdy and durable. Fluke is reliable. Fluke is precise.
True RMS measurement and optimized ergonomics make the 320 Series Clamp the best commercial and residential electrician general troubleshooting tool. 323 , 324 and 325 are designed to verify the presence of load current, AC voltage and continuity of circuits, switches, fuses and contacts. These small and sturdy clamps are ideal for measuring currents up to 400 A and tight cable cars. The Fluke 325 also provides DC current and frequency measurements.
Product Features:
• Current range: 400 A AC and DC current measurement
• Voltage range: 600 V AC and DC voltage measurements
• Accurate measurement of true RMS AC voltage and current nonlinear signals
• Resistance measurement up to 40kΩ for continuity testing
• Temperature and capacitance measurements
• Frequency measurement
• Ultra-thin, ergonomic design
• Large, easy to read backlit display
• CAT IV 300V/CAT III 600 V safety rating
•Hold button
• Two-year warranty
Technical Parameters Specifications |
| 323 | 324 | 325 |
AC current | Range | 400.0 A | 40.00 A/400.0 A | 40.00 A/400.0 A |
Accuracy | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) | 1.5 % ± 5 digits (45 Hz to 400 Hz) Note: Add 2 % for Position sensitivity | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
DC current | Range | - | - | 40.00 A/400.0 A |
Accuracy | - | - | 2 % ± 5 digits |
AC voltage | Range | 600.0 V | 600.0 V | 600.0 V |
Accuracy | 1.5 % ± 5 digits | 1.5 % ± 5 digits | 1.5 % ± 5 digits |
DC voltage | Range | 600.0 V | 600.0 V | 600.0 V |
Accuracy | 1.0 % ± 5 digits | 1.0 % ± 5 digits | 1.0 % ± 5 digits |
Resistance | Range | 400.0 ? / 4000 ? | 400.0 ? / 4000 ? | 400.0 ? / 4000 ? / 40.00 k ? |
Accuracy | 1.0 % ± 5 digits | 1.0 % ± 5 digits | 1.0 % ± 5 digits |
Continuity | ≤ 70 ? | ≤ 30 ? | ≤ 30 ? |
Capacitance | - | 100.0 μ F to 1000 μ F | 100.0 μ F to 1000 μ F |
Frequency | - | - | 5.0 Hz to 500.0 Hz |
AC response | True-rms | True-rms | True-rms |
Backlight | - | Yes | Yes |
Data hold | Yes | Yes | Yes |
Contact temperature | - | -10.0 ° C to 400.0 ° C (14.0 ° F to 752.0 ° F) | -10.0 ° C to 400.0 ° C (14.0 ° F to 752.0 ° F) |
Min/Max | - | - | Yes |
Size | H x W x D (mm) | 207 x 75 x 34 | 207 x 75 x 34 | 207 x 75 x 34 |
Max wire diameter | 30 mm (600 MCM) | 30 mm (600 MCM) | 30 mm (600 MCM) |
Weight | 265 g | 208 g | 283 g |
Category rating | CAT III 600 V CAT IV 300 V | CAT III 600 V CAT IV 300 V | CAT III 600 V CAT IV 300 V |
Warranty | 2-year | 2-year | 2-year |
-
-
