Processing and customization: No | Brand: Tedea | Model: 1263 |
Type: Pressure | Material: metal | Material physical properties: conductor |
Material crystal structure: other | Production process: film | Output signal: analog type |
Protection level: IP66 | | |
. Single point, alloy aluminum products
. Measuring range: 50~300kg
. Overall accuracy: 0.02%
. Protection level: IP66
. Support table: 600X600mm
. OIML 3000
. NTEP 5000
. Ingredients scales, dosing systems, bench scales

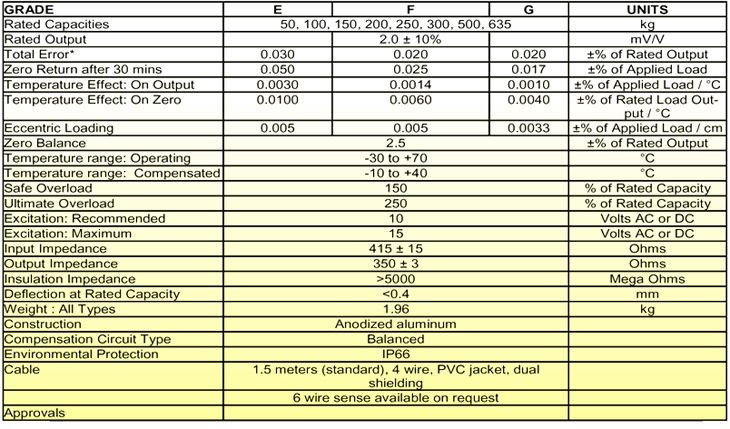

1263 Vishay load cell technical parameters

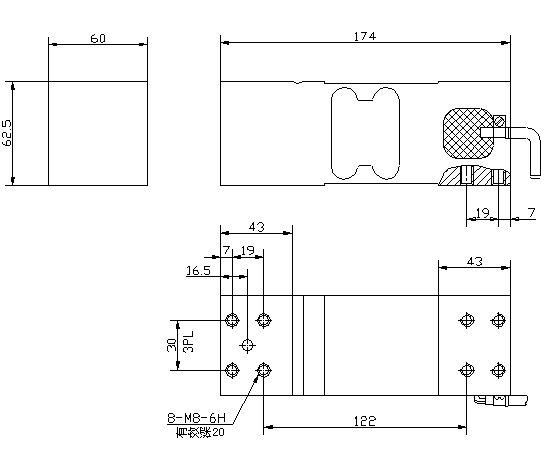

1263 Vishay load cell product dimensions
