mô-đun Thiết bị giám sát phân phối DC EDU02MC

  • Đăng ngày 18-04-2023 05:27:47 PM - 467 Lượt xem
  • Mã sản phẩm: S004444

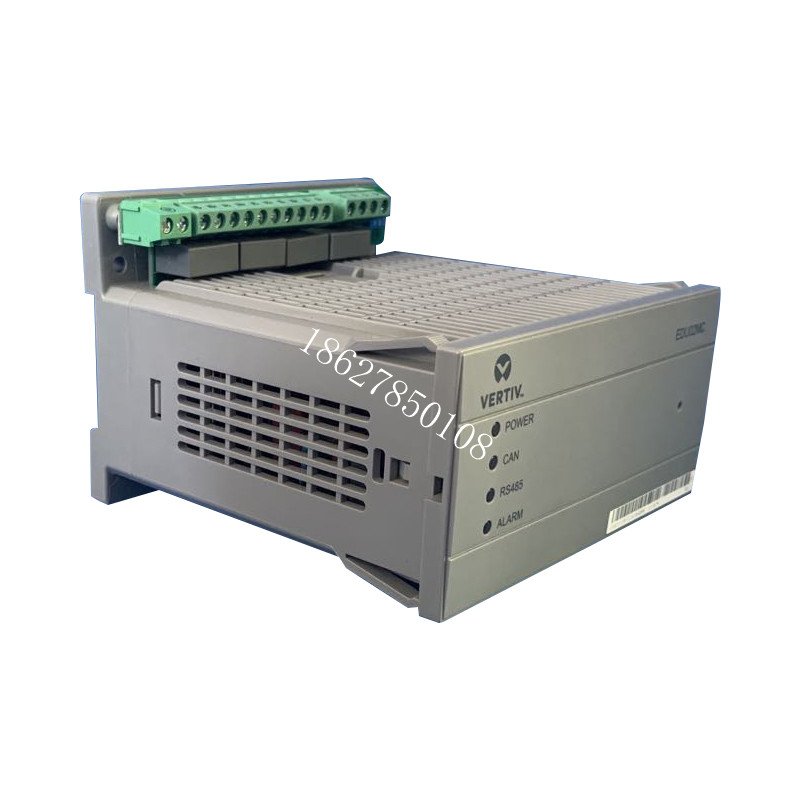

  • EDU02MC as a DC power distribution monitoring unit

    As a DC power distribution monitoring unit, EDU02MC completes functions such as DC signal acquisition, silicon chain detection, bus insulation monitoring, and
    protocol conversion. In addition, EDU02MC also has the functions of bus AC intrusion and DC mutual intrusion detection, and can cooperate with
    EGU02MC to realize AC intrusion. Branch location, DC cross channel location detection function, can perfectly meet the industry's latest needs for
    DC interference detection. It is one of the accessory monitoring units used with Zhu monitoring unit EMU10. When used as
    a protocol converter, it can convert the CAN communication of the three-phase ER series charging module into RS485 communication, and can be connected to
    the monitoring system of the cooperative factory to complete functions such as bus voltage monitoring, insulation detection, and silicon chain control.


    Tình trạng sản phẩm:


    Features:

    1: It is the host of the DC insulation tester, and it can realize the detection function of AC channeling and DC channeling at the same time.
    2: Detect 3-way voltage. 2 channels of current, 1 section of busbar insulation resistance, high resistance isolation between each channel, automatic control of
    1-7 silicon chains for voltage regulation, can be identified.
    3: Silicon chain open circuit and serious short circuit fault, and automatically enter the protection mode to prevent the control bus from losing power.
    4: Adopt the highly reliable DSP controller of American IT company.
    5: The dial is external, and can be operated with electricity, which is convenient for debugging.
    6: Compact structure, easy installation.
    7: Passed CE certification, in line with EU ROHS directive, safe and green.
