Đồng hồ hiển thị độ rung CZJ-B3G Vibration Monitor

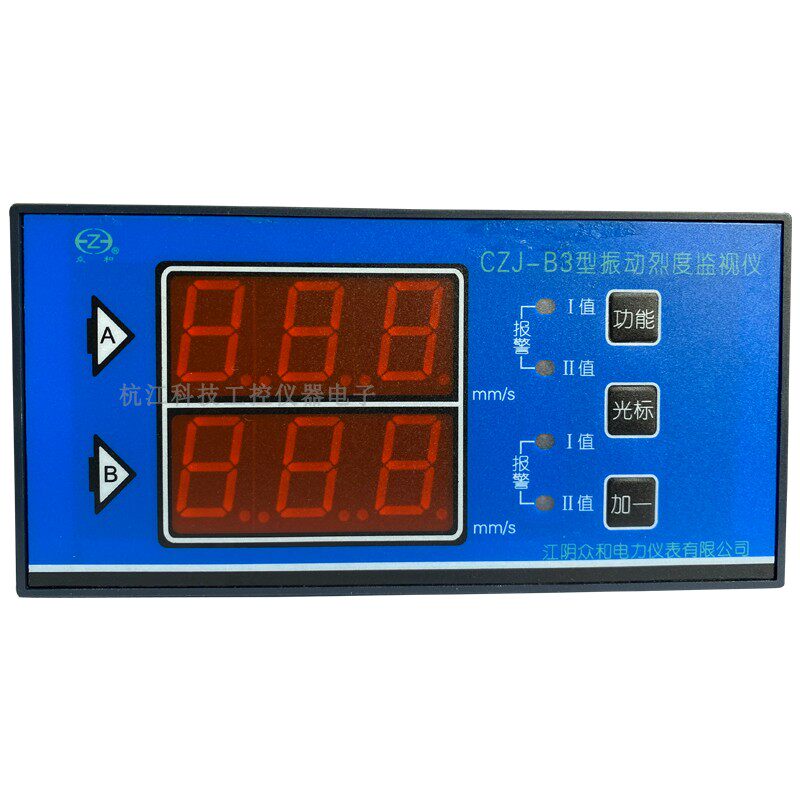

CZJ-B2, CZJ-B3 Vibration Intensity Monitor CZJ-B3G Vibration Intensity Monitor (Wall-mounted) Different models have different prices, please contact Wangwang before taking pictures, thank you

   1. Introduction

  CZJ-B series vibration monitoring and protection instrument is an intelligent instrument, which cooperates with SZ-6 series magnetoelectric speed sensor to continuously monitor and measure the vibration amplitude and intensity of various rotating machinery bearings.
     It has two types of plate mounting and wall mounting for users to choose from.

Second, the main function
■ with linear trimming function. With power-on and power-off protection functions.
■ Automatically save the historical peak value and historical alarm status after the alarm.
■ Setting parameters and measurement history parameters can be saved for a long time after power failure.

3. Technical parameters
■ Input signal: SZ series magnetoelectric speed sensor;
■ Frequency response range: vibration meter 10~200Hz; intensity meter 10~100Hz;
■ Display mode: 3-digit LED digital display, accuracy: ±1.0% ;
■ Measuring range: 0~500μm (peak-peak amplitude value); 0~30.0mm/s (vibration
   intensity);
■ Current output: 4~20 mA linear output corresponding to the range;
   Accuracy: ± 1.0%; Load: 500Ω;
Buffer output: sensor original signal output (TDM signal);
■ Alarm setting: upper limit of each channel is 2 points, and can be set arbitrarily within the full range;
   alarm output: LED indicator, relay Switch output, capacity AC250V
   /2A, DC28V /2A;
■ Power supply: 220VAC±10%, 50Hz±5%; power consumption<10W;
■Using environment: temperature 0~50℃; storage temperature -40~60℃; The relative humidity is
   20~90% (non-condensing);
   there is no corrosion around, no strong magnetic field, etc.;
■ Dimensions: panel mounted table: width 160× height 80× depth 225 (mm3);
   opening size: width 152× height 76 (mm2);
   wall table: width 190× height 290× thickness 92 (mm3);
   installation size: bottom 170× height 272 (mm2). (Equilateral triangle)
