CEMS Bơm chân không, bơm lấy mẫu khí, sampling pump, vacuum pump, KNF N86KNE, N86KTE

  • Đăng ngày 24-02-2020 06:25:05 PM - 1870 Lượt xem
  • Mã sản phẩm: KNF N86KNE, N86KTE

  • This product is used in industrial process gas continuous analysis system (extraction measurement), for gas extraction, internal anti-corrosion, especially suitable for flue gas analysis CEMS. Extraction of gases such as SO2, NOX, CO2, CO, N2, O2, etc. is possible.

    Tình trạng sản phẩm:


    Technical Parameters:

    )Model: N86KNE
    ) Pumping capacity: liters minute
    ) Power supply: 220-230VAC 50HZ
    ) Interface: 1/8 '' internal thread
    ) Piping: Φ PTFE tube

    Installation method:
    This product is panel mounted with mounting holes of 48mm and 48mm The mounting hole size is: 4- Φ .





    The following are N86KNE and N86KTE diaphragms

    Germany KNF N86KTE diaphragm vacuum pump is widely used in CEMS system. More than 80% of CEMS in China use the above pump. The N86KTE pump membrane uses a corrosion-resistant pump membrane for a longer life. Mainly used to extract SO2, NOX, CO, O2, HCL, CO2, NH3 and so on.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 6
    2, vacuum (mbar): 100
    3, the maximum working pressure (bar): 2.5
    4, size (mm): 105 × 71.2 × 92.5
    5, take over size: G1/ 8 two small holes, one is air inlet, one air outlet
    6, motor: 230VAC/50Hz weight: 1.1Kg

    Germany KNF N86KTE diaphragm vacuum pump is widely used in CEMS system, many domestic CEMS use this pump.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 6
    2, vacuum (mbar): 100
    3, the maximum working pressure (bar): 2.4
    4, size (mm): 105 × 71.2 × 92.5
    5, take over size: G1/ 8 two small holes, one is air inlet, one air outlet
    6, motor: 230VAC/50Hz weight: 1.1Kg

    ermany KNF N89KTE diaphragm vacuum pump is widely used in CEMS system, many domestic CEMS use this pump. The N89KTE pump membrane uses a corrosion-resistant pump membrane for longer life. Mainly used to extract SO2, NOX, CO, O2, HCL, CO2, NH3 and so on.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 9
    2, vacuum (mbar): 100
    3, the maximum working pressure (bar): 2.4
    4, size (mm): 105 × 71.2 × 92.5
    5, take over size: G1/ 8 two small holes, one is air inlet, one air outlet
    6, motor: 230VAC/50Hz weight: 1.3Kg


    Germany KNF N89KNE diaphragm vacuum pump is widely used in CEMS system, many domestic CEMS use this pump.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 9
    2, vacuum (mbar): 100
    3, the maximum working pressure (bar): 2.4
    4, size (mm): 105 × 71.2 × 92.5
    5, take over size: G1/ 8 two small holes, one is air inlet, one air outlet
    6, motor: 230VAC/50Hz weight: 1.3Kg


    Germany KNF N87TTE-EX diaphragm vacuum pump is widely used in CEMS explosion-proof system, many domestic CEMS use this pump. The N87TTE-EX pump membrane uses a corrosion-resistant pump membrane for longer life. Mainly used to extract SO2, NOX, CO, O2, HCL, CO2, NH3 and so on.Explosion-proof.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 9
    2, vacuum (mbar): 100
    3, the maximum working pressure (bar): 2.5
    4, size (mm): 105 × 71.2 × 92.5
    5, take over size: G1/ 8 two small holes, one is the air inlet, one air outlet
    6, the motor: 230VAC/50Hz


    British Charles Austen brand CAPEX L2 diaphragm vacuum pump is widely used in CEMS explosion-proof system, many domestic CEMS use this pump. The CAPEX L2 pump membrane uses a corrosion-resistant pump membrane for longer life.Mainly used to extract SO2, NOX, CO, O2, HCL, CO2, NH3 and so on. Explosion-proof.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 8
    2, vacuum (mbar): 100
    3, the maximum working pressure (bar): 2.5
    4, size (mm): 105 × 71.2 × 92.5
    5, take over size: G1/ 8 two small holes, one is the air inlet, one air outlet
    6, the motor: 230VAC/50Hz


    PV700EC diaphragm vacuum pump of German SP brand is widely used in CEMS explosion-proof system. Many domestic CEMS use this pump. The SPV700EC pump membrane uses a corrosion-resistant pump membrane for a longer life. Mainly used to extract SO2, NOX, CO, O2, HCL, CO2, NH3 and so on.Explosion-proof.
    Main features:
    1. Non-polluting transportation, discharge and compression;
    2. High air tightness;
    3. Low noise and low vibration;
    4. Small size, light weight and high performance; 5.
    100% oil-free, maintenance-free;
    performance Parameters:
    1, flow rate (l / min): 6
    2, vacuum (mbar): 100
    3, maximum working pressure (bar): 2.5
    4, size (mm): 105 × 71.2 × 92.5
    5, take-up size: one is Air inlet, one air outlet, 6mm silicone fluorine hose
    6, motor: 230VAC/50Hz

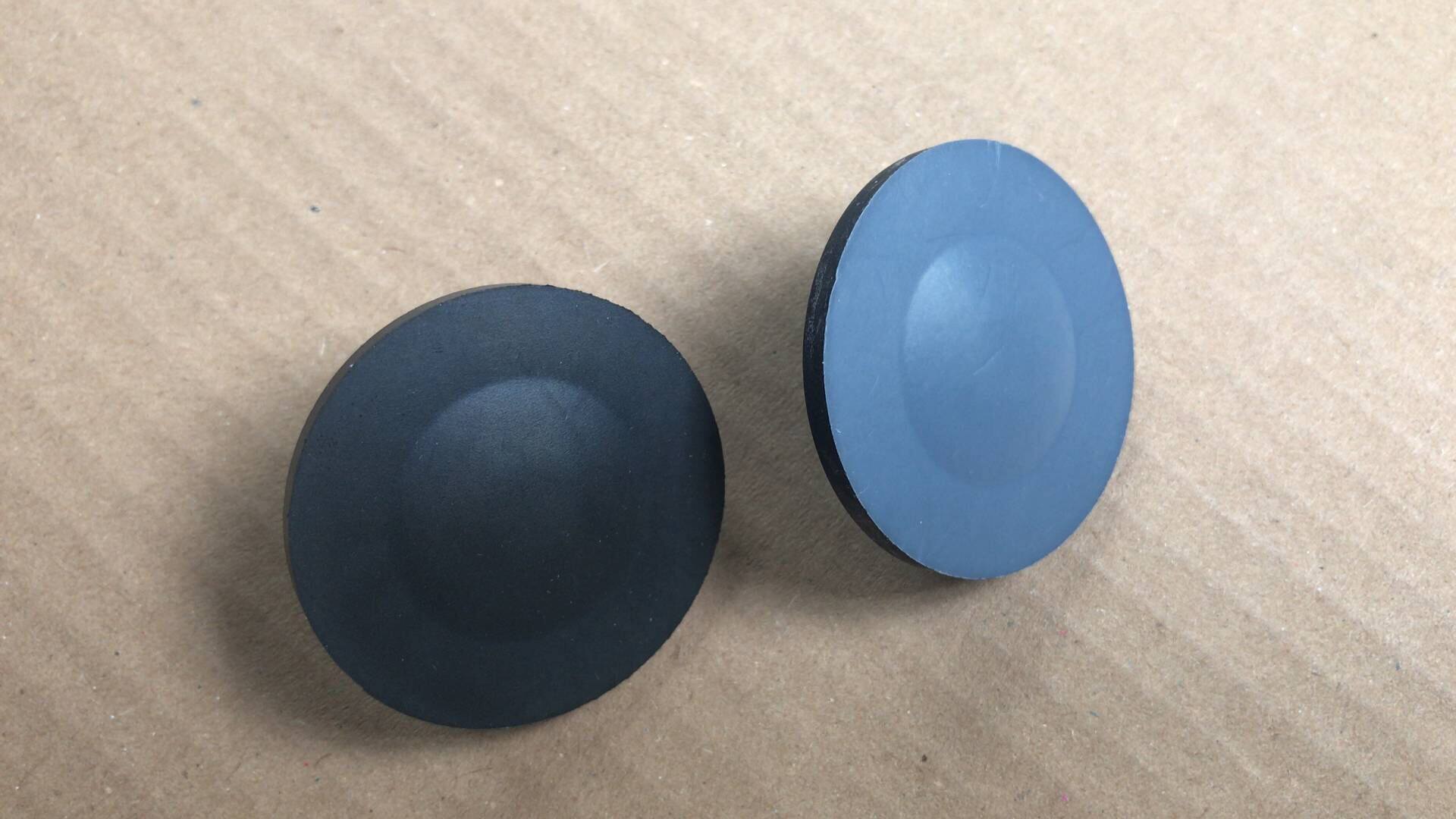

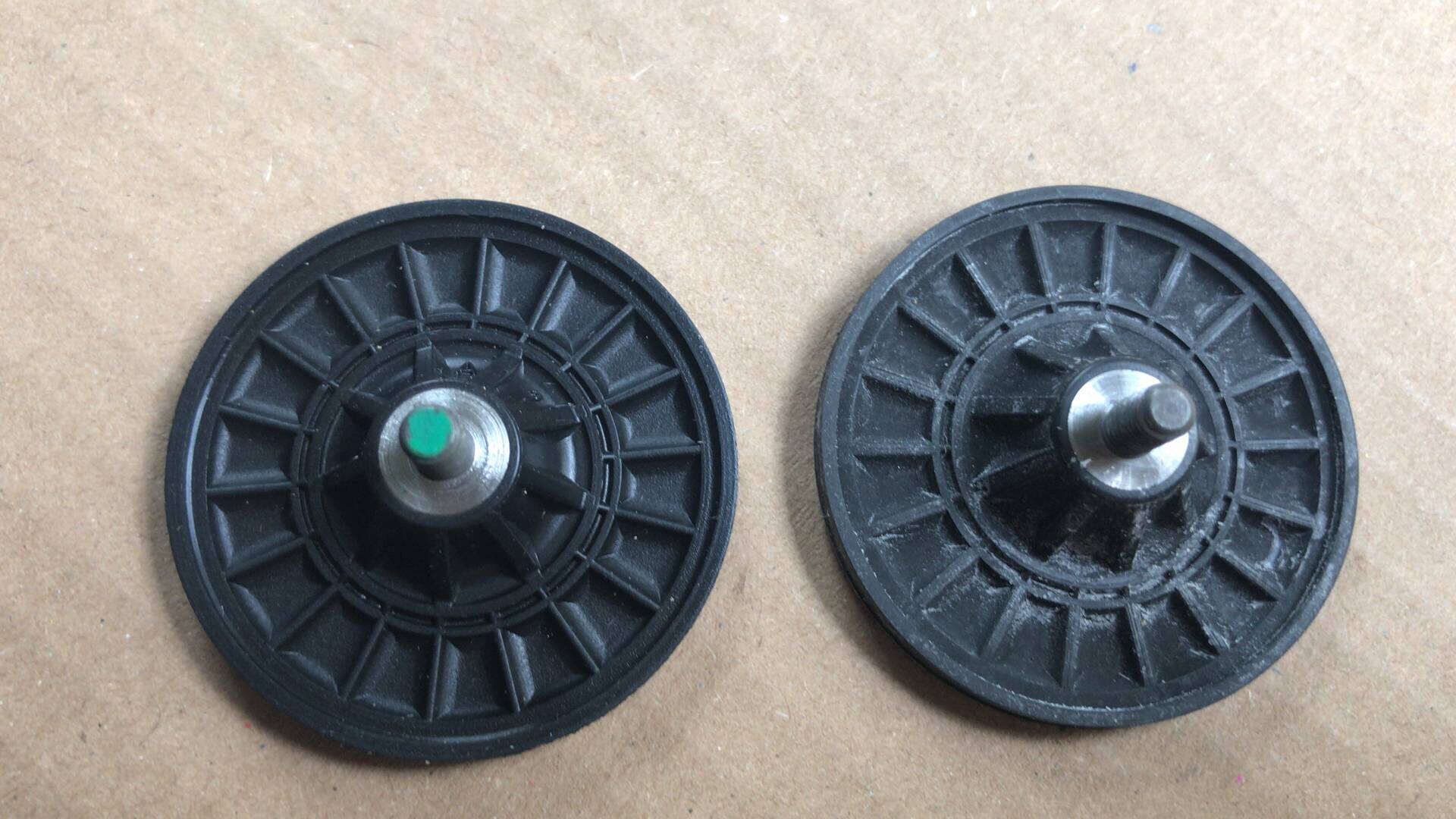

    Vacuum pump diaphragm: N86KTE
    Description: This pump membrane is anti-corrosion type, Germany KNF brand, imported, brand new.
    Model: N86KTE
    Diameter: 40MM
    Installation thread is: M4


    acuum pump diaphragm: N86KNE
    Description: This pump film is a common type, the German KNF brand, imported.
    Model: N86KNE
    Diameter: 40MM
    Installation thread is: M4


    Vacuum pump diaphragm: N89KTE
    Description: This pump membrane is anti-corrosion type, Germany KNF brand, imported.
    Model: N89KTE
    Diameter: 50MM
    Installation thread is: M4


    Vacuum pump diaphragm: N89KNE
    Description: This pump film is a common type, the German KNF brand, imported.
    Model: N89KNE
    Diameter: 50MM
    Installation thread is: M4


    Vacuum pump diaphragm Membrane N87TTE-EX
    Description: This pump film is a common type, the German KNF brand, imported.
    Model: N87TTE-EX
    Diameter: 55MM
    Installation thread is: M4


    Vacuum pump diaphragm CAPEX L2
    Description: Anti-corrosion type, British CharlesAusten brand, imported.
    Model: CAPEX L2
    Diameter: 60MM
    Mounting hole: diameter hole 3mm M4 screw


    Vacuum pump diaphragm CAPEX L2
    Description: This pump membrane is anti-corrosion type, Germany SP brand, imported.
    Model: SPV700EC
    Diameter: 40MM
    Mounting hole: M4 stud
