Bộ chuyển đổi tín hiệu rung HZD-BX /9F/A/D /S/I ​​intelligent digital display vibration transmitter Houde steam wheel water pump vibration monitoring

• Brand: Houde
• Model: HZD-B-9
• Color classification: ZD-BX transmitter HZD-B-9A transmitter HZD-B-9D transmitter HZD-B-9F transmitter HZD-BS transmitter HZD-BI transmitter
• Item No.: HZD-B-9
• Decoration and construction content: installation engineering

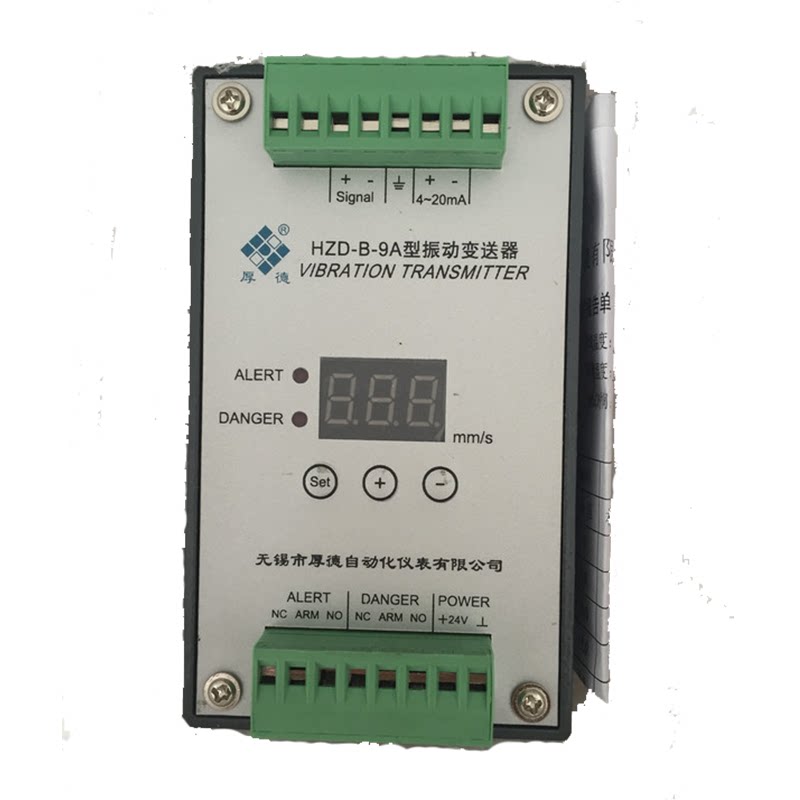

HZD-B-9A/F/X/S/I vibration transmitter is used together with ST series speed sensor

1. Introduction

   The vibration transmitter is used in conjunction with the ST series speed sensor, and is mainly used to detect the juedui vibration of the rotating machinery, such as the vibration of the casing, the vibration of the bearing bush, the mechanical vibration, etc.; to monitor the rotor due to imbalance, misalignment, loose parts, and rolling bearing damage. , gear damage caused by vibration changes. It is suitable for large rotating machinery such as steam turbines, water turbines, fans, compressors, oxygen generators, motors, pumps, gearboxes, etc., especially suitable for the transformation of old units.

2. Technical parameters:
  External power supply: 220VAC 50Hz or 24VDC
 input Signal: Accept a signal of ST series vibration velocity sensor
Sensitivity: 20mv/mm/s
Frequency response: 5～300Hz
Input impedance: >100KΩ
  Range: 0～50.0mm/ s (effective value)
   accuracy: ±1% full scale
   current output: 4~20mA, output load ≤500Ω
   temperature range:
   operation: -25℃～+65℃ storage: -40℃～+85
    ℃ Humidity: up to 95%, non-condensing
    Dimensions: 76×100×65mm
    Mounting screw hole size: 64×76mm
    Weight: 1Kg

ST series magnetoelectric speed sensors can measure various displacements and speeds after matching with vibration and intensity gauges. The vibration of the rotor supported by rolling bearings will be sufficiently large to be transmitted to the bearing seat. The speed sensor installed on the bearing seat or very close to the bearing shell will cut the magnetic field line by the internal moving coil to output voltage, and provide signals to the monitoring instrument. It is used to predict and alarm mechanical failures.
3. Electrical index:
Sensitivity: 20mV/mm/S±5%
Frequency response: 10～1000Hz±5%
Natural frequency: about 12Hz
Amplitude: 2mm (peak-peak value)
MAX acceleration: 10g
Installation method: vertical or horizontal
4. Environment Index:
Temperature range: -30℃～120℃
Relative humidity: up to 95% non-condensing, and there is no strong electromagnetic field interference around
