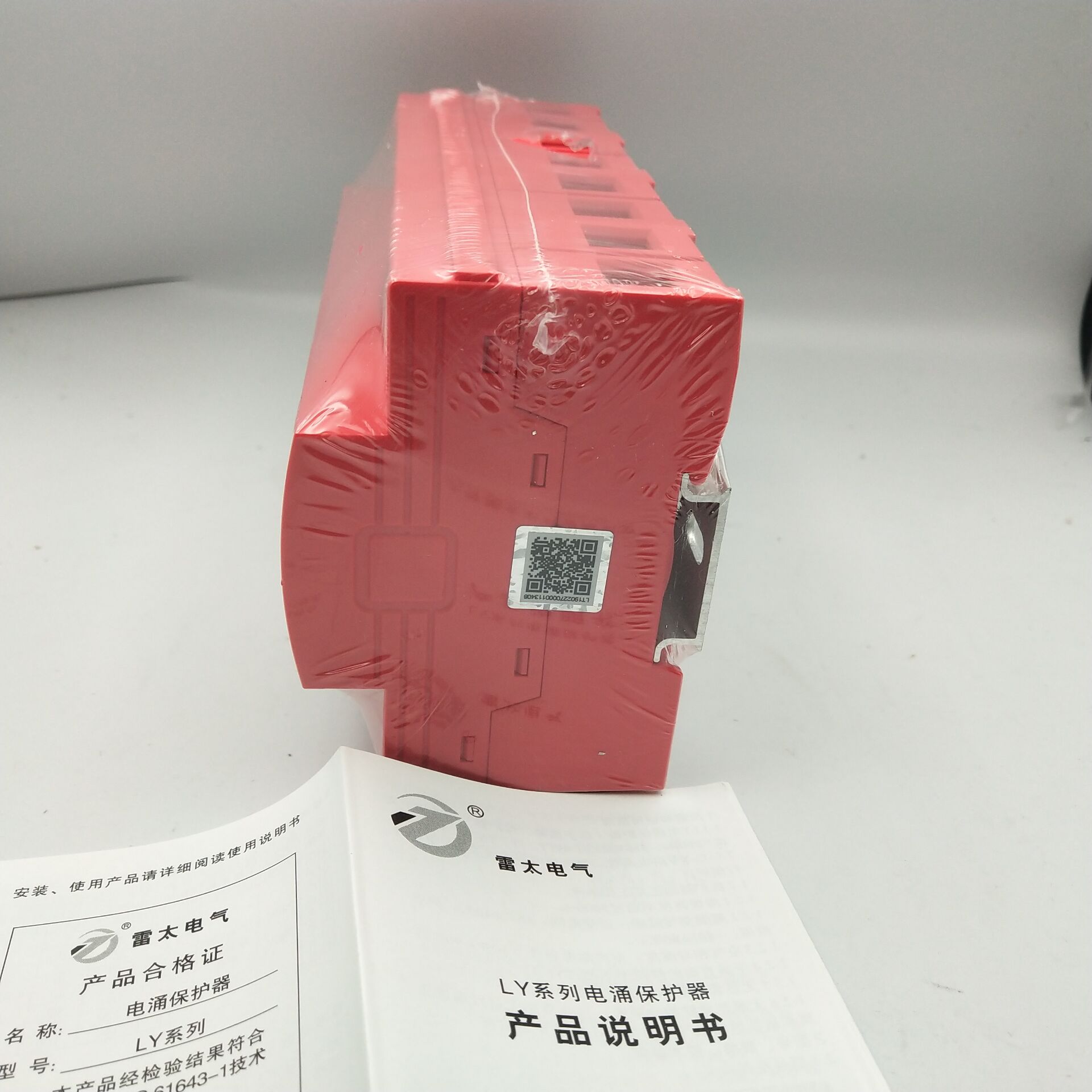

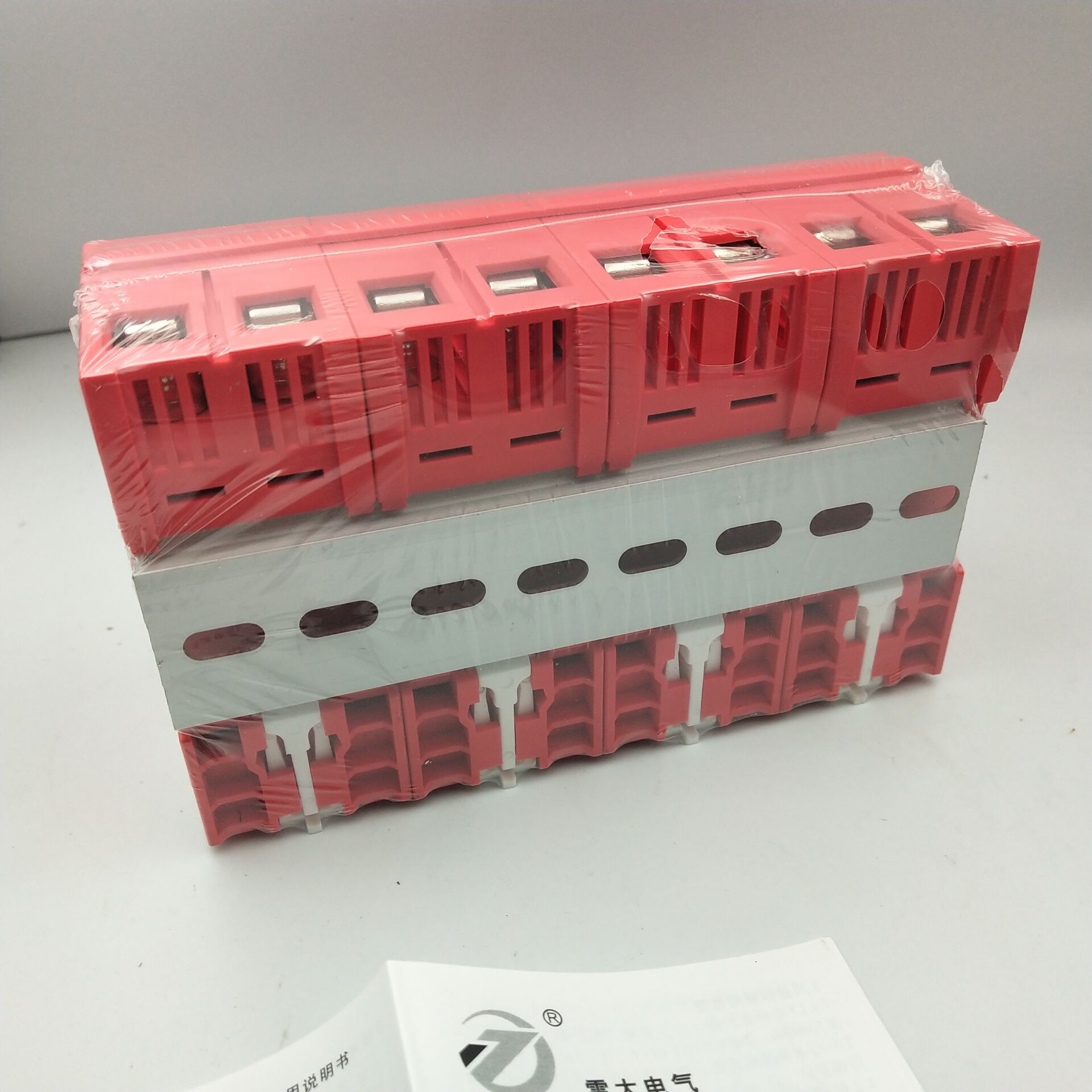

Thiết bị chống sét, T1 Shanghai Leitai LY1-50B first-class power supply surge protector 4P 50KA 10/350us

  • Đăng ngày 10-05-2023 09:36:16 PM - 217 Lượt xem
  • Mã sản phẩm: S004473
  • Thiết bị chống sét, T1 Shanghai Leitai LY1-50B first-class power supply surge protector 4P 50KA 10/350us

    Tình trạng sản phẩm:


    • Brand: Lei Tai
    • Model: LY1-B

    LY1-50B, LY1-25B switch-type compound power surge protector ( B+C level)

    product description
    LY1-B series lightning protector is a composite lightning protector designed according to the requirements of SPD Class I classification test . It can be used for the primary and secondary protection of the load equipment of the power line, and prevent the low-voltage equipment from being damaged by overvoltage interference or even direct lightning strike. Application On the interface of lightning protection zone LPZ0A-2. The switch-type composite lightning arrester is designed and manufactured according to IEC61643-1 and GB18802.1 standards. It has a high lightning current discharge capability, and the maximum impact current of a single module can reach 50KA (10/350μs). It can be widely used in the first-level lightning protection protection of equipment system power supply in areas with high lightning strike risk, and can be used in combination for single/three-phase power supply lines .




    Features
    1: Standard 35mm rail installation, compact structure, double terminals (Kevin method).
    2: Equipped with a deterioration status indicator light (the red light is on, the lightning protector is faulty and needs to be replaced in time). Easy to install and maintain.
    3: B+C level protection, large discharge energy and low residual pressure. (Iimp50KA Up≤ 2000V per line)
    4: Adopt unique self-ignition technology, no power frequency freewheeling, no leakage current, high safety factor.
    5: The core components are made of special alloy materials with anti-oxidation, arc ablation resistance and excellent performance, which have strong environmental resistance and long service life.

    Technical Parameters





    model LY1-50B LY1-25B
    According to EN 61643-11, SPD Level 1 Level 1
    According to IEC 61643-1, SPD Class I Class I
    Rated voltage (maximum continuous working voltage) U C 275V 275V
    Lightning impulse current (10/350μs) I imp 50/100kA 25/50kA
    Voltage protection level U p ≤2.0kV ≤1.5kV
    Power frequency freewheeling interruption capability at c [LN] I fi 25kA rms 25kA rms
    Freewheel Inhibition/Selectivity The 32A fuse does not trip when the expected freewheeling current reaches 25kA rms When the expected freewheeling current reaches 12.5kA rms , the 32A fuse does not trip
    Response time tA ≤100ns ≤100ns
    Maximum Backup Fuse (L) 315A gL/gG 315A gL/gG
    Maximum backup fuse (L-L') 125A gL/gG 125A gL/gG
    Short-circuit withstand capability at maximum backup fuse 25kA rms 25kA rms
    Operating temperature range T U -40°C … +80°C -40°C … +80°C
    Minimum installation wire cross-sectional area 10mm 2 stranded/flexible wire 10mm 2 stranded/flexible wire
    Maximum installation wire cross-sectional area (L1,L2,L3,N,PE) 50mm 2 stranded wire/35mm 2 flexible wire 50mm 2 stranded wire/35mm 2 flexible wire
    installation method 35mm DIN rail according to EN 50022 35mm DIN rail according to EN 50022
    Shell material Red or white thermoplastic, UL 94-0 Red or white thermoplastic, UL 94-0
    degree of protection IP 20 IP 20
