Biến tần, Inverter E2000-0004S2 E2000-0007S2 E2000-0015S2 E2000-0022S2 E2000-0007T3 E2000-0015T3 E2000-0022T3 E2000-0030T3 E2000-0040T3 E2000-0055T3 E2000-0075T3 E2000-0110T3 E2000-0150T3 E2000-0185T3 E2000-0220T3 E2000-0300T3 E2000-0370T3

  • Đăng ngày 11-10-2023 02:30:42 PM - 405 Lượt xem
  • Mã sản phẩm: S004592
  • E2000 vector type

    Product Description

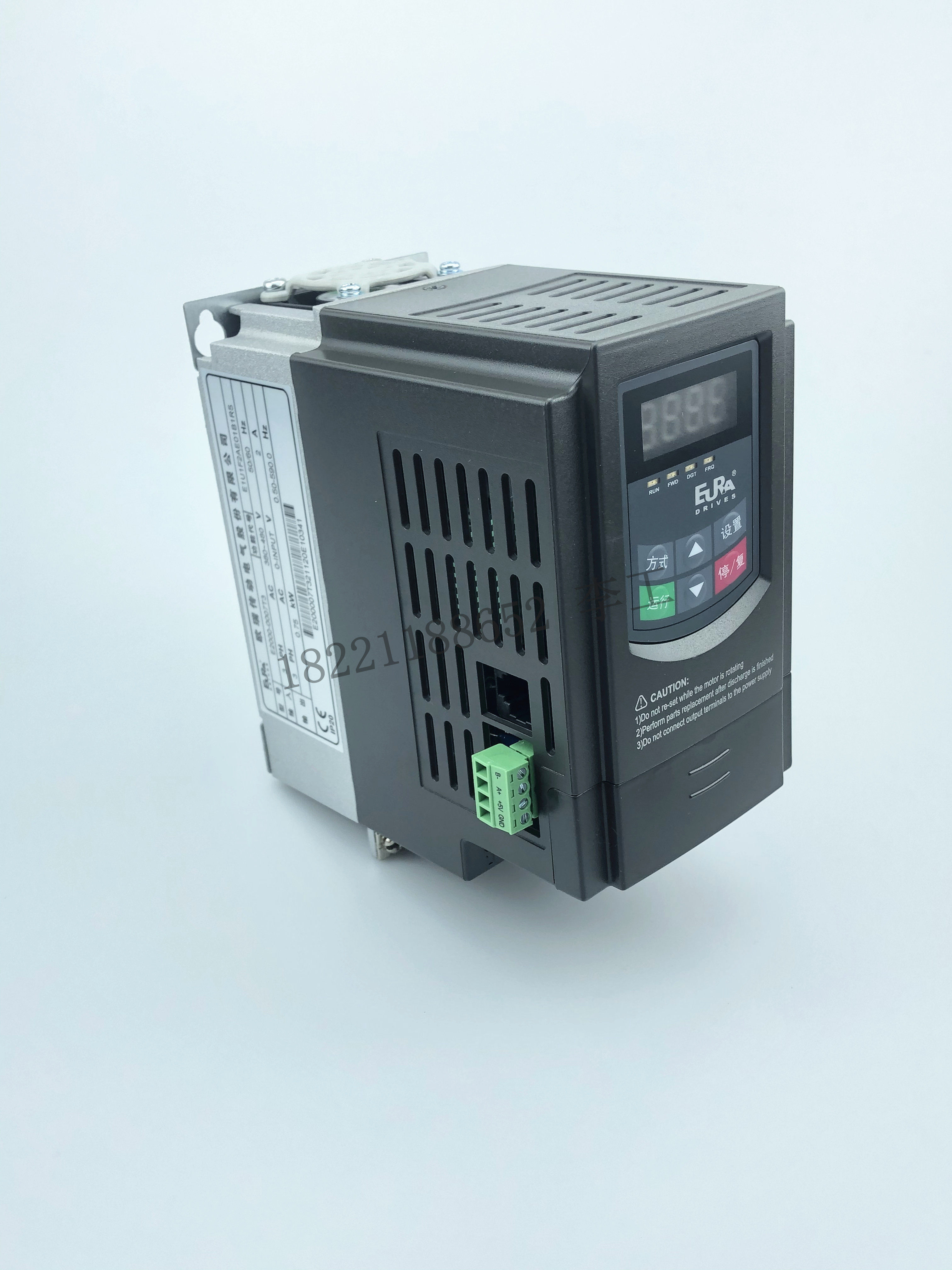

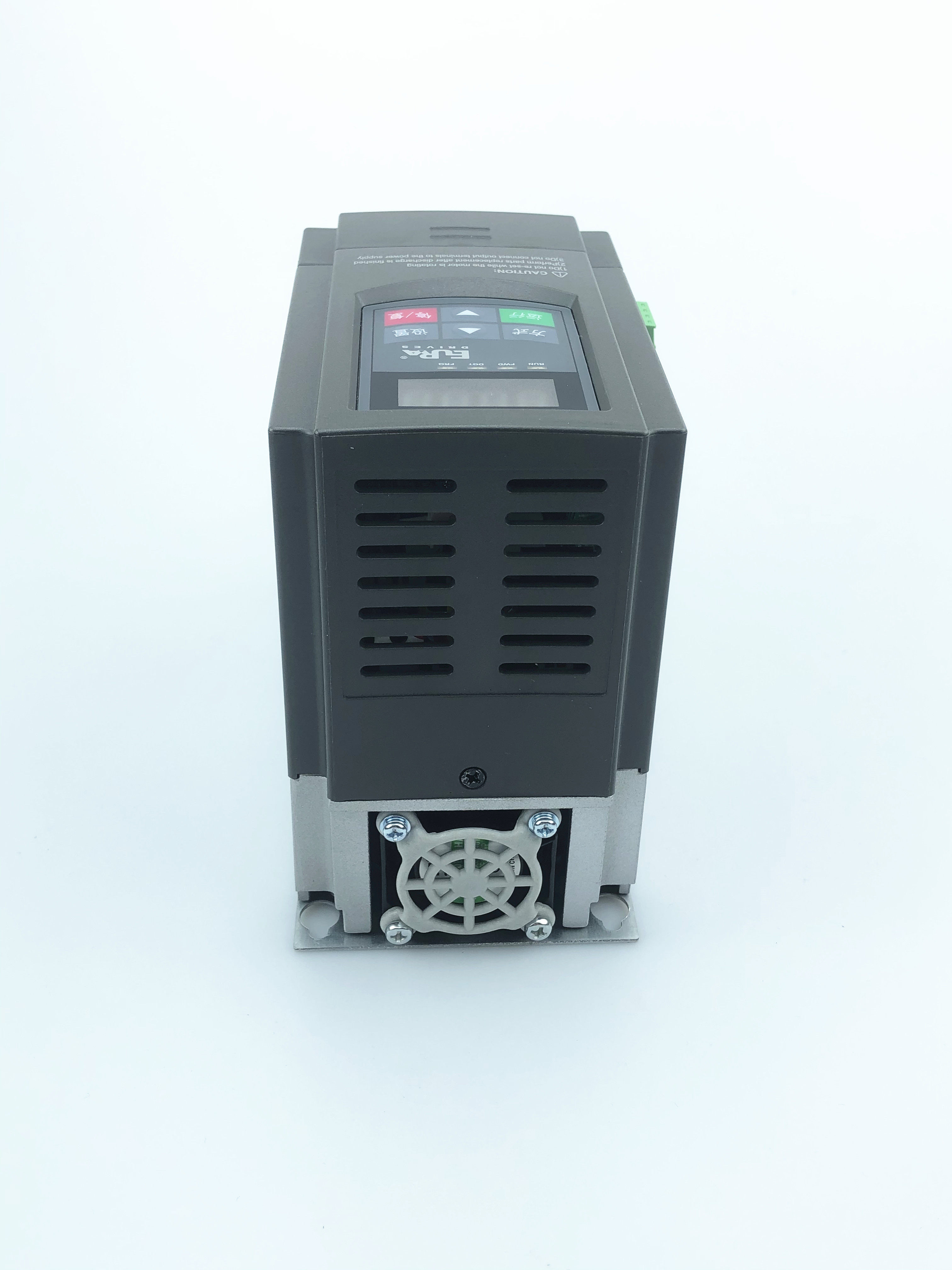

    E2000 series inverter is a new generation of vector control inverter developed by Orui Transmission. It adopts advanced vector control core and rich system functions. It has high voltage utilization, high power factor, fast dynamic response, high precision and low noise. and other advantages, which can meet the higher needs of customers. Supports SVC control of permanent magnet synchronous motors to maximize energy-saving operation; provides rich personalized functions such as instantaneous stop, speed tracking, master-slave control, power balance, fast impact-free forward and reverse switching, automatic voltage and current limiting, etc. design. In addition to supporting single-phase 220/230V and three-phase 380/400V, the E2000 series general-purpose inverter also supports three-phase 660/690V and 1140V voltage levels. It can be widely used in mining, oil fields, water pumps, fans and other related industries. E2200 is a built-in bus type inverter based on E2000.
    〖Power range〗
    ● Level 400V: 0.4kW~800kW
    ● Level 690V: 15kW~1200kW
    ● Level 1140V: 37kW~355kW


    Tình trạng sản phẩm:


    Product Features

    ●Advanced vector control technology enables more precise control and better dynamic performance

    ● Optimize magnetic flux control to further improve low-frequency output torque

    ●Output frequency 0.50~650.0Hz, resolution up to 0.01Hz

    ● Settable V/F curve and custom curve

    ● Ultra-low noise, carrier frequency can be adjusted from 3K to 12K

    ● Timely and reliable control and protection, high system stability

    ● Optional built-in filter

    ● Compatible with European level interface standards

    ● The torque automatically increases, the starting torque reaches 150%/0.5Hz, and the torque control accuracy reaches ±5%

    ● Output frequency 0.50~650.0Hz (V/F), 0.50~200.0Hz (SVC), resolution up to 0.01Hz
