Bộ điều khiển hiển thị cân thiết bị cân đóng gói Zhimei CB900P Bộ điều khiển hiển thị cân thành phần

1. CB900P packaging scale instrument:

• Features introduction:
  • With automatic detection reset circuit
  • Users can edit PLC programs by themselves
  • Selectable high/low sensitivity input
  • Set up batching and unloading time monitoring
  • Double digital filtering
  • Provide cumulative total and batch number
  • It has the functions of rough metering, fine metering or jogging batching and overshoot compensation.
  • Optional slow start delay time
  • When the actual amount is less than the target amount, the dosage is allowed to be added
  • Equipped with batching completion and unloading completion signal output
  • Optional real-time clock to match report printing
  • RS485 interface allows multipoint communication
  • There are two independent prohibition comparison times for startup and fast and slow conversion
  • The effective range of overshoot compensation can be set
  • Detaching delay time can be set
  • The number of times of peeling sampling can be set
  • The number of stator comparisons can be set
  • Equipped with functions of general batching controller
  • Dedicated software designed with years of experience in packaging ingredients

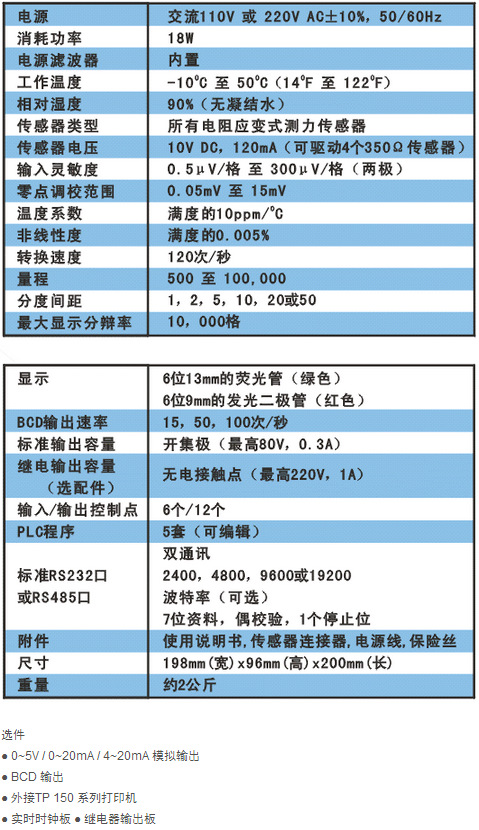

Second, CB900P belt scale instrument specifications

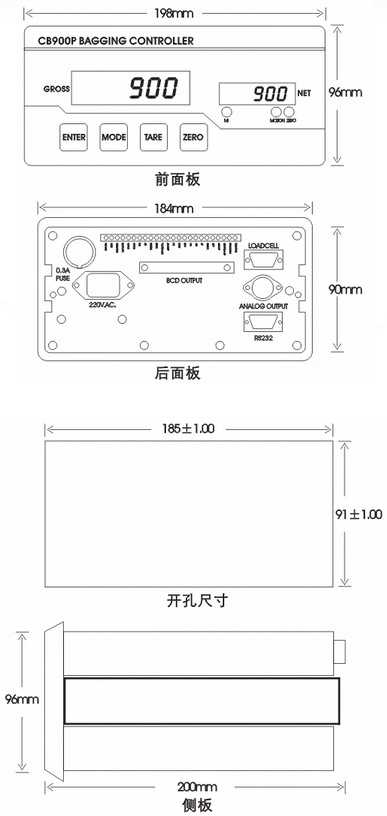

3. Dimensions of CB900P belt scale instrument

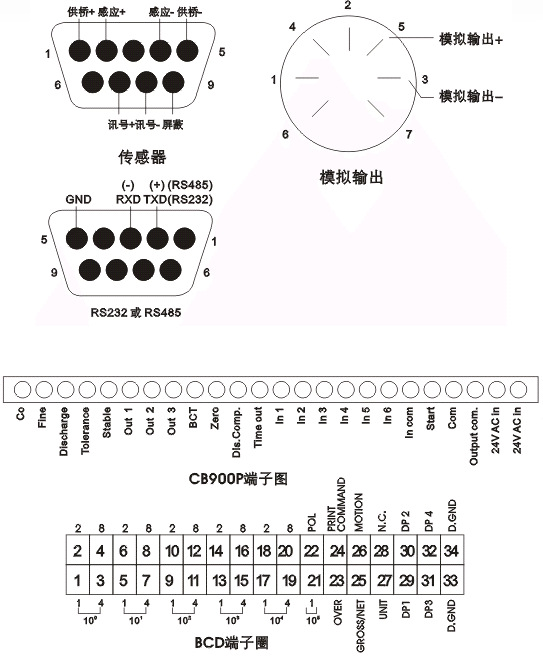

2. Wiring diagram of CB900P belt scale instrument

Zhimei instrument full range of models:

CB900P packaging instrument, CB920X high-speed batching controller, CB900K belt scale instrument, CB1000S batching controller, CB900F batching controller, PT650F weighing display, PT650M weighing display, PT650D weighing display controller, PT350D weight transmitter, PT350C weight Transmitter, CB900G-Ex flameproof weighing display controller, PT650F-Ex flameproof weighing display controller, JB sensor junction box, SB sensor junction box.
