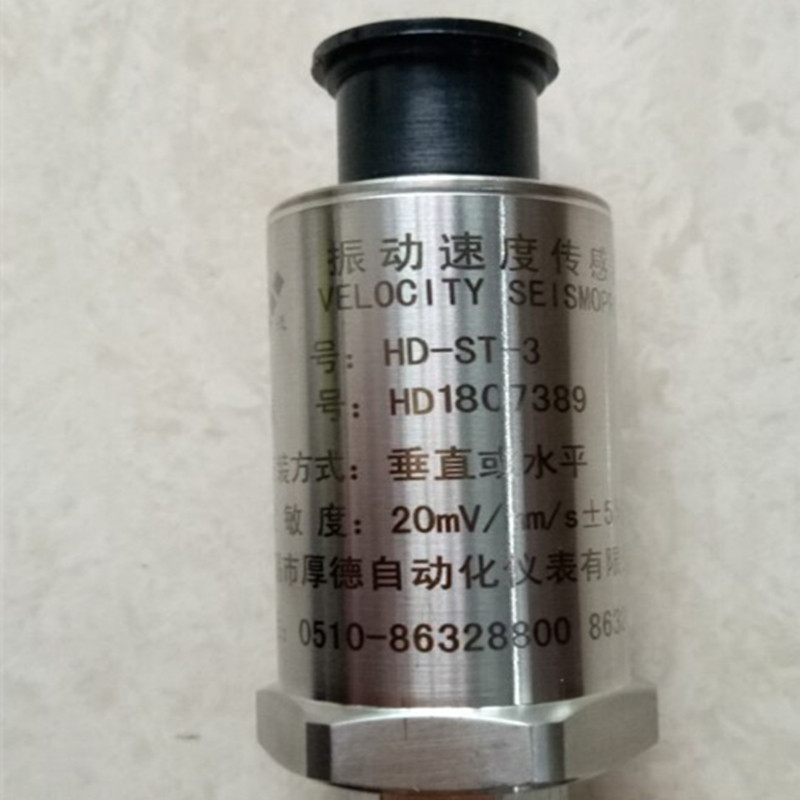

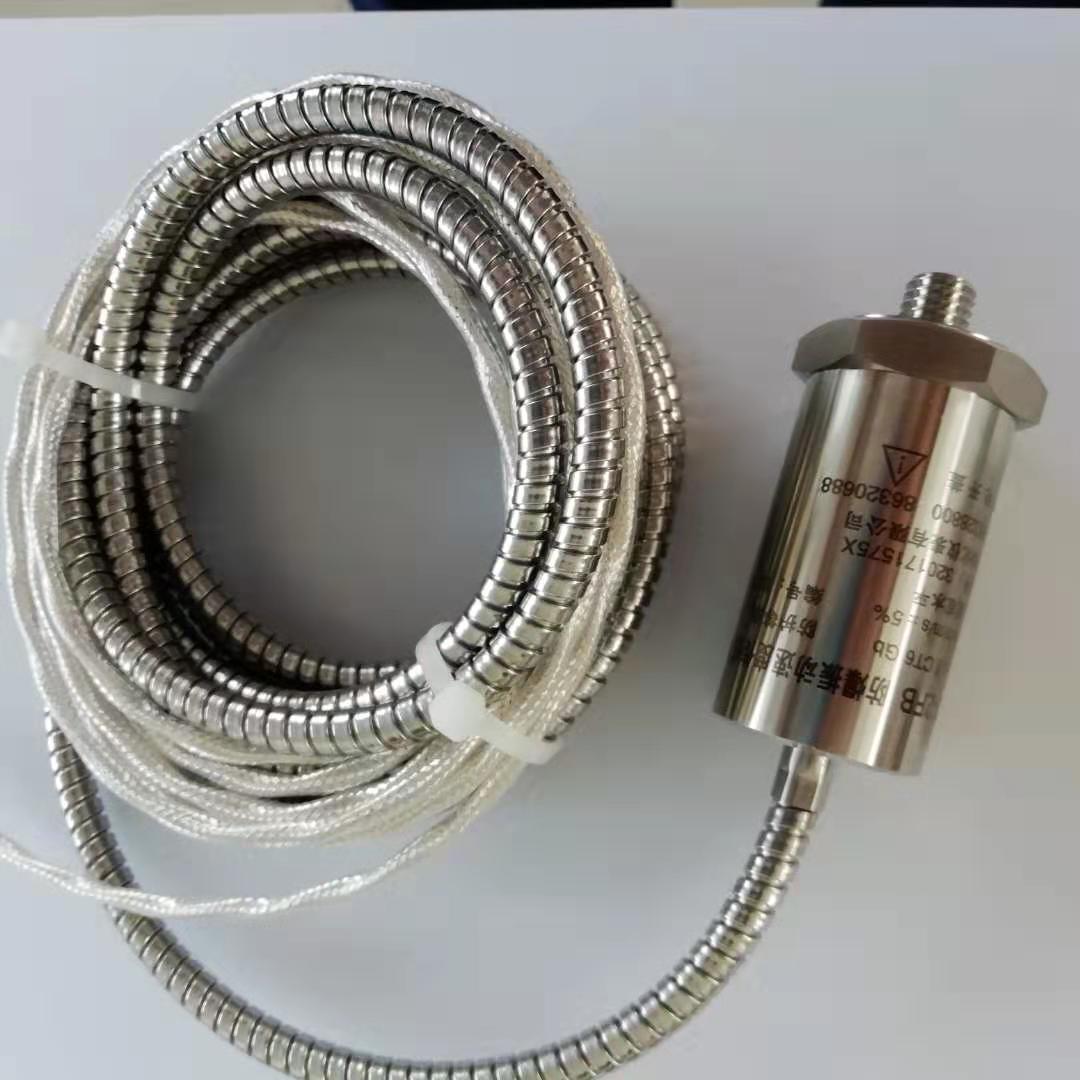

1. Introduction:The sz-6 vibration speed sensor (vibration probe) is mainly installed on the bearing covers of various rotating mechanical devices (such as steam turbines, compressors, fans, pumps, etc.). It is an electromagnetic sensor that outputs voltage by cutting the magnetic lines of force by a moving coil, so it does not need to supply power when working and is easy to install. Installation position: vertical or horizontal installation on the measured vibration point, the bottom of the sensor is fixed with M10×1.5 screws.
The sz-6 vibration speed sensor (vibration probe) is connected to the DK580A series vibration monitoring and protection device, which can measure the bearing vibration of various rotating machinery, and can detect the failure of various rotating machinery early, and output a standard 4-20mA current signal to the PLC , DCS and DEH systems, etc.
2. Electrical indicators:
Sensitivity: 20mV/mm/s, 30mV/mm/s, 40mV/mm/s, 50mV/mm/s (optional)
Frequency response: 10 to 1000 Hz
Natural frequency: 10Hz
Measurable amplitude: 2mm (P-P)
Acceleration: 10g
3. Physical indicators:
Dimensions: 35×80mm
Weight: about 350g
Measuring direction: vertical or horizontal
4. Environmental indicators:
Temperature: -10℃ to +100℃,
Relative humidity ≤90%
