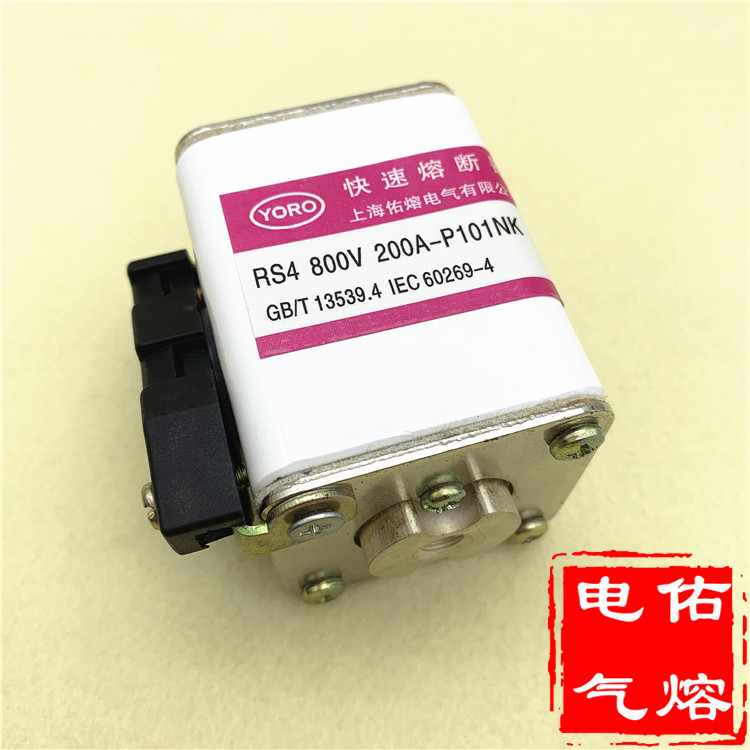

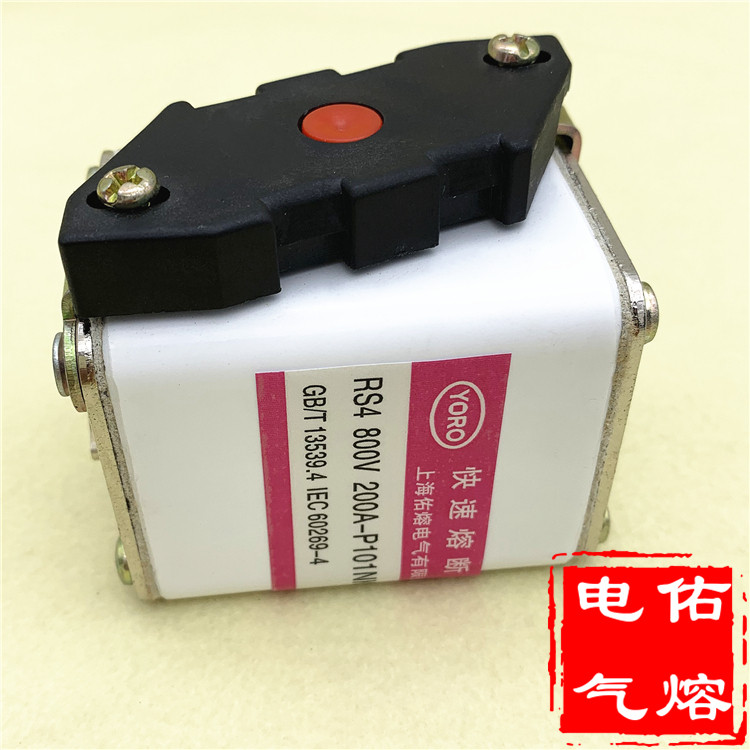

cầu chì sứ YORO RS4 500V 250A 280A 300A 315A 355A 400A 450A

  • Đăng ngày 23-12-2021 09:49:47 AM - 316 Lượt xem
  • Mã sản phẩm: S003805

  • Tình trạng sản phẩm:


    →Product overview :

          RS8 series of semiconductor device protection fuses (hereinafter referred to as fast fuse), this series of fast fuse is suitable for AC 50HZ, rated AC voltage 250V-3000V, rated DC voltage 65V-2000V, rated current 10A-16000A circuit, as Rectifier diodes, thyristors and other semiconductor devices composed of short circuit and certain overload protection that does not allow overcurrent.

             This series of fast fuses are made of pure silver sheets. The variable cross-section melt is encapsulated in a fuse tube made of high-strength porcelain; the fuse tube is filled with chemically treated high-purity quartz sand as the arc extinguishing medium; the fuse can be brought Indicator or striker, when the fuse is blown, the indicator/ striker will act immediately, showing that the fuse has been blown (indicator) and pushing the micro switch (strike) to send out various signals or automatically switch the circuit. This series of fast fuse has the characteristics of large rated capacity, high breaking capacity, fast fusing speed, obvious current limiting characteristics, obvious indication, safety and reliability. This series of fuse-links complies with the national standard GB/T13539.4 and the International Electrotechnical Commission standard IEC60269-4.



    →Basic parameters
