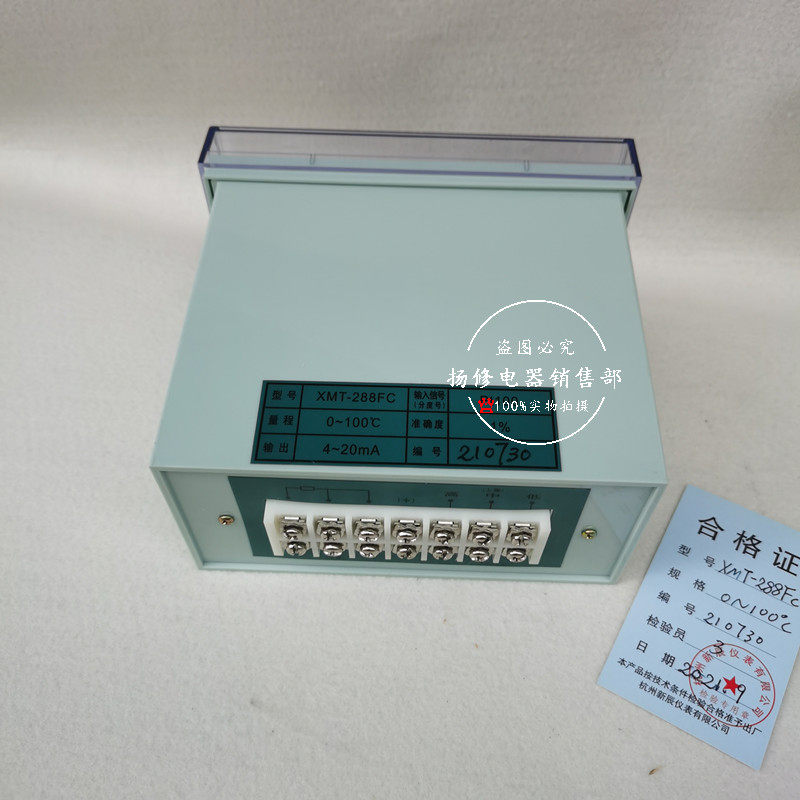

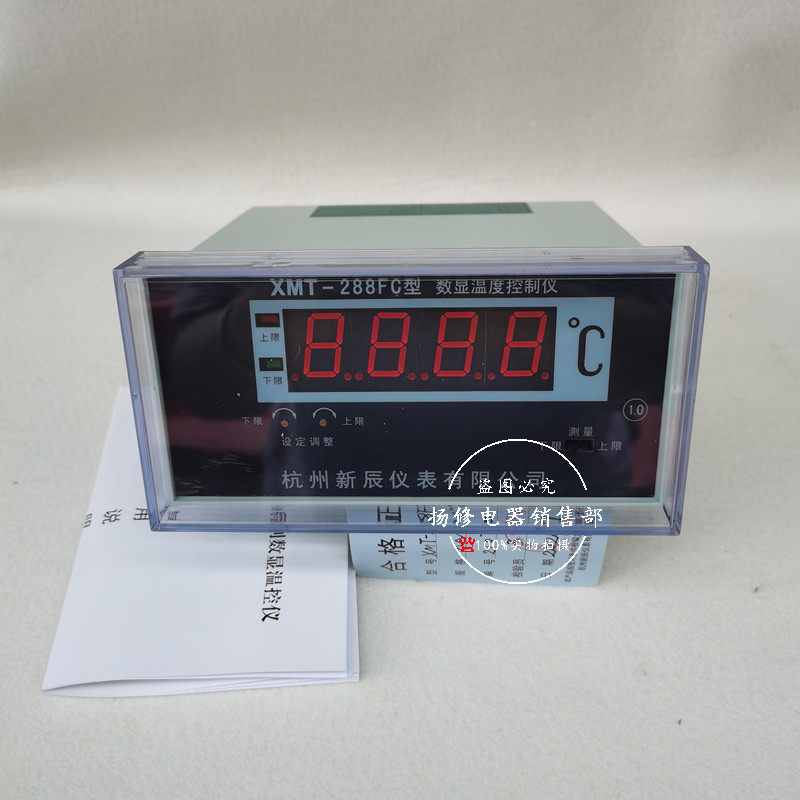

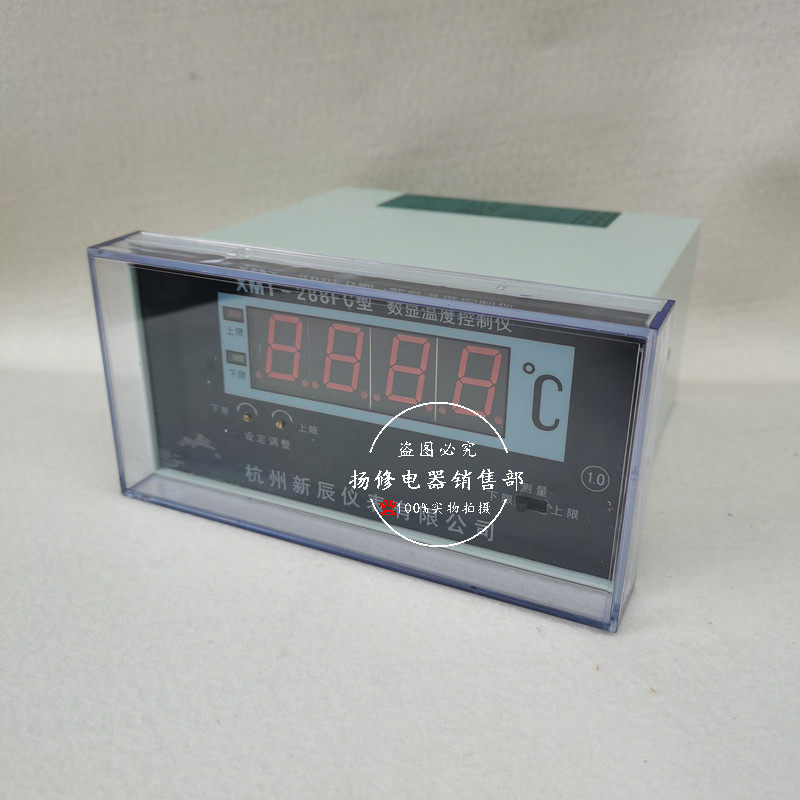

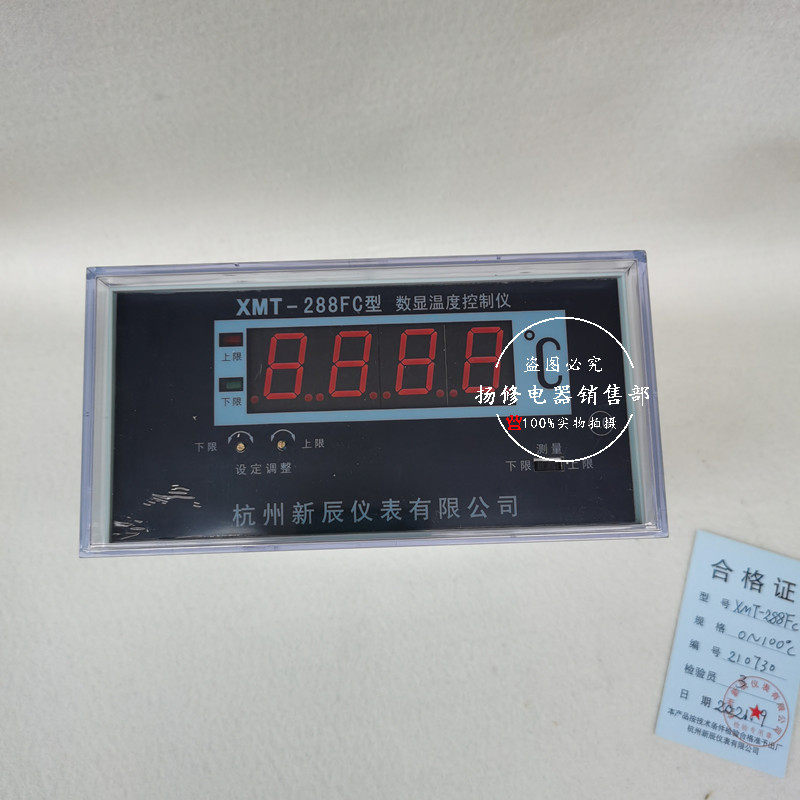

Đồng hồ hiển thị nhiệt độ Yangxiu XMT-288FC XMT-288FC-II XMT-288FC-III

XMT-288F(C) series digital display temperature controller is a supporting product specially designed by our factory for power transformers. It is matched with BWY(WTYK)-802A , 803ATH and other types of temperature controllers to achieve remote measurement of power transformer oil temperature. ,remote control. This product has models such as XMT-288F and XMT-288FC . Among them, XMT-288FC can output 0 ~ 5VDC , 1 ~ 5VDC or 4 ~ 20mADC standard signals. XMT-288FC- Ⅱ is also equipped with RS-485 and RS-232 interfaces for direct networking with computers.

Main technical parameters 1. Input
    signal : Pt100     2. Measuring range: 0 ~ 100 ℃ 0 ~ 120 ℃ 0 ~ 150 ℃ -20 ~ 80 ℃     3. Accuracy: Level 1.0     4. Display mode: 0.8 ” 7- segment digital tube     5 . Resolution: 0.1 ℃     6. Setting value range: adjustable within the entire range     7. Lead mode: Pt100 : three - wire system, current: two-wire system     8. Contact output: each upper and lower limit alarm has a set of normally open ( normally closed ) contacts     9. Contact capacity: 220VAC 3A ( resistive )     10. Overall dimensions (mm): width 160*height 80*depth 125, opening size: width 152* height 76


XMT-288FC has the following signal output:
    DC: 0 ~ 5V or 1 ~ 5V , DC 4 ~ 20mA
    communication interface: RS485 , RS232 (XMT-288FC- Ⅱ )
    DC 4 ~ 20mA output, the allowable load resistance is 250 ~ 350Ω
