Quạt kho lạnh, quạt giàn lạnh, quạt máy nén, máy sấy YWF4D/4E-200/250/300/350/400/450/500/600 220/380V

Brand Name: Hangzhou Weiguang

Product parameters:

• Brand: qbwcR
• Model: Shimmer
• Color classification: YWF4D-400S (380V), YWF4E-400S (220V), YWF4D-450S (380V), YWF4E-450S (220V), YWF4D-350S (380V), YWF4E-350S (220V), YWF4D-300S (380V) ) YWF4D-250S (380V) YWF4E-250S (220V) YWF4D-500S (380V) YWF4E-500S (220V) YWF4D-550S (380V) YWF4E-550S (220V) YWF4D-630S (380V) YWF4D-600S (380V) YWF4D -450B (380V) YWF4D-400B (380V) YWF4E-400B (220V) YWF4E-600S (220V) YWF6D-400S (380V) YWF4E-330S (220V) YWF4D-313S (380V) Other models and contact customer service

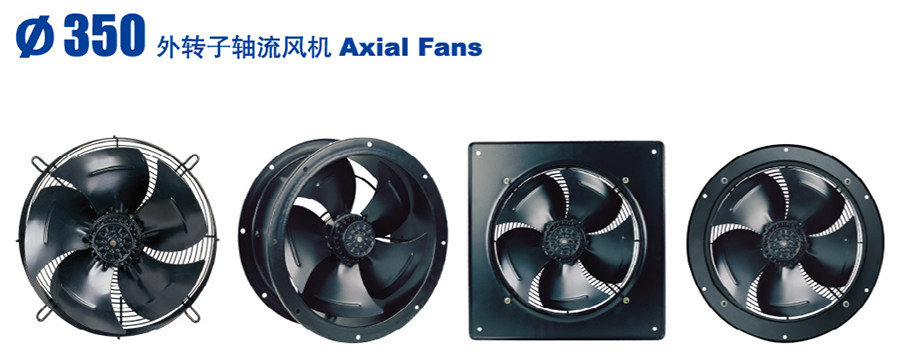

1. This product is Hangzhou Weiguang YWF series external rotor axial flow motor with one year warranty.

     2. The standard length of the fan power lead wire is 1.5 meters, which is made of all copper core wires, and there are also junction boxes available.

     3. D and E in the model refer to voltages of 380V and 200V respectively .

     4. The difference between 4D and 6D is that the number of poles is different (that is, the number of revolutions), and the power, number of revolutions, and air volume are all larger than those of 4D , but the dimensions of 4 -pole and 6         -pole under the same product are exactly the same. The same is true for 4E and 6E .

      5. This product is an all-in-one machine of motor, net cover and fan blade. What you have photographed is the price of the whole machine, and a single accessory is not sold separately.
