- Brand: FLUKE/Fluke
- Model: ST60 Thermometer
- Decoration and construction content: installation works
- Item number: ST60
- Color classification: ST20(-32~535℃) ST60+(-32~600℃) ST80+(-32~760℃) ST18(-20℃—500℃)
2-in-1 infrared and contact thermometer with innovative dot-matrix display. With a simple 3-button on-screen menu interface (6 languages), the Fluke ST80+ and ST60+ digital laser thermometers make complex measurements incredibly easy. With just a few button presses, you can quickly navigate through advanced functions to adjust emissivity, initiate data logging, or turn alarms on and off. The Fluke ST80+ and ST60+ contact and non-contact 2-in-1 thermometers are rugged, easy-to-use and ergonomically designed to handle harsh industrial, electrical and mechanical environments with ease. The performance of these tools far exceeds that of other infrared thermometers (or pyrometers), allowing users to achieve greater productivity in a wider range of applications.
Additional features provided by ST80+:
1. Quickly download stored data through USB interface
2. Use USB interface and laptop to view data immediately without leaving the site
3. Digital thermometer draws power from laptop through USB interface, extending battery life
Features and benefits of ST80+ and ST60+:
1. Measuring range: -32°C to 760°C / -25 °F to 1400 °F (ST80+), or -32 °C to 600 °C /-25 °F to 1100 °F (ST60+)
2. Easy access to advanced functions with soft key buttons and dot matrix display
3. Measure longer distances and smaller objects with D:S ratio of 50:1 (ST80+) or 30: 1 (ST60+)
4. Compatible with all standard mini-junction K-type thermocouples, preserving investment in thermocouples
5. Adjustable emissivity function (built-in material table), allowing users to measure multiple surfaces with confidence
6. Capture multiple data pointsST80+ up to 99, ST60+ up to 20), can be downloaded and recalled later with
7.2 levels of backlight height, easily adapt to various lighting conditions
9.
Quickly identify problems with minimum, maximum, average and DIF functions
10. Included K-type thermocouple bead probe facilitates immediate contact measurement
11.1 % measurement accuracy allows users to service equipment with confidence
12. The multi-function interface is available in 6 languages
Product technical indicators |
Infrared temperature measurement range | ST60+ | -32 °C to 600 °C ( -25 °F to 1100 °F ) | ST80+ | -32°C to 760°C ( -25°F to 1400°F ) | |
Infrared temperature measurement accuracy | | < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 ° C (± 2.0 °F), whichever is greater | |
display resolution | |
IR spectral response | |
Infrared response time | |
Type K Thermocouple Input Temperature Range | | -270 °C to 1372 °C (-454 °F to 2501 °F) | |
Type K Thermocouple Input Accuracy | -270°C to -40°C : | ±(1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ±(2 °F + 0.2 °/1 °F)) | -40°C to -1372°C : | ± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater | |
D:S (ratio of distance to measuring spot diameter) | ST60+ : | 30:1 | ST80+ : | 50:1 | |
laser aiming | | Single point laser < 1 mw output, Class 2(II) operation, 630 nm to 670 nm | |
Minimum spot diameter | |
Emissivity adjustment | | Through built-in common material table or digital adjustment, the range is 0.10 to 1.00, the amplitude is 0.01 | |
Date / time stamped data storage | ST60+ : | 20 o'clock | ST80+ : | 99 points | |
PC interface and cable | ST60+ : | without | ST80+ : | USB 2.0 and FlukeView® Forms software | |
high / low alarm | | Audible and two-color visual alerts | |
Min / Max / Average /DIF | |
show | | 98 x 96 pixel dot matrix with function menu | |
Backlight | | Two levels, normal backlight and super bright backlight for darker environments | |
Trigger Lock | |
Switchable Celsius and Fahrenheit | |
power supply | ST60+ | 2 AA/LR6 batteries | ST80+ | 2 AA/LR6 batteries, powered by USB interface when used with computer | |
Battery Life | If used continuously: | Laser and backlight on, 12 hours; laser and backlight off, 100 hours | |
operating temperature | | 0°C to 50°C (32°F to 122°F) | |
storage temperature | | -20 °C to 60 °C (-4 °F to 140 °F) | |
K -type bead thermocouple temperature range | | -40 °C to 260 °C (-40 °F to 500 °F) | |
Type K Bead Thermocouple Accuracy | | 0 °C to 260 ° (32 °F to 500 °F) temperature range, ± 1.1 °C (2.0 °F); -40 °C to 0 °C (-40 °F to 32 °F) temperature range: typical Less than 1.1 °C (2.0 °F) | |
Infrared and Contact Thermometer ST60+ Included
- Type K Thermocouple Bead Probe

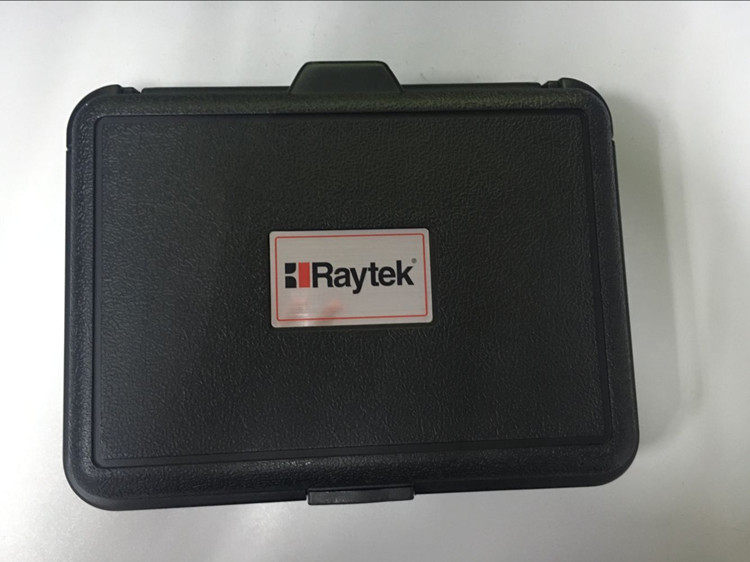

- Durable hard case
- 2 AA batteries
- Getting Started Guide in 6 languages
- one year warranty
Infrared and contact thermometer ST80+ includes:
- Type K Thermocouple Bead Probe
- Durable hard case
- 2 AA batteries
- Getting Started Guide in 6 languages
- one year warranty
