Cảm biến áp suất, Dynisco pressure sensor PT4624/20/35/50/70MPA-6/18, PT462E/20/35/50/70MPA-6/18

Đăng ngày 14-11-2018 02:39:00 AM - 1987 Lượt xem

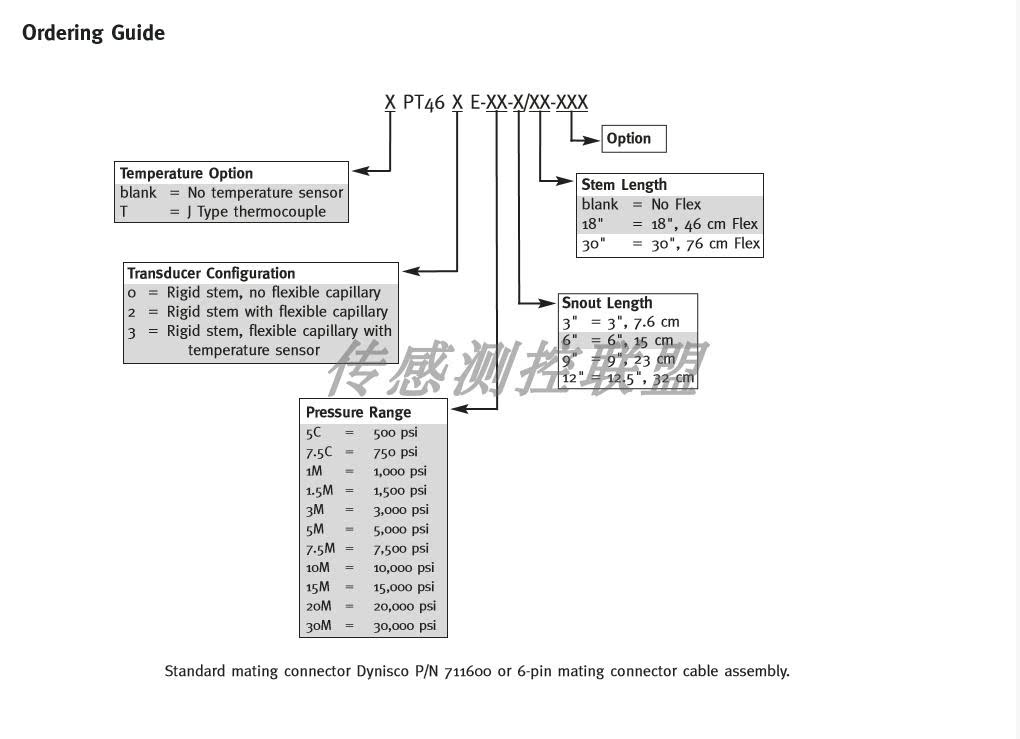

Mã sản phẩm: PT4624, PT462E

PT462E 35MPA 6/18—1480
PT462E 35MPA 12/30
PT462E 50MPA 6/18
PT462E 70MPA 9/18
PT4624 10MPA 6/18
PT4624 20MPA 6/18
PT4624 35MPA 6/18
PT4624 35MPA 12/18
PT4626 35MPA 6/18

American Dynisco brand xPT46xE series high temperature melt pressure sensor
characteristic
● Accuracy is higher than ±0.5%    ●Stainless steel plus Dymax® coated diaphragm   ●Verified sensor design
● Range 0-500 to 0-30,000pis (0-3.5 to 0-200MPa)    ● Internal 80% short check verification advantages
●Reliable, repeatable pressure measurement    ●Excellent wear resistance   ●Good stability and repeatability
● Easy to use local display table check
product description
The PT460E series of sensors output the industry standard 3.33mV/V signal for use with most pressure indicators.
With 6-pin aviation connector. The melt temperature can be measured using a thermocouple or RTD thermal resistance.

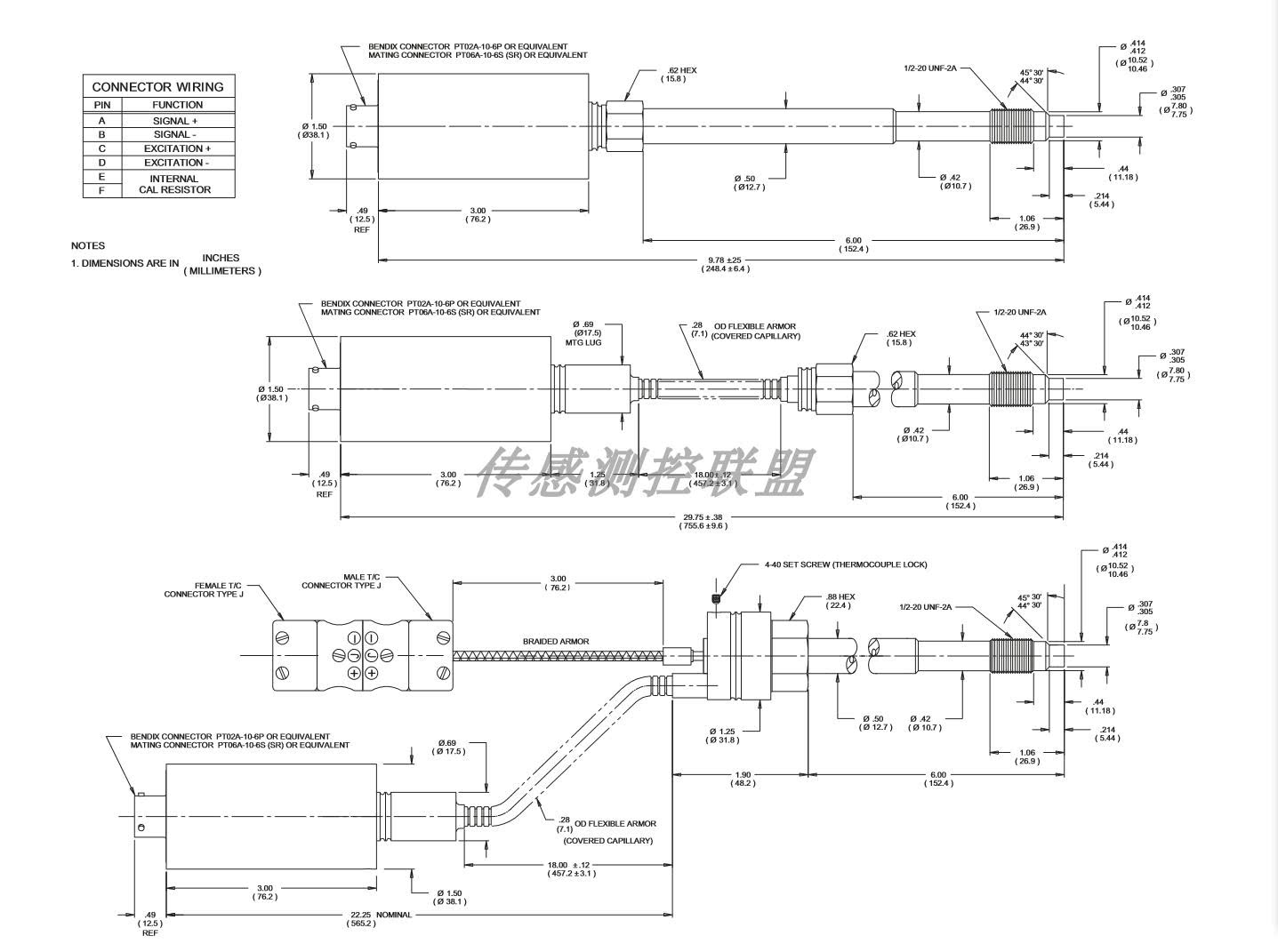

It has a standard sensor thread 1/2-20 UNF and is available in a variety of forms if required.
Technical specifications
Output: 3.33 mV/V ± 2.0%
Input voltage: 10 Vdc recommended, up to 12 Vdc
Accuracy: ±0.5% of full scale (including linearity, repeatability and hysteresis)
Repeatability accuracy: ±0.2% of full scale
Configuration: Wheatstone strain gauge bridge
Bridge resistance: input: minimum 345Ω; output: 350Ω ± 10%
Maximum overpressure: 2 times full scale or 35,000 psi (small value)
Zero balance: ±10% full scale Internal shorting check (R-Cal): 80% of full scale ±1% Insulation resistance: 1,000MΩ @ 50 Vdc
Temperature and mechanical characteristics
Maximum operating temperature of the diaphragm: 750 ° F (400 ° C)
Melt temperature affects zero drift: 25 psi / 100 °F typical (45 psi / 100 ° C)
Electrical appliance housing Operating temperature: 250°F (121°C) Temperature change affects zero point: ± 0.05% Full scale / °F maximum (± 0.10% full scale / °C maximum) Temperature influence sensitivity: ± 0.02% full scale / °F maximum ( ±0.04% of full scale / °C maximum)
Installation torque: up to 500 inch·lbs
Diaphragm: 15-5 PH SST substrate, Dymax® coating

Tình trạng sản phẩm:

Warranty period: 12 months from the date of shipment.
Orders will be shipped the same day or the next day. Large quantities of custom and special products need to be consulted.

DYNISCO UNIFLEX-DMS 7507731
DYNISCO MEI-6-M-B02C-1-5-D-000
DYNISCO BP420-1/2-9.5M-6
DYNISCO 1290-2-3
DYNISCO DYNA-4-1/2-3.5C-15/46
DYNISCO PT291S-3.5CK-4.8/60-C6H\E3CK-J
DYNISCO G860-310-20M
DYNISCO PT4624-10M-6/18
DYNISCO NP422-1/2-10MPA-23/45
DYNISCO PT462E-35MPA-15-18
DYNISCO PG541H-10M-12-G115
DYNISCO MDT462F-M18-7C-15/46-A
DYNISCO MDT460CAN-1/2-1M-15-HA51
DYNISCO G840E-844-7MPA
DYNISCO PT462E M14*1.5 ,50MPa 500MM
DYNISCO UPR700-1-0-3
DYNISCO DYMT-S-1/2-PT 100/4-15-32-G
DYNISCO S243-35MPA-6/30
DYNISCO TPT463E-1/2-3.5CK-12/18-TC6
DYNISCO PT460E-3.0M-12 3000PSI MV
DYNISCO MDA462-1/2-3.5C-15/46
DYNISCO G860-310-20M-K3
DYNISCO G861-100-SM
DYNISCO PT4626-70MPA-6/18
DYNISCO DYMT-S-1/2(F13)
DYNISCO PT4624-5M-12/36-B628-A
DYNISCO 2242SA00M20CEFFBCAZZ
DYNISCO PT462E-5M-6/18
DYNISCO PT4624-10M-6/18-B628-A
DYNISCO SJ600H-U4
DYNISCO SPX-2242EA00M14CEFFACAZZ
DYNISCO TP4624-35MPa-9/18
DYNISCO PT4624-6/30 0-3.5MPa 1/2-20UNF
DYNISCO PT 4624 M14*1.5
DYNISCO TPT4636-35Mpa-12/18-TC6
DYNISCO DYN1380-2-3 (STATUS 03AF
DYNISCO 2242SA00M20CEFFACAZZ
DYNISCO PG442R-35MPA/3.5CB-12/30
DYNISCO MODEL:1308-2-3
DYNISCO DYMT-S-M18-J-5-15-G-2M-A-F13
DYNISCO TPT463E-30M-6/18
DYNISCO PT4624-3.5CB-6/18-B171
DYNISCO NP462-1/2-20MPA-15/45CFS7
DYNISCO MDT462F-M18-5C-15/46
DYNISCO PT6421-5M-6/18
DYNISCO NP463-1/2-20MPA-23/45-K
DYNISCO PT462E-01M
DYNISCO PT46.24-7.5C-6/18
DYNISCO MDT462F-1/2-2C-15/46 0-200BAR
DYNISCO S243-3.5MPA-6/30
DYNISCO 4222SA00B21CEDDBAAZZ
DYNISCO UPR700-1-2-3
TPT463E-7.5M-6/18
TPT4624-1/2
MDT460F-1/2-7C-15
MDT420-1/2-5C-15-A
PT492-50MPA-15/46
PT463E-3M-6/18-RTD
TPT463E-10M-9/18
TPT432A-10M-6/18
PT412-10M-18
BP420-1/2-9.5M-6
MEI-6-M-B02C-1-5-D-000
EMT4222-1/2-2C-15/46,0-200BAR
DYN 1290 23000
MDT462L-1/2-305c 32/46
MDA462-1/2-3.5C-23/46-T80
MDA422-1/2-35-23/46
TPT4634-3,5CB-12/18-RPD
PG542H-10M-6/30-G115
PG541H-10M-12-G115
PT 4624 M14*1.5
TDT432F-1/2-5C-46/46-S137-A
MDA420-1/2-7C-15
S242-5C-6/30-RTD2
PT462E-7.5M-6/18
MDT462F-M18-35C-40/46A
DYNA-4-1M-15
NP462-3M-6/18
PT124B-210
MDT467F-1/2-3.5C
MDT422F-1/2-3.5-32/46
MDT462F-1/2-3.5C-32/46
TPT463E-50MPA-12/24- 1380-2-3
PT4624-5M-12/36-B628-A
PT462E-10MPA-6/18
2243SA25M21
PT4624-20MPA-6/18
MDA462-1/2-1.4M-15-46
PT4626-35MPA-6/18
PT492-3.5PA-32/46
PT460E-5M-6
PT460E-10M-6
PT462E-3M-6/18
PT462E-5M-6/18
PT462E-10M-6/18
TPT4636-10M-6/18
PT462E-10M-12/18
TPT463E-5M-6/18
TPT463E-10M-6/18
TPT463E-15M-6/18
PT422A-10M-6/18
TPT432A-10M-6/18
MDA420-1/2-7C-15
PT4626-35MPA-6/18
PT4624-1.5M-6/18-SIL2
PT4624-5M-6/18-SIL2
PT4624-10M-6/18-SIL2
TPT4634-3M-6/18-SIL2
TPT4634-5M-6/18-SIL2
TPT4634-10M-12/18-SIL2
PT4626-5M-6/18
PT4626-10M-6/18
TPT4636-7.5M-6/18
