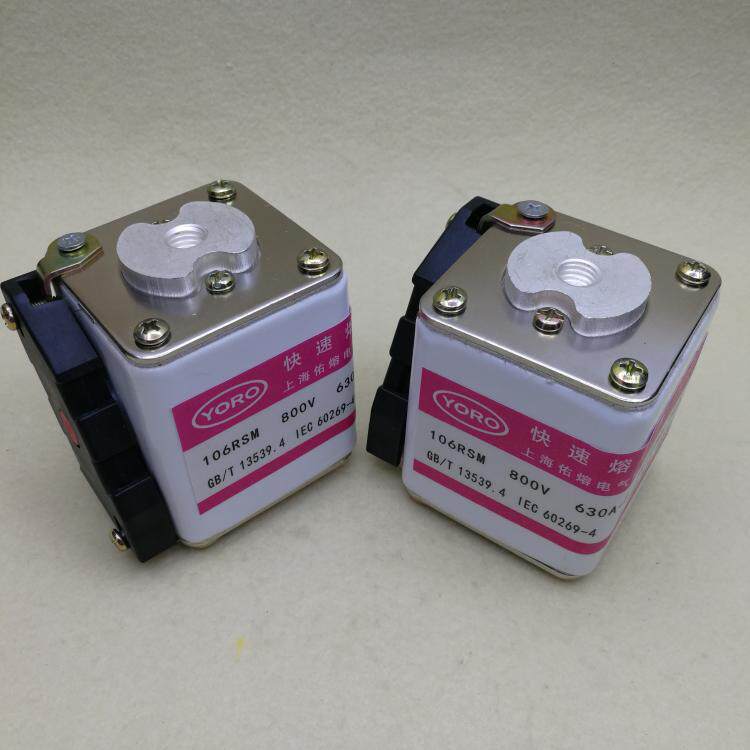

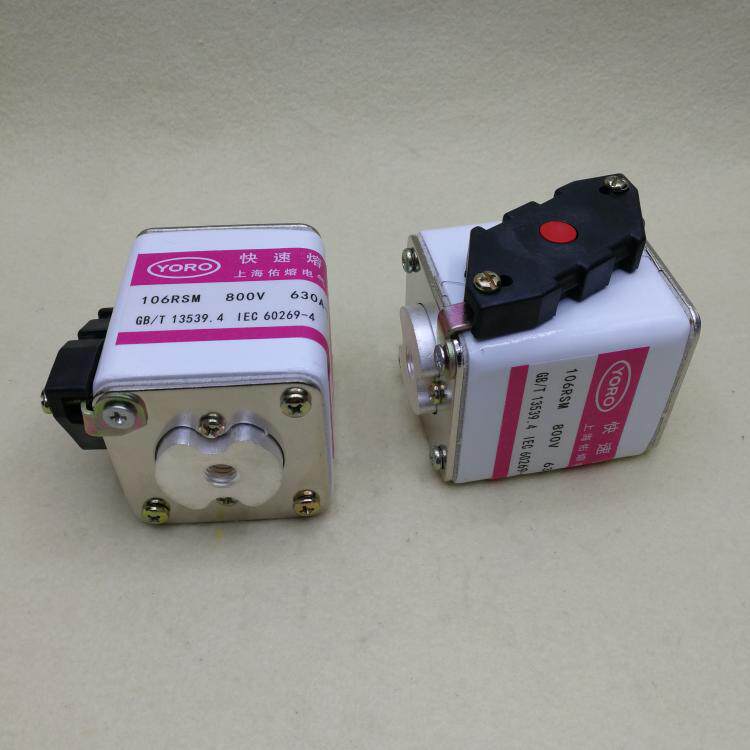

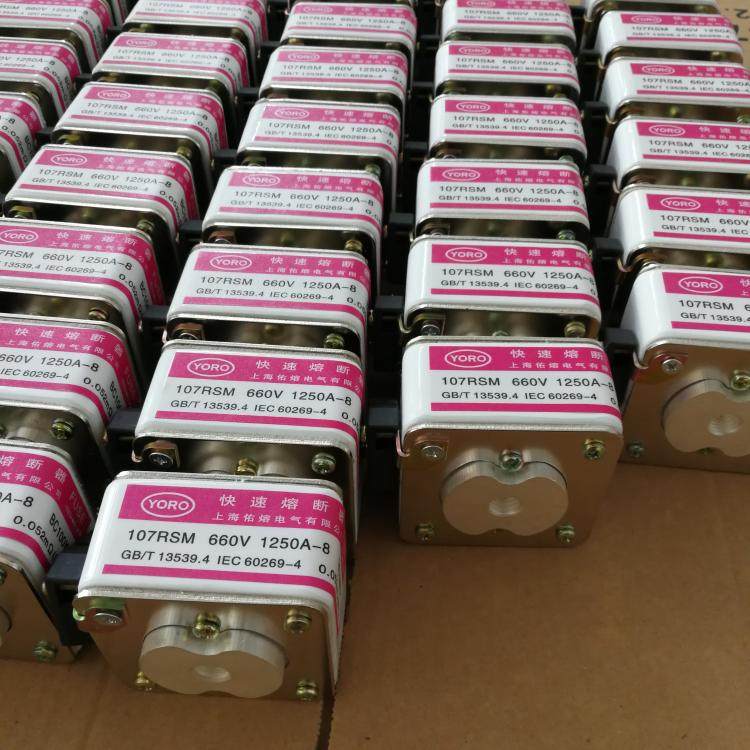

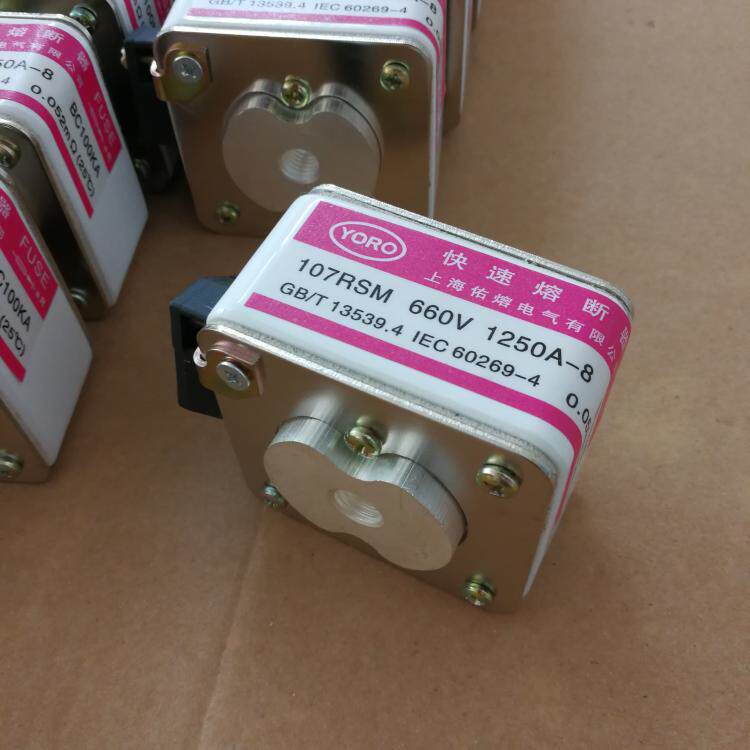

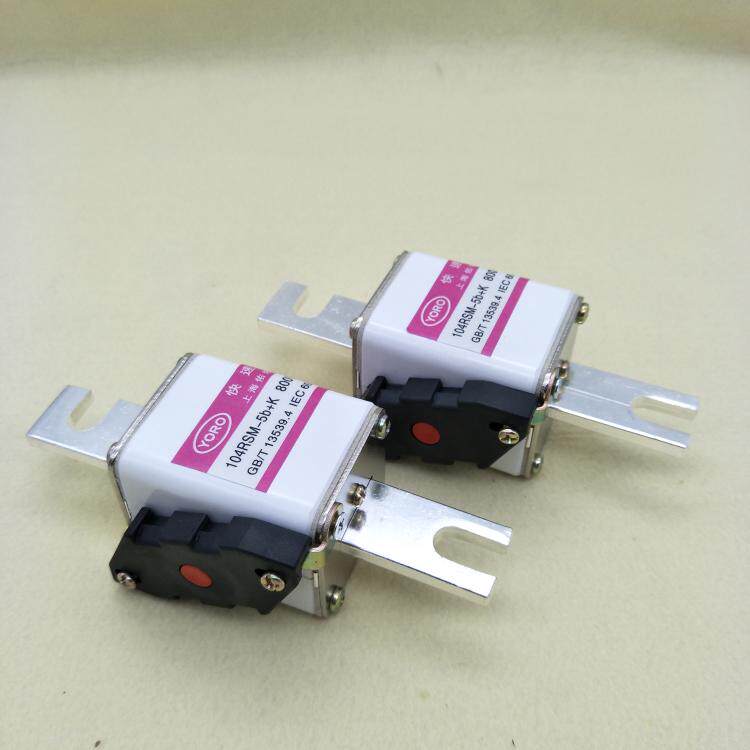

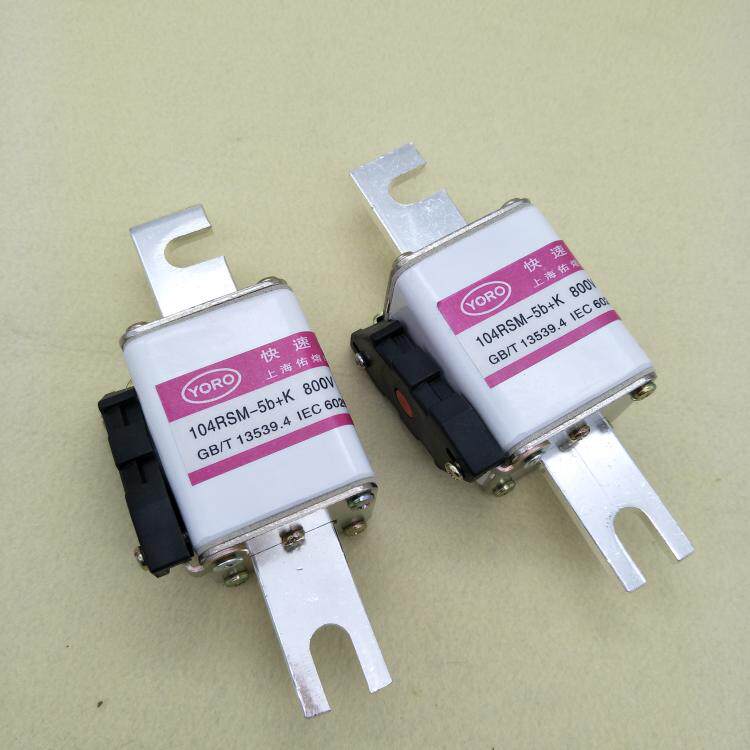

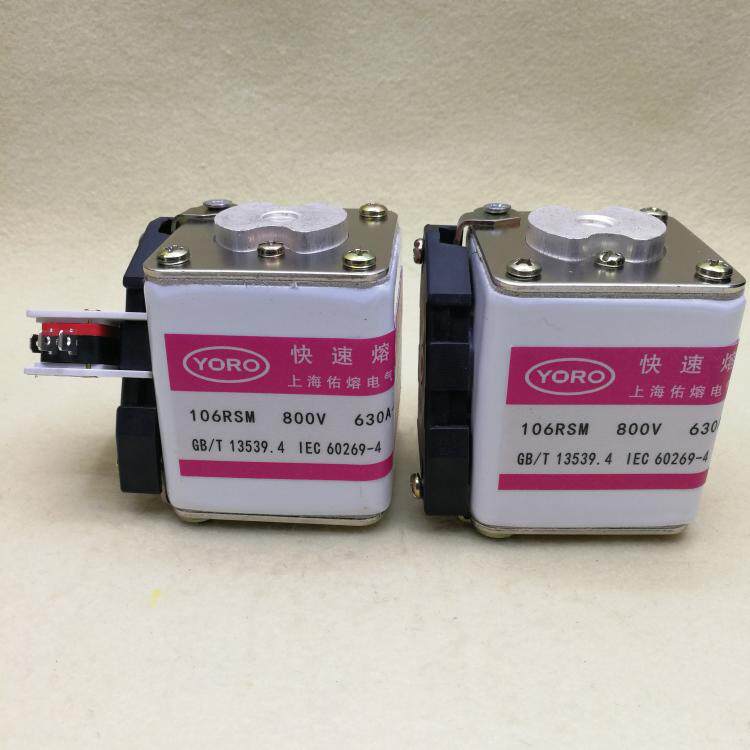

cầu chì sứ YORO 104RSM 105RSM 106RSM 107 RSM 500V 660V 1000V 400A 500A 630A 700A 750A 800A 900A 1000A 1100A 1250A 1500A 1600A 1800A 2000A

  • Đăng ngày 23-12-2021 03:42:05 PM - 482 Lượt xem
  • Mã sản phẩm: S003815
  • cầu chì sứ YORO 104RSM 105RSM 106RSM 107 RSM 500V 660V 1000V  400A 500A 630A 700A 750A 800A  900A 1000A 1100A 1250A 1500A 1600A 1800A 2000A

    Tình trạng sản phẩm:


    Fast fuse for semiconductor device protection

       → Product introduction

         This series of fast-acting fuses are suitable for short circuits of AC 50HZ, rated AC voltage 250V-3000V, and rated current 10A-16000A, as a complete set of rectifier diodes, thyristors and other semiconductor devices, short circuits and certain overloads that do not allow overcurrent Protect.

      This series of fast fuses are made of pure silver sheets. The variable cross-section melt is encapsulated in a fuse tube made of high-strength porcelain; the fuse tube is filled with chemically treated high-purity quartz sand as the arc extinguishing medium; the fuse can be brought Indicator or striker, when the fuse is blown, the indicator/ striker will act immediately, showing that the fuse has been blown (indicator) and pushing the micro switch (strike) to send out various signals or automatically switch the circuit. This series of fast fuse has the characteristics of large rated capacity, high breaking capacity, fast fusing speed, obvious current limiting characteristics, obvious indication, safety and reliability.

      This series of fuse-links complies with national standards GB13539.1, GB/T13539.4 and International Electrotechnical Commission standards IEC60269-1, IEC60269-4.


    →Normal working conditions
    1. The altitude of the installation site does not exceed 2000M;
    2. The upper limit of ambient air temperature does not exceed +40℃, and the lower limit does not fall below -5℃. Under such conditions, condensation due to temperature changes is not allowed of;

    3. Install in a non-explosive medium, where there is no gas or conductive dust
    that can corrode metal and damage insulation; 4. The product can be installed vertically, horizontally or inclinedly, and there is no significant vibration and impact in the workplace;
    5. The product When the rated current of the product is greater than 1250A, and it is used for a long time above 70% of the rated current, it must be connected to a water-cooled bus or forced air-cooled; Rong Electric Co., Ltd.
