Van điện từ ASCO SCG353G044 220V SCG353G044 24V SCG353G047 220V SCG353G047 24V SCG353G050 220V SCG353G050 24V SCG353G051 220V SCG353G051 24V SCR353G060 220V SCR353G060 24V
Tình trạng sản phẩm:

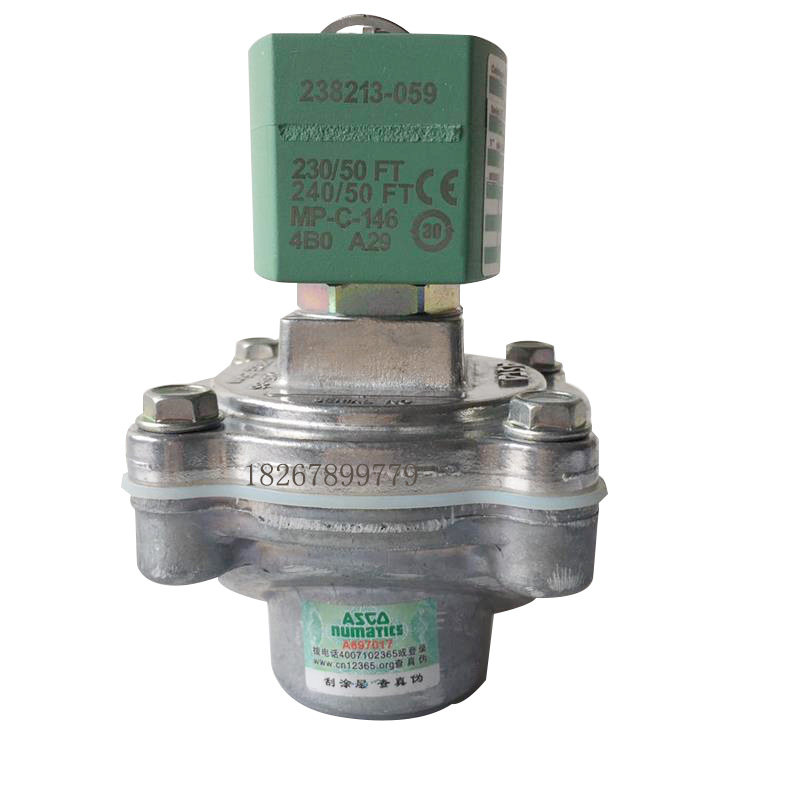

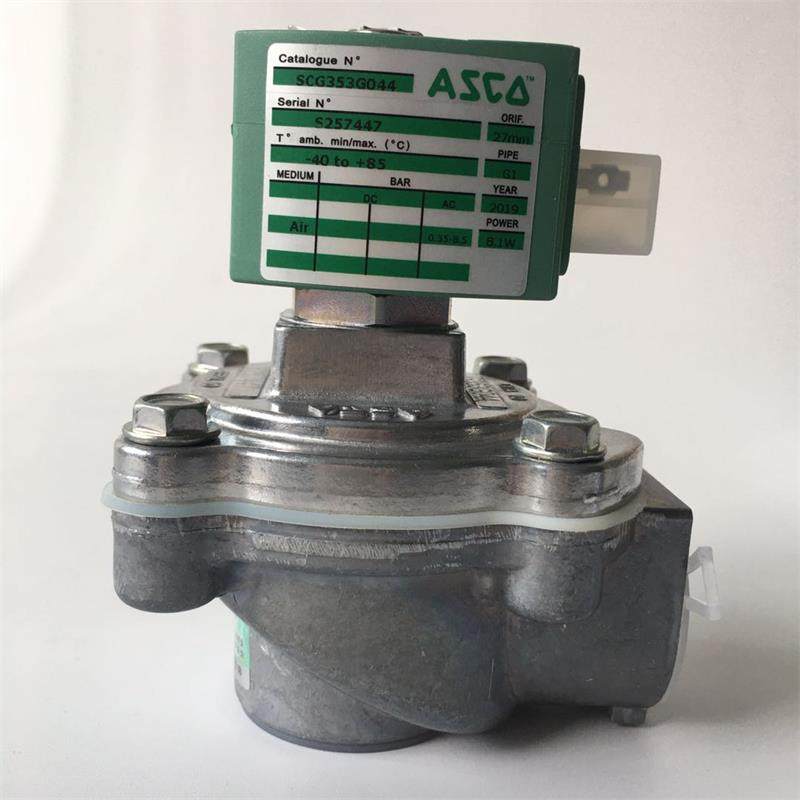

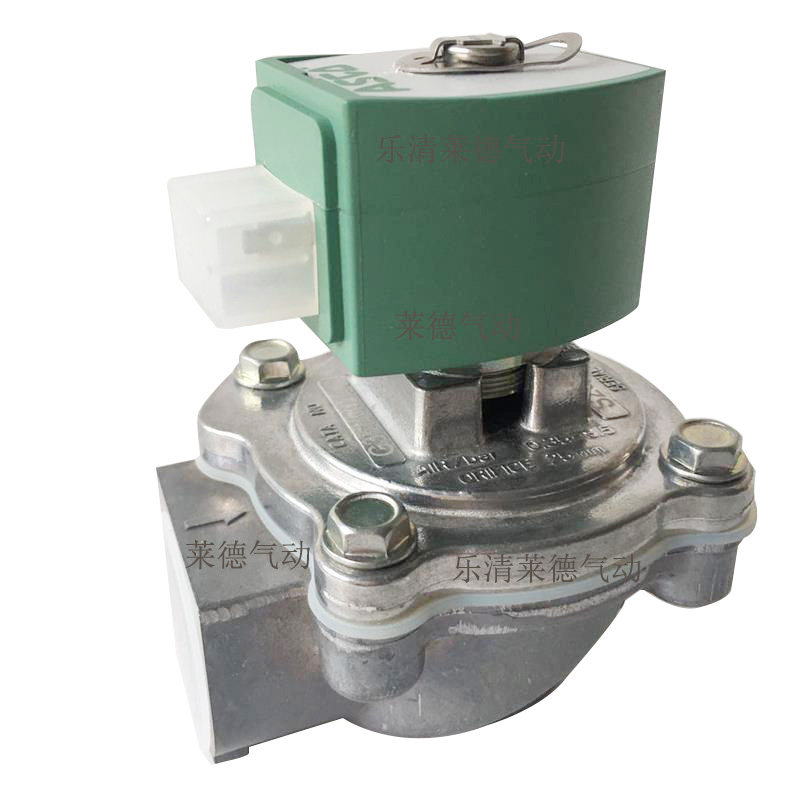

ASCO genuine right-angle electromagnetic pulse valve SCG353A G044 047 05110228732 diaphragm valve
Functional indicators of American ASCO electromagnetic pulse valve
The American ASCO electromagnetic pulse valve is imported from abroad (also known as the diaphragm valve). It is the compressed air "switch" of the pulse bag filter cleaning and injection system, which is controlled by the output signal of the pulse injection controller, and the filter bag is row by row (room) Inject dust to keep the resistance of the dust collector within the set range to ensure the processing capacity and dust collection efficiency of the dust collector.,
Technical index:
Working pressure: 0.4～0.7, ambient temperature: -10～55(℃), use medium: clean air, diaphragm life: more than 1 million blows.
Connection thread: ZG1",, length: 110mm,, width: 85mm,, height: 125mm,, weight: 0.75kg,
Electromagnetic pulse valve:
The input end (IN) of the electromagnetic pulse valve is connected with the metal pipe of the gas cylinder, and the output end is connected with the blowing pipe of the dust box, and the connecting threads are filled with tetrafluoroethylene raw material tape for tight sealing.
The main purpose of the dust collector is to separate particles and fine dust in the industrial waste gas, and turn waste into treasure for recycling. The dust collector produced is of high quality and complete specifications, and all indicators meet or exceed national standards. The main products are: pulse cloth bags Dust collectors, electrostatic precipitators, cyclones, wet dust collectors, stand-alone dust collectors and various accessories such as skeletons, bags, electromagnetic pulse valves, controllers, etc. Our products are widely used in metallurgy, mining, building materials, casting, In the chemical, tobacco, asphalt, cement, machinery, grain, mechanical processing, boiler and other industries, it has realized the one-stop service of design-manufacturing-installation-commissioning-technical training.
The diaphragm divides the electromagnetic pulse valve into two front and rear air chambers. When the clean compressed air is connected, the compressed air passes through the throttle hole and enters the rear air chamber. At this time, the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve. The solenoid valve is in the closed state, and the pulse controller outputs a signal to move the solenoid pulse valve armature. The air chamber vent behind the valve opens, and the rear air chamber loses pressure quickly, causing the diaphragm to move backward, and the compressed air is sprayed through the valve outlet. When the solenoid valve is in the open state, blowing starts, the output signal of the pulse controller disappears, the solenoid pulse valve armature is reset, the vent of the rear chamber is closed, and the pressure in the rear chamber rises to make the diaphragm close to the outlet of the valve. The solenoid pulse valve is in the closed state. , The spraying stops, and the length of the spraying time is controlled by the controller. Workpiece principle:
The diaphragm divides the American ASCO electromagnetic pulse valve into two front and rear air chambers. When the clean compressed air is connected, the compressed air passes through the throttle hole and enters the rear air chamber.
At this time, the pressure of the rear air chamber will close the diaphragm against the air outlet of the valve, the solenoid valve is in the closed state, and the pulse controller outputs a signal to move the solenoid pulse valve armature. The air chamber vent behind the valve opens, and the rear air chamber quickly loses pressure. , The diaphragm is moved back, compressed air is sprayed through the outlet of the valve, the electromagnetic pulse valve is in the open state, and the injection starts, the pulse controller output signal disappears, the electromagnetic pulse valve armature is reset, the vent of the rear air chamber is closed, and the rear air chamber The pressure rise makes the diaphragm close to the air outlet of the valve and the electromagnetic pulse valve is closed, the injection stops, and the length of the injection time is controlled by the controller.
Functional indicators of American ASCO electromagnetic pulse valve
The American ASCO electromagnetic pulse valve is imported from abroad (also known as the diaphragm valve). It is the compressed air "switch" of the pulse bag filter cleaning and injection system, which is controlled by the output signal of the pulse injection controller, and the filter bag is row by row (room) Inject dust to keep the resistance of the dust collector within the set range to ensure the processing capacity and dust collection efficiency of the dust collector.,
Technical index:
Working pressure: 0.4～0.7, ambient temperature: -10～55(℃), use medium: clean air, diaphragm life: more than 1 million blows.
Connection thread: ZG1",, length: 110mm,, width: 85mm,, height: 125mm,, weight: 0.75kg,
Electromagnetic pulse valve:
The input end (IN) of the electromagnetic pulse valve is connected with the metal pipe of the gas cylinder, and the output end is connected with the blowing pipe of the dust box, and the connecting threads are filled with tetrafluoroethylene raw material tape for tight sealing.
The main purpose of the dust collector is to separate particles and fine dust in the industrial waste gas, and turn waste into treasure for recycling. The dust collector produced is of high quality and complete specifications, and all indicators meet or exceed national standards. The main products are: pulse cloth bags Dust collectors, electrostatic precipitators, cyclones, wet dust collectors, stand-alone dust collectors and various accessories such as skeletons, bags, electromagnetic pulse valves, controllers, etc. Our products are widely used in metallurgy, mining, building materials, casting, In the chemical, tobacco, asphalt, cement, machinery, grain, mechanical processing, boiler and other industries, it has realized the one-stop service of design-manufacturing-installation-commissioning-technical training.
The diaphragm divides the electromagnetic pulse valve into two front and rear air chambers. When the clean compressed air is connected, the compressed air passes through the throttle hole and enters the rear air chamber. At this time, the pressure of the rear air chamber makes the diaphragm close to the air outlet of the valve. The solenoid valve is in the closed state, and the pulse controller outputs a signal to move the solenoid pulse valve armature. The air chamber vent behind the valve opens, and the rear air chamber loses pressure quickly, causing the diaphragm to move backward, and the compressed air is sprayed through the valve outlet. When the solenoid valve is in the open state, blowing starts, the output signal of the pulse controller disappears, the solenoid pulse valve armature is reset, the vent of the rear chamber is closed, and the pressure in the rear chamber rises to make the diaphragm close to the outlet of the valve. The solenoid pulse valve is in the closed state. , The spraying stops, and the length of the spraying time is controlled by the controller. Workpiece principle:
The diaphragm divides the American ASCO electromagnetic pulse valve into two front and rear air chambers. When the clean compressed air is connected, the compressed air passes through the throttle hole and enters the rear air chamber.
At this time, the pressure of the rear air chamber will close the diaphragm against the air outlet of the valve, the solenoid valve is in the closed state, and the pulse controller outputs a signal to move the solenoid pulse valve armature. The air chamber vent behind the valve opens, and the rear air chamber quickly loses pressure. , The diaphragm is moved back, compressed air is sprayed through the outlet of the valve, the electromagnetic pulse valve is in the open state, and the injection starts, the pulse controller output signal disappears, the electromagnetic pulse valve armature is reset, the vent of the rear air chamber is closed, and the rear air chamber The pressure rise makes the diaphragm close to the air outlet of the valve and the electromagnetic pulse valve is closed, the injection stops, and the length of the injection time is controlled by the controller.
